Radio/Stereo: Testing and Inspection





ACTIVE NOISE CONTROL UNIT

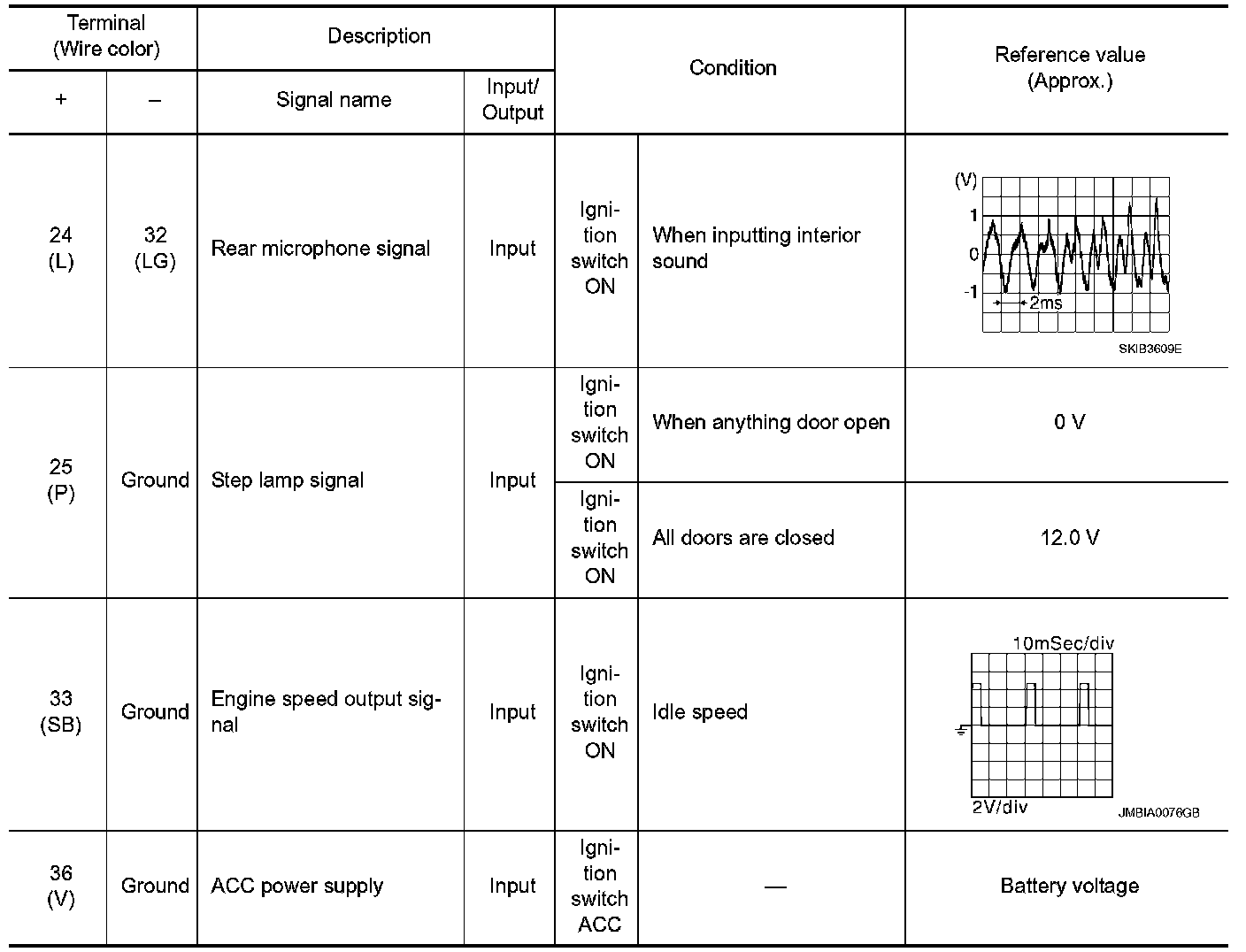

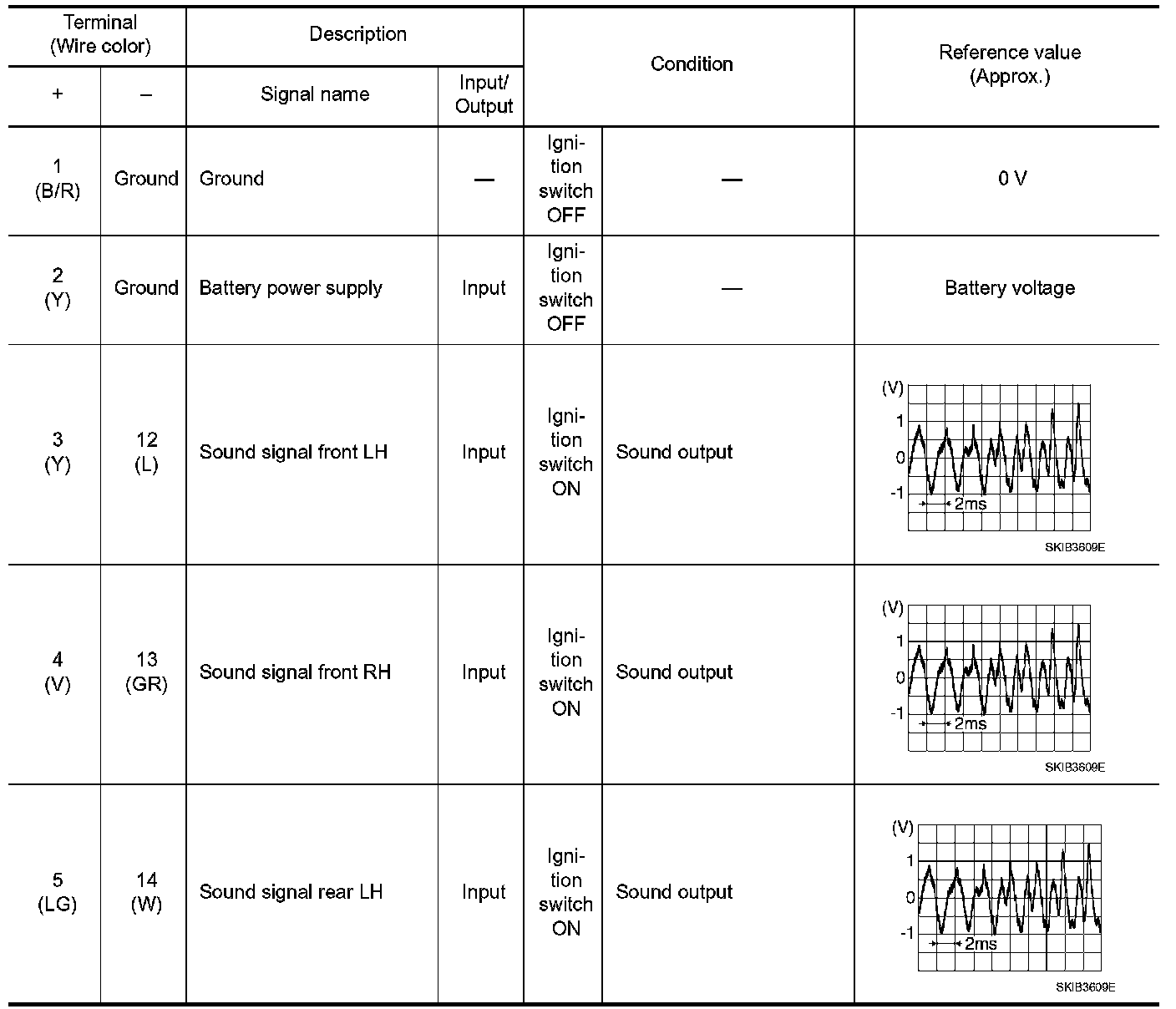

Reference Value

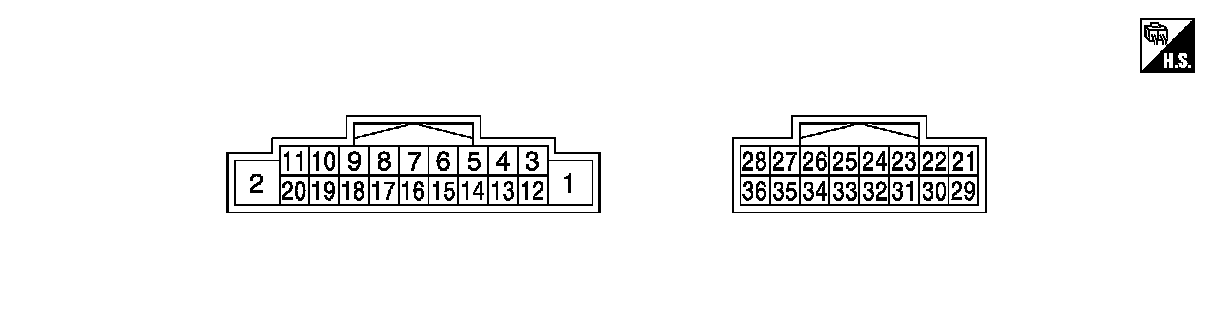

TERMINAL LAYOUT






PHYSICAL VALUES
