Engine Control Harness





HARNESS LAYOUT


Engine Control Harness


VQ37VHR

Engine Compartment






Passenger Compartment






VK56VD

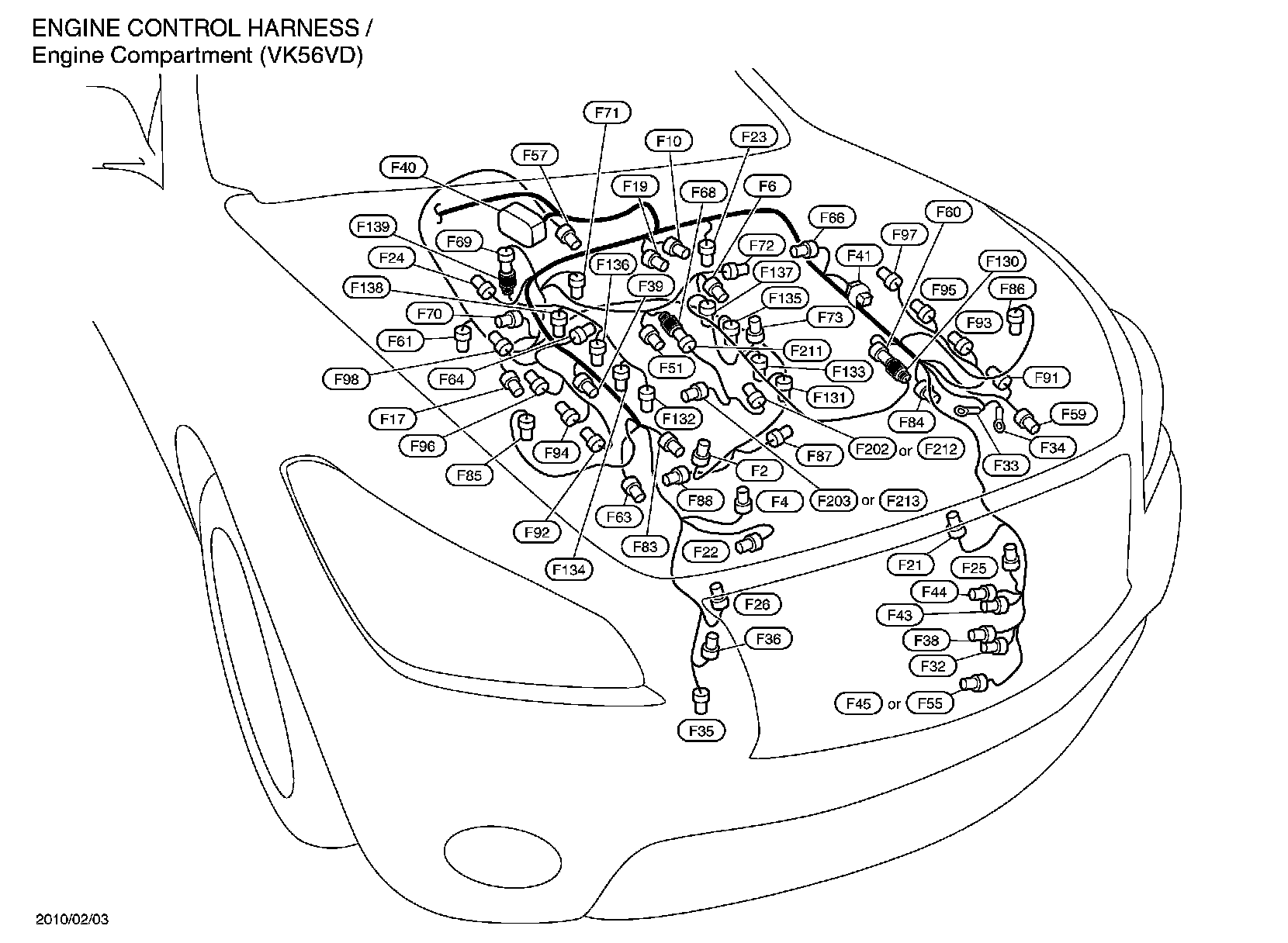

Engine Compartment

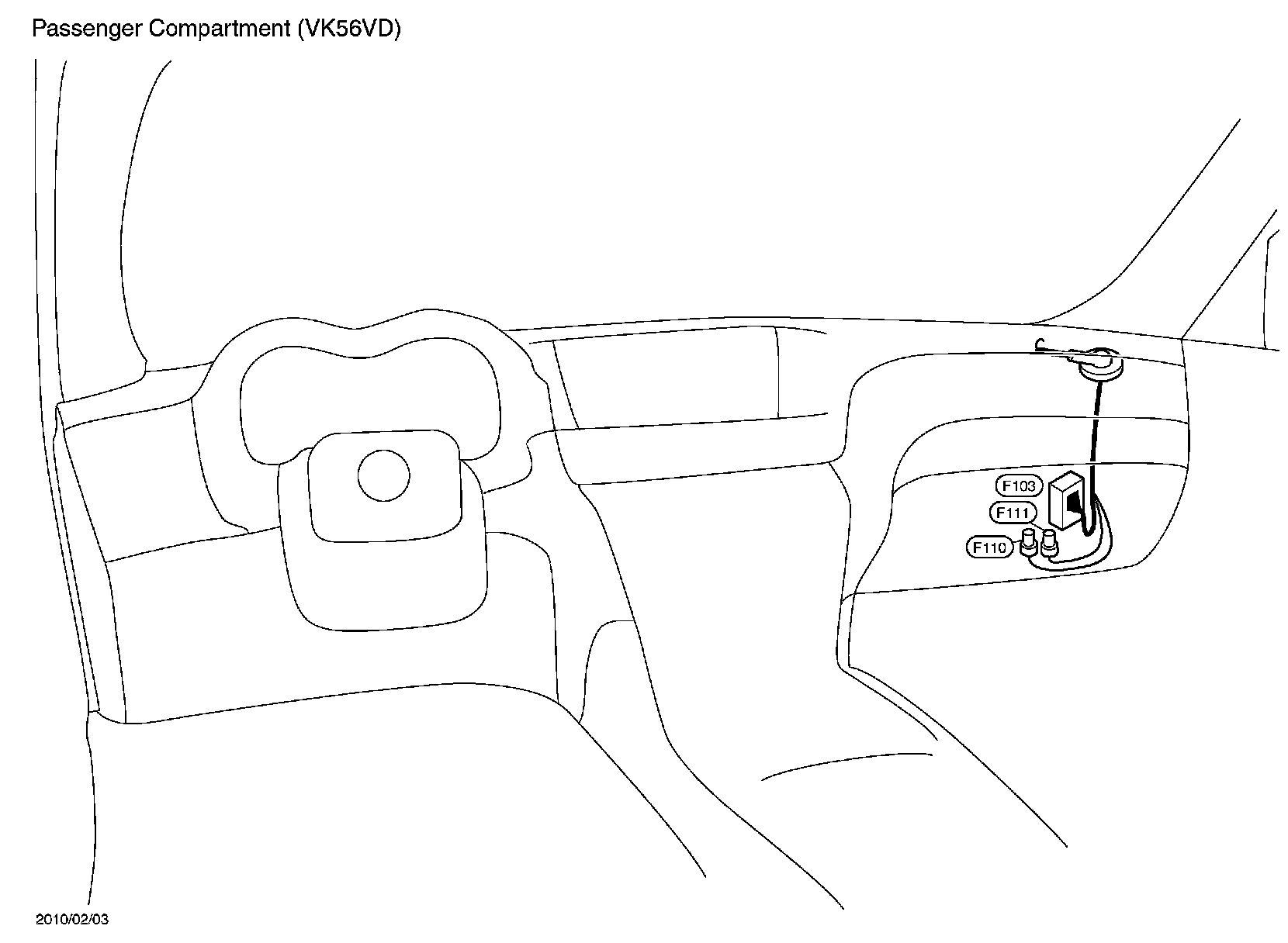

Passenger Compartment
