Cylinder Head





SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Head


CYLINDER HEAD






VALVE DIMENSIONS

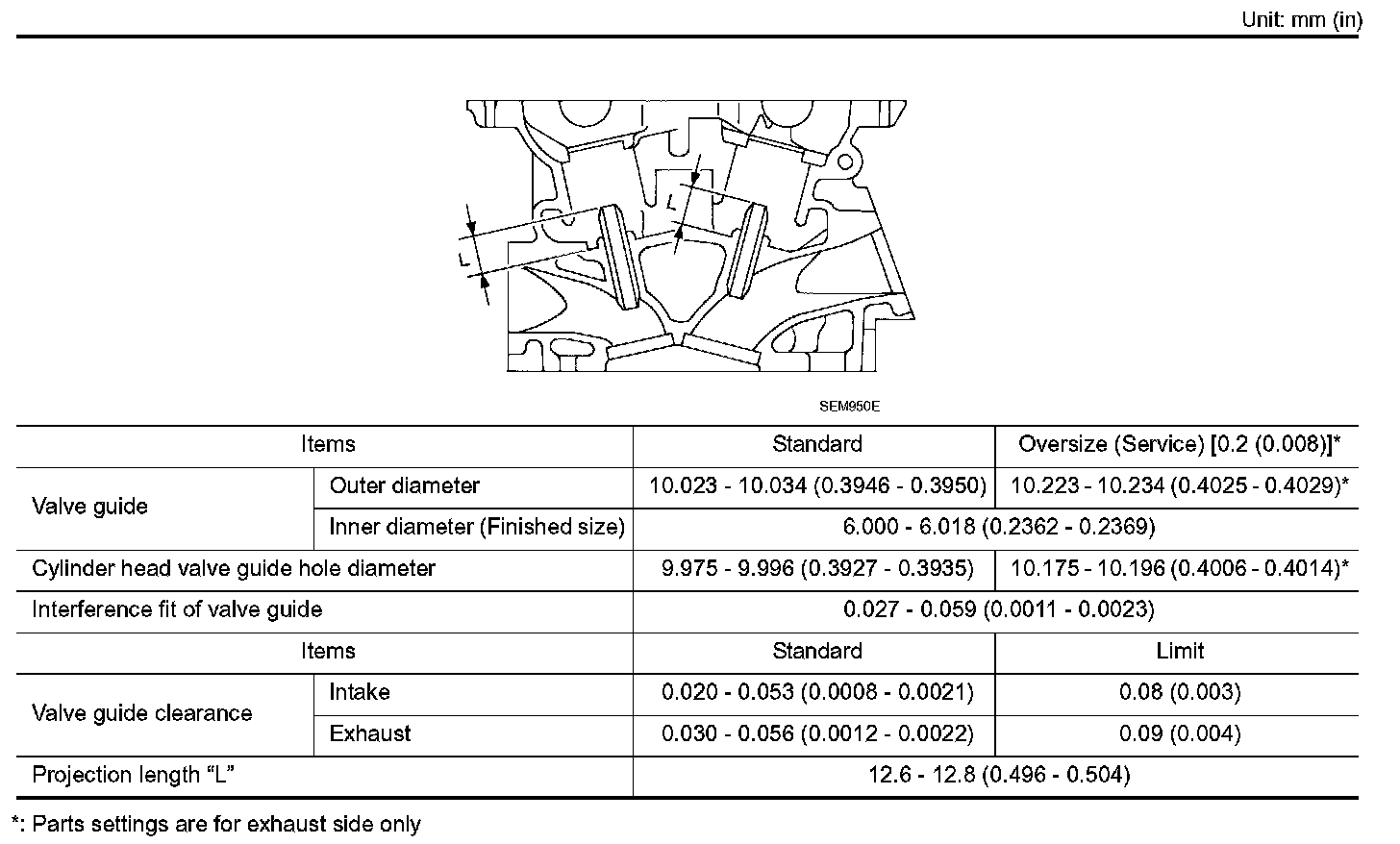

VALVE GUIDE







VALVE SEAT

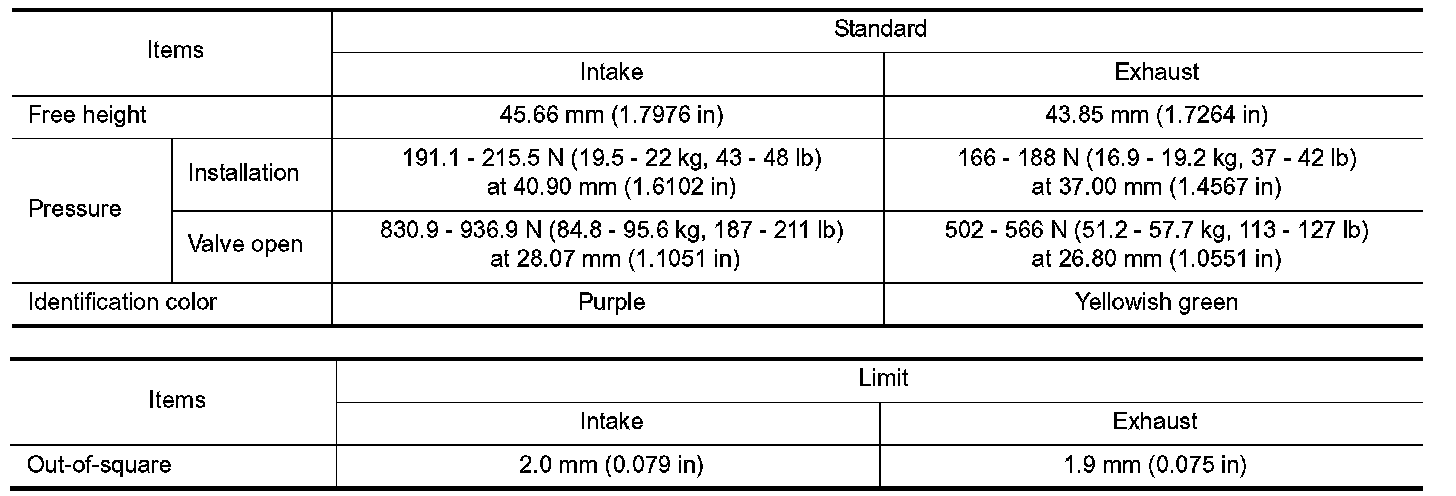

VALVE SPRING
