Crankshaft Main Bearing

SERVICE DATA AND SPECIFICATIONS (SDS)

Main Bearing

MAIN BEARING





UNDERSIZE





MAIN BEARING OIL CLEARANCE

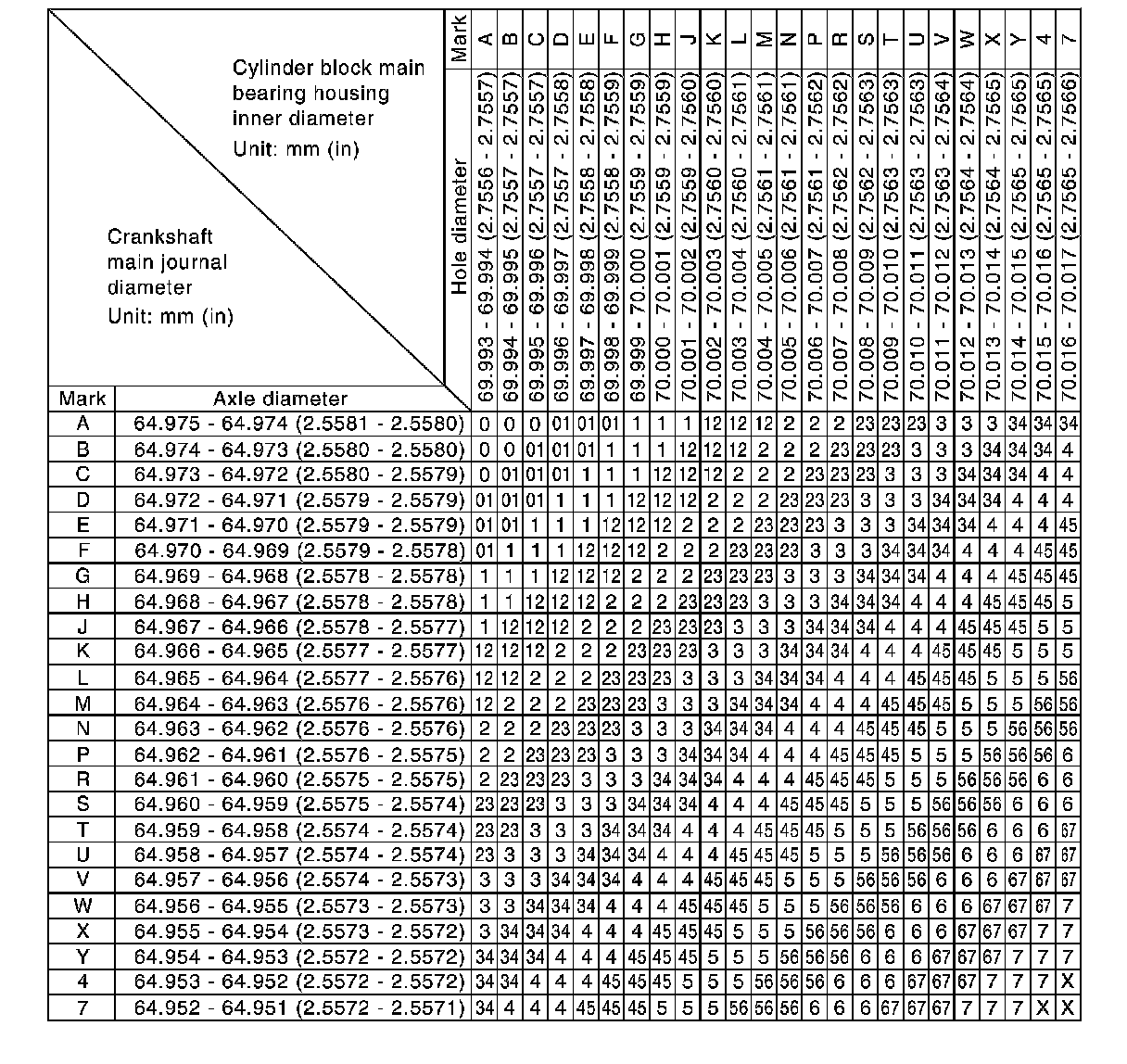

MAIN BEARING SELECTION TABLE

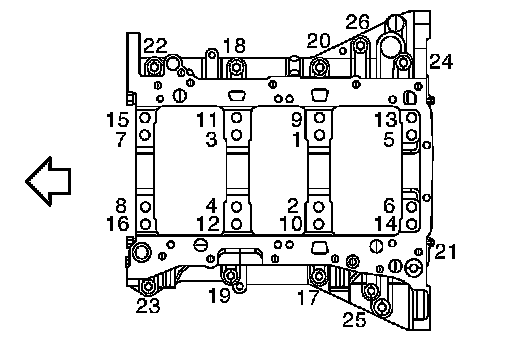

LOWER CYLINDER BLOCK





Tighten bolts (No. 17 to 26) 25.0 Nm (2.6 kg-m, 18 ft-lb)

Repeat above step





Tighten bolts (No. 1 to 16) 35.3 Nm (3.6 kg-m, 26 ft-lb)

Turn bolts (No. 1 to 16) 90 degrees
