Power Mirror Switch: Service and Repair

DOOR MIRROR REMOTE CONTROL SWITCH


OPEN/CLOSE SWITCH OPEN/CLOSE SWITCH : Component Inspection

1.CHECK OPEN/CLOSE SWITCH
1. Turn ignition switch OFF.
2. Disconnect power window main switch (door mirror remote control switch) connector.

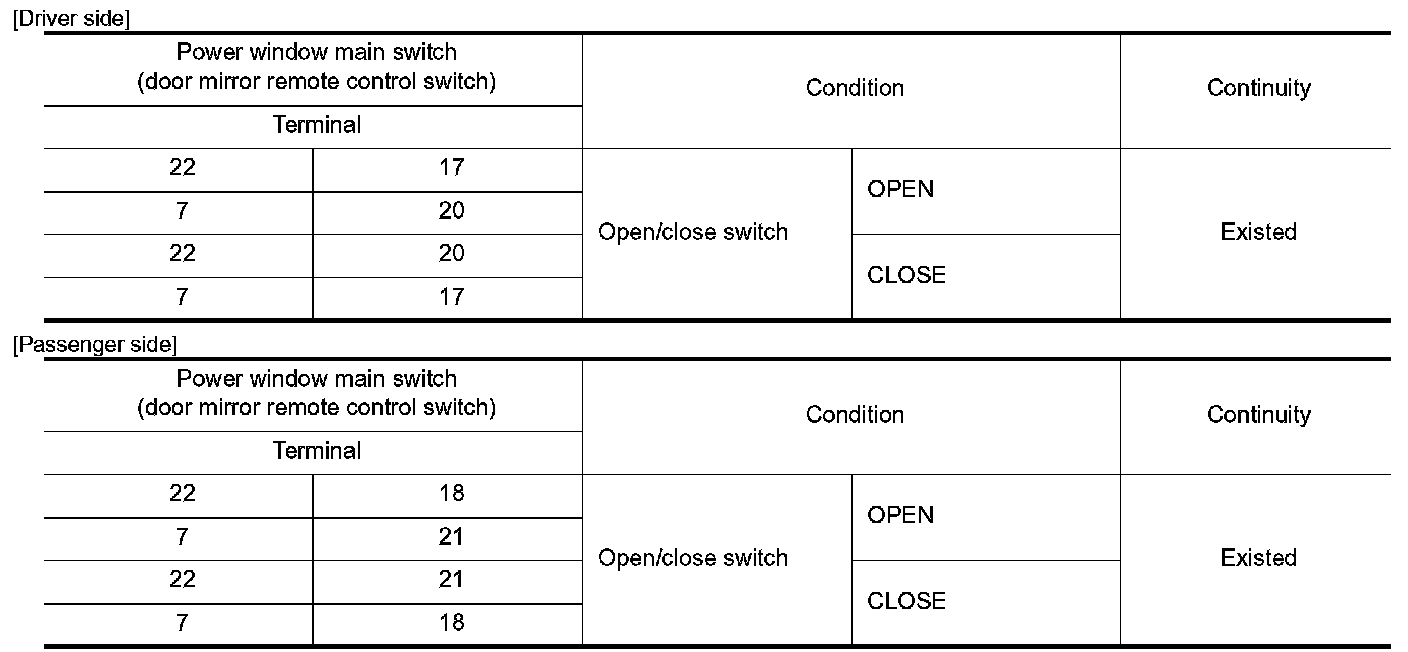

3. Check continuity between power window main switch (door mirror remote control switch) terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace power window main switch (door mirror remote control switch). Front Door Finisher, "FRONT
DOOR FINISHER : Removal and Installation".
