P1715

P1715 INPUT SPEED SENSOR





Description
ECM receives input speed sensor signal from TCM by the CAN communication line. ECM uses this signal for engine control.




DTC Logic

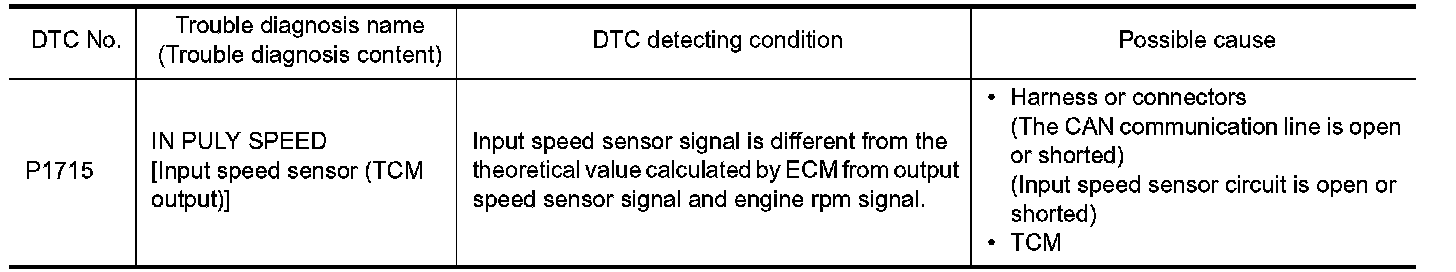

DTC DETECTION LOGIC

NOTE:
- If DTC P1715 is displayed with DTC UXXXX, perform the trouble diagnosis for DTC UXXXX.
- If DTC P1715 is displayed with DTC P0335, perform the trouble diagnosis for DTC P0335. P0335.
- If DTC P1715 is displayed with DTC P0340, perform the trouble diagnosis for DTC P0340. P0340.
- If DTC P1715 is displayed with DTC P0605, perform the trouble diagnosis for DTC P0605. P0605.
- If DTC P1715 is displayed with DTC P0607, perform the trouble diagnosis for DTC P0607. P0607.









Diagnosis Procedure
1.CHECK DTC WITH TCM
Check DTC with TCM. Scan Tool Testing and Procedures.
Is the inspection result normal?
YES - GO TO 2.
NO - Perform Diagnosis Procedure corresponding to DTC indicated.
2.REPLACE TCM
Replace TCM.
- INSPECTION END
