P2118

P1236, P2118 THROTTLE CONTROL MOTOR





DTC Logic

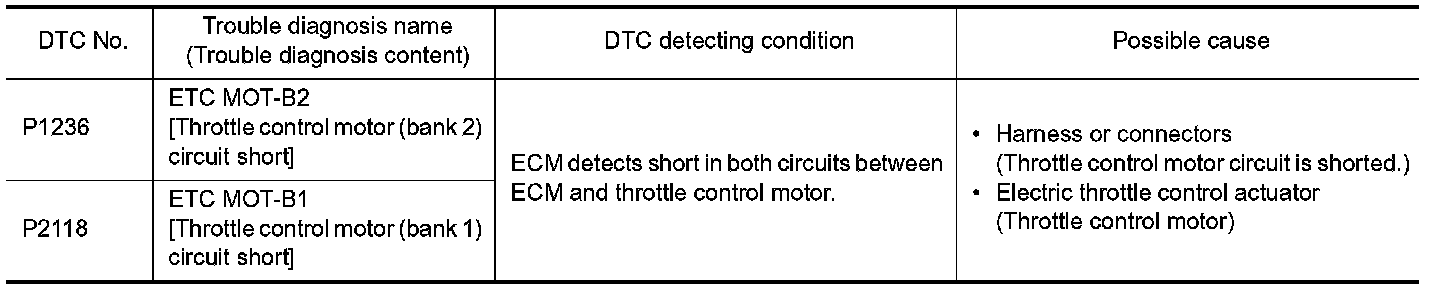

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
Is DTC detected?
YES - Proceed to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect electric throttle control actuator harness connector.
2. Disconnect ECM harness connector.

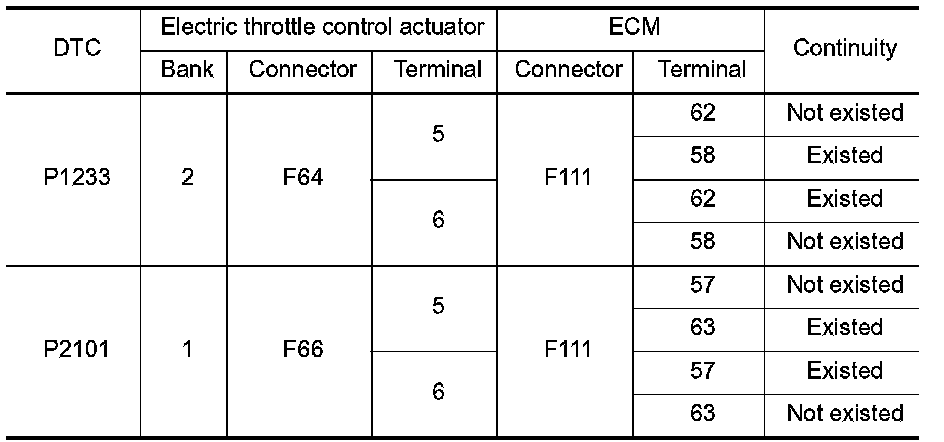

3. Check the continuity between electric throttle control actuator harness connector and ECM harness connector.





4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace malfunctioning part.
2.CHECK THROTTLE CONTROL MOTOR
P1233.
Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 4.
3.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness or connectors.
4.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
Replace malfunctioning electric throttle control actuator. Removal And Installation.
- INSPECTION END




Component Inspection (Electric Throttle Control Motor)
1.CHECK THROTTLE CONTROL MOTOR
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.

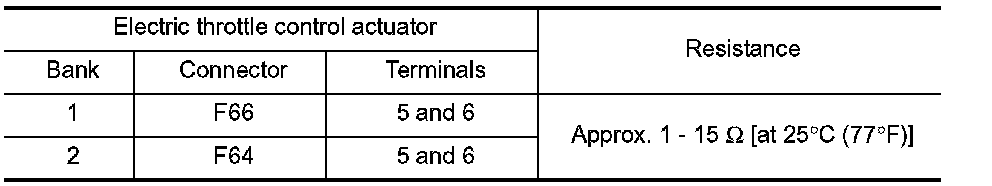

3. Check resistance between electric throttle control actuator terminals as per the following.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
Replace malfunctioning electric throttle control actuator. Removal And Installation.
- INSPECTION END
