U1001

U1001 CAN COMM CIRCUIT





DTC Logic

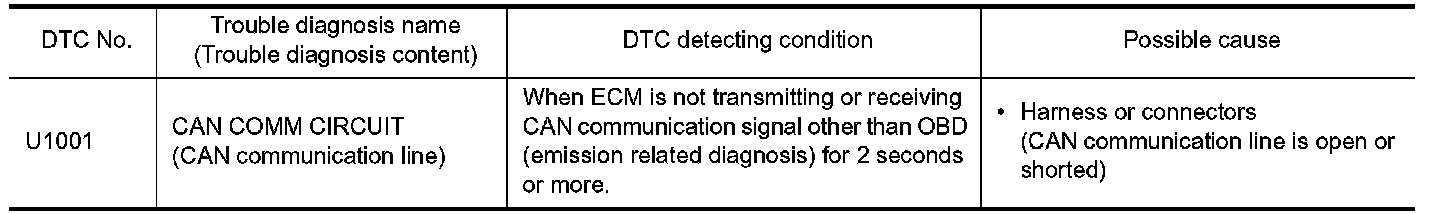

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES - Proceed to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
Perform the trouble diagnosis for CAN communication system. Trouble Diagnosis Flow Chart.
