Crankshaft Main Bearing

SERVICE DATA AND SPECIFICATIONS (SDS)

Main Bearing

MAIN BEARING





UNDERSIZE





MAIN BEARING OIL CLEARANCE

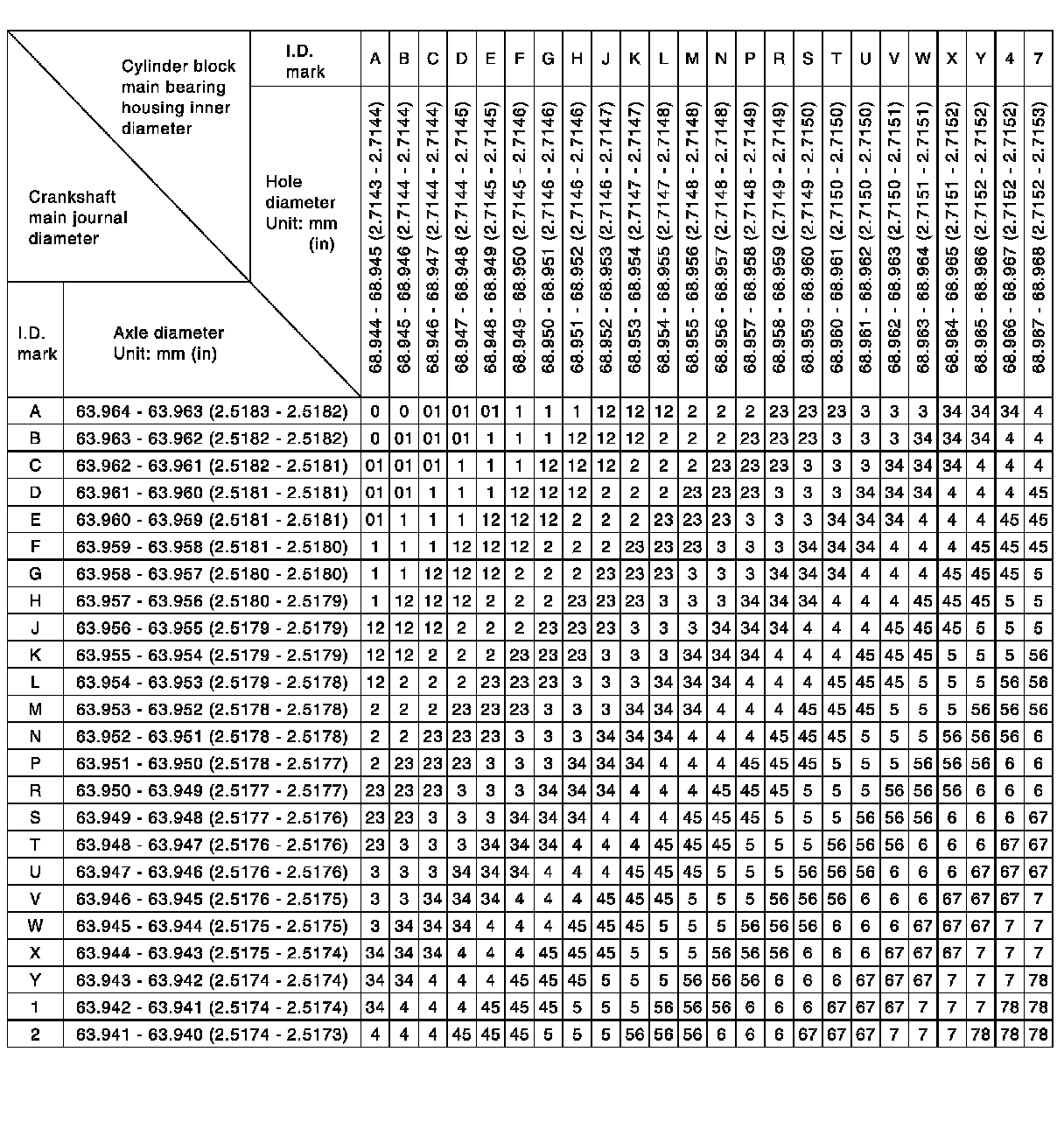

MAIN BEARING SELECTION TABLE (No. 1 and 5 Journal)

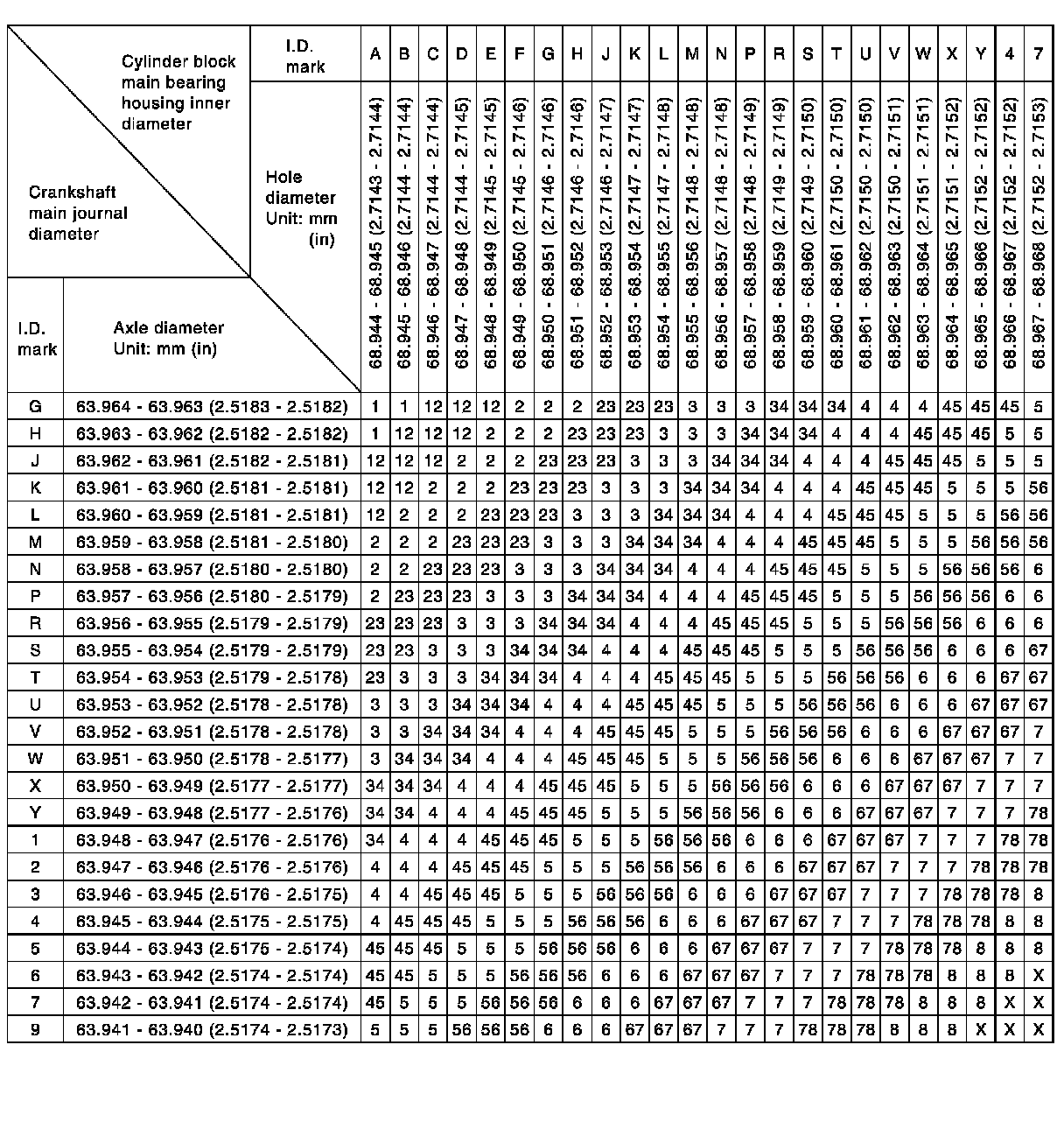

MAIN BEARING SELECTION TABLE (No. 2, 3 and 4 Journal)





MAIN BEARING CAPS





Tighten all bolts (No. 1 - 30) temporarily
Tighten bolts (M12) 1 - 10 53.9 Nm (5.5 kg-m, 40 ft-lb)
Tighten bolts (M9) 11 - 20 19.6 Nm (2.0 kg-m, 14 ft-lb)
Tighten bolts (M12) 1 - 10 90 degrees
Tighten bolts (M9) 11 - 20 90 degrees
Tighten side bolts (M10) 21 - 30 49.0 Nm (5.0 kg-m, 36 ft-lb)
