Removal and Installation

REAR SEAT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1.Remove the seat cushion.

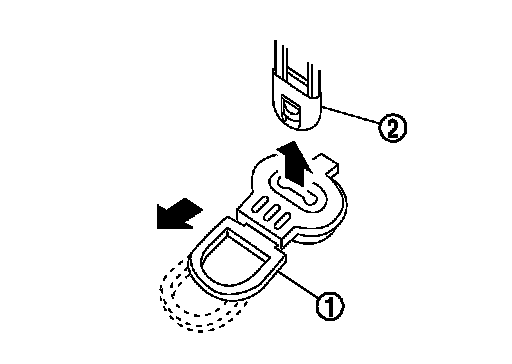

- Pull the lock lever (1) at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the wire (2) from the seat cushion hook. Then pull the seat cushion forward to remove.
- Remove the seat cushion from the vehicle.
2.Remove the seatback.
- Remove the nuts under seatback.
- Lift up seatback from underneath, and then remove seatback from seatback hook that is fixed to the vehicle.
- Remove the seatback from the vehicle.
3.Remove the armrest assembly.
- Remove the fastener.
- Remove the armrest mounting bolts.
- Remove the clip.
- Remove the armrest assembly from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
