Door Harness




HARNESS LAYOUT

Door Harness

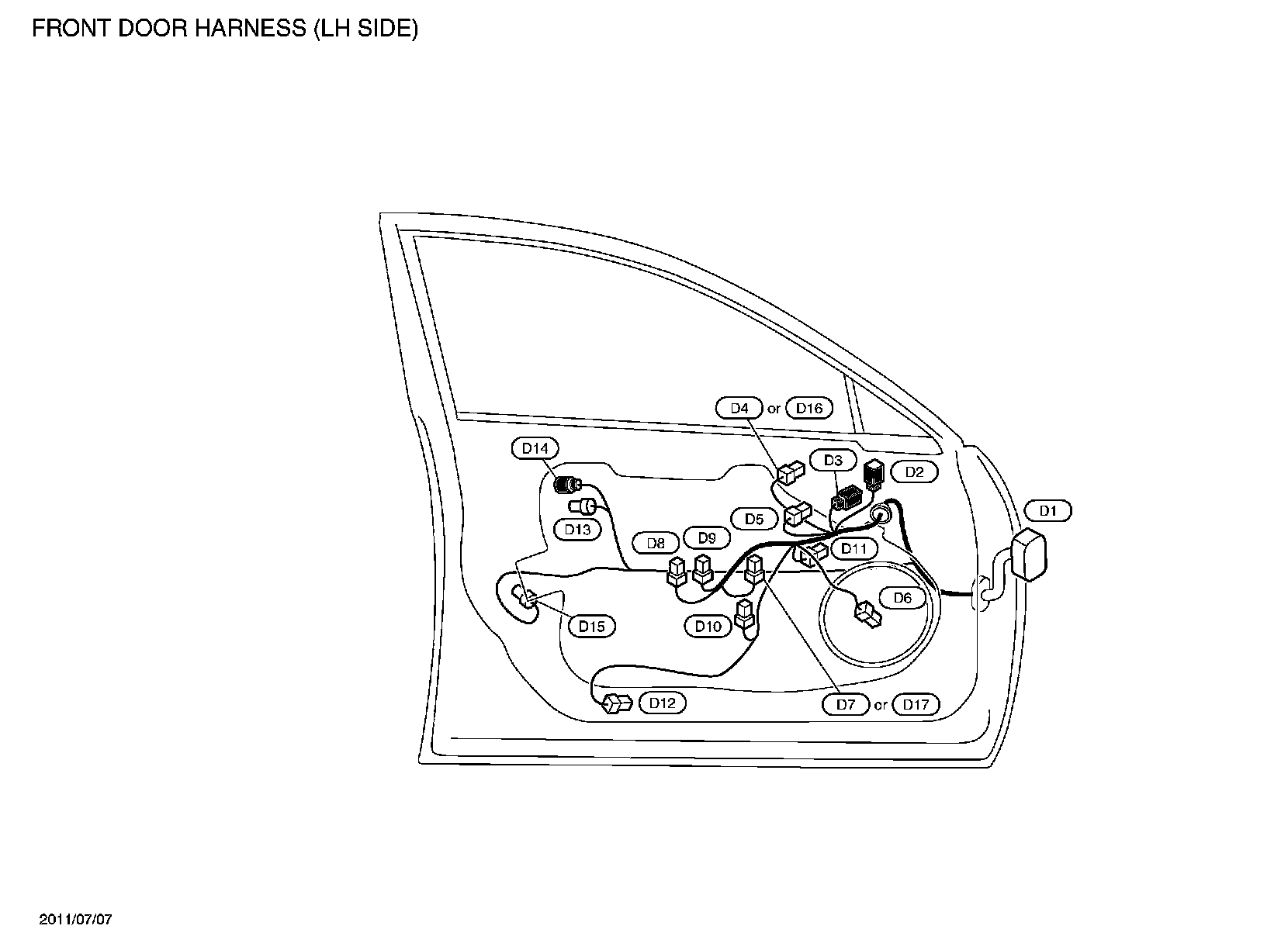

FRONT DOOR HARNESS (LH SIDE)







FRONT DOOR HARNESS (RH SIDE)

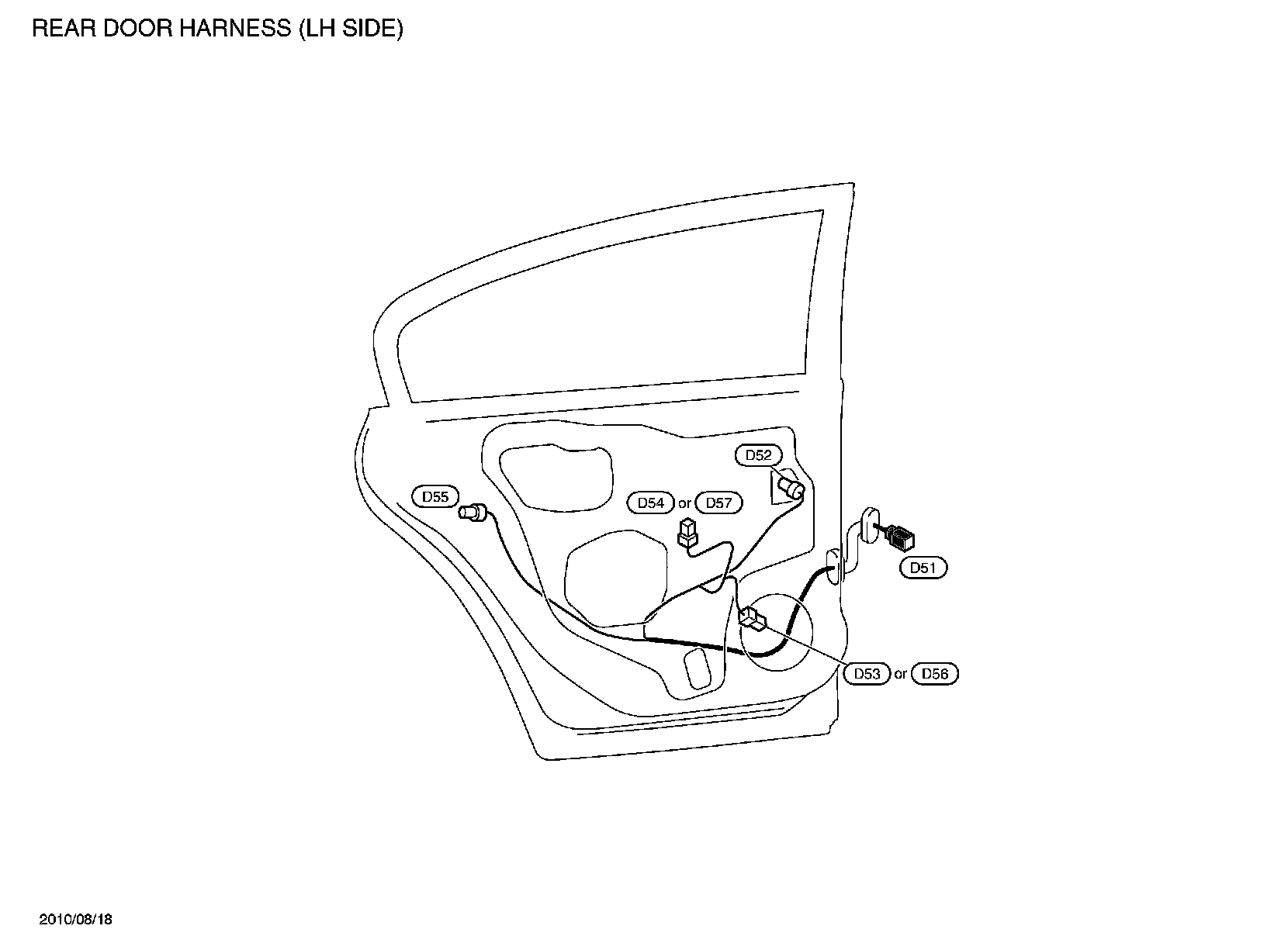

REAR DOOR HARNESS (LH SIDE)

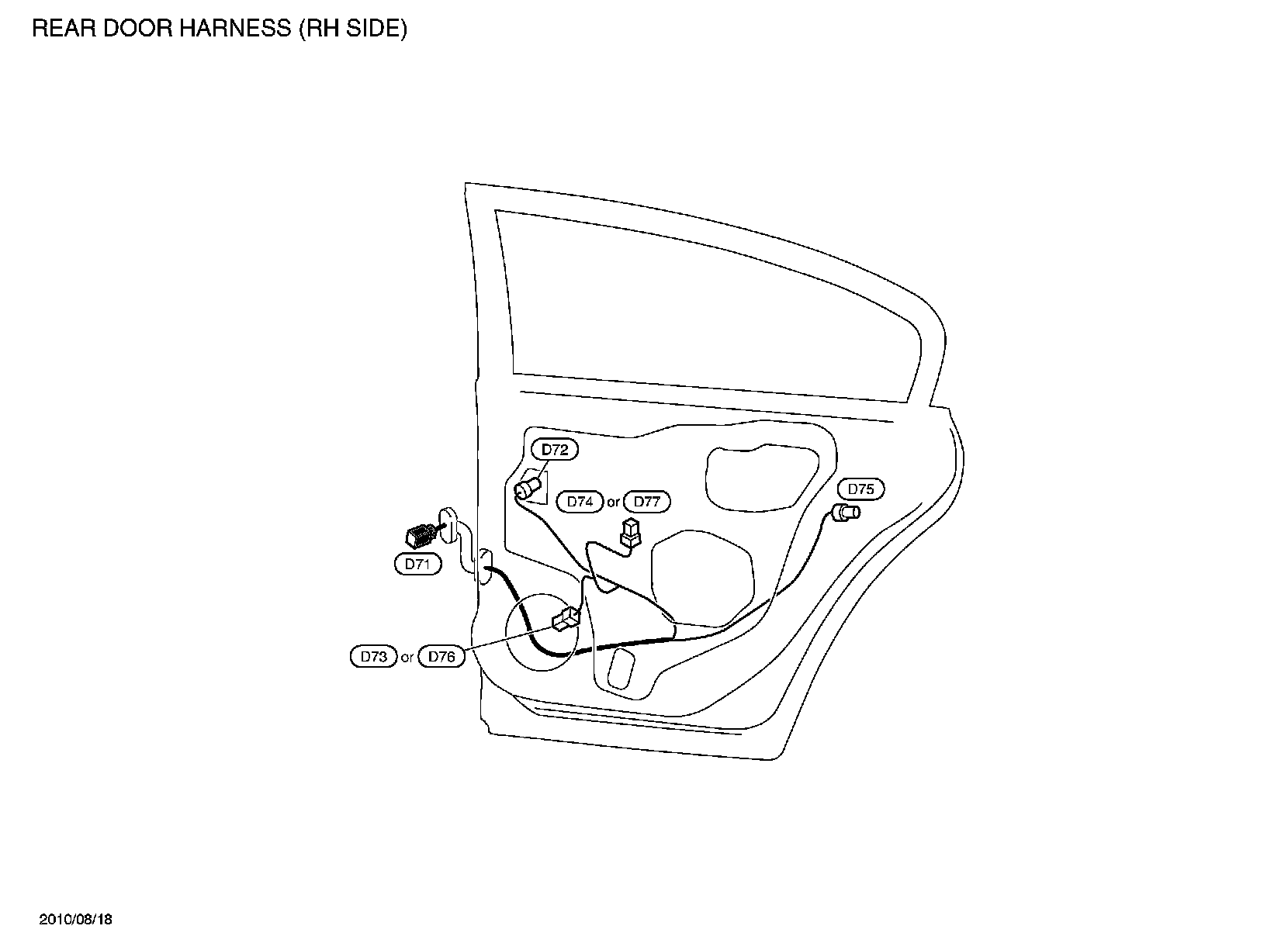

REAR DOOR HARNESS (RH SIDE)
