Engine Control Harness




HARNESS LAYOUT

Engine Control Harness


VQ25HR

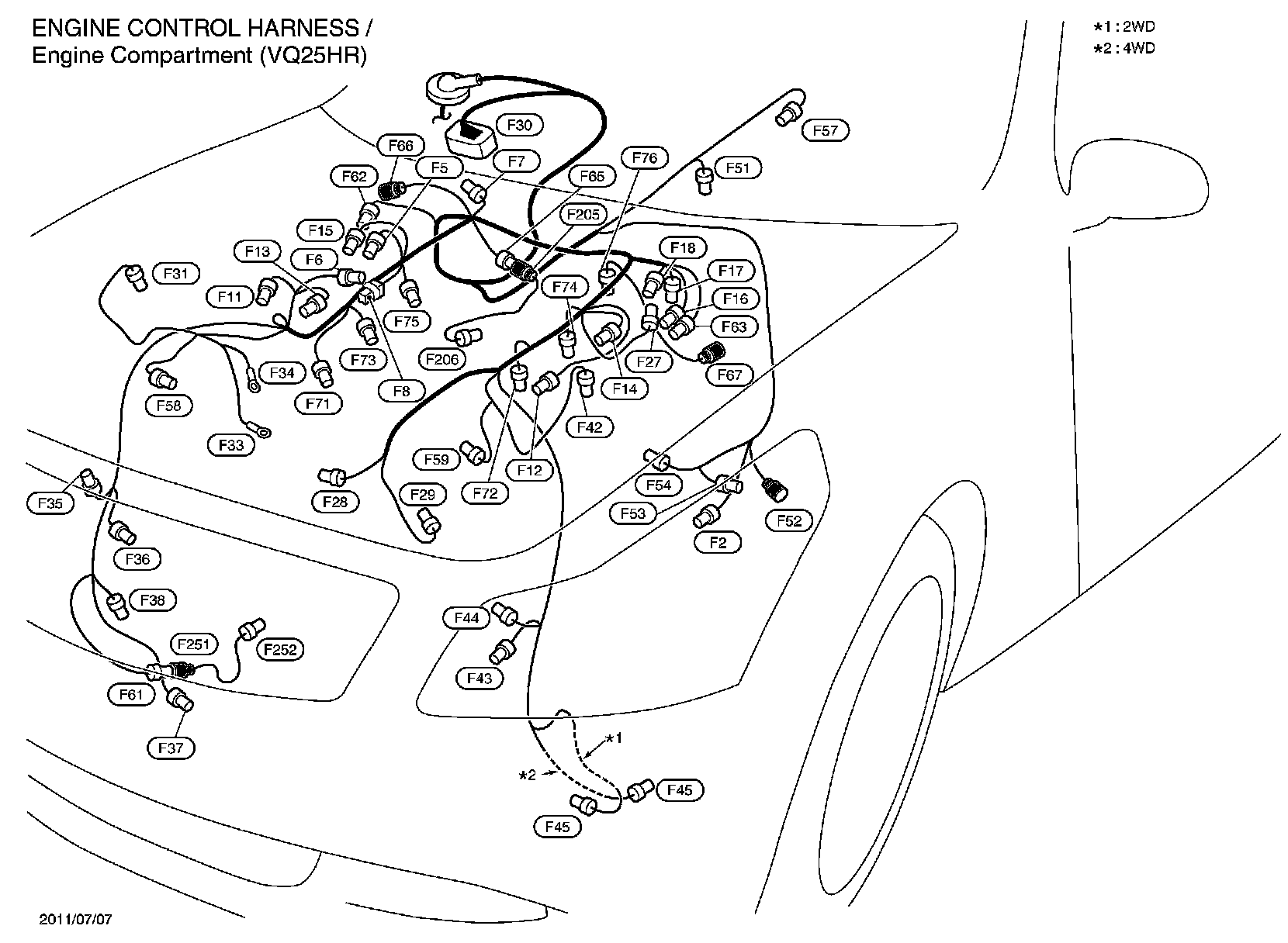

Engine Compartment

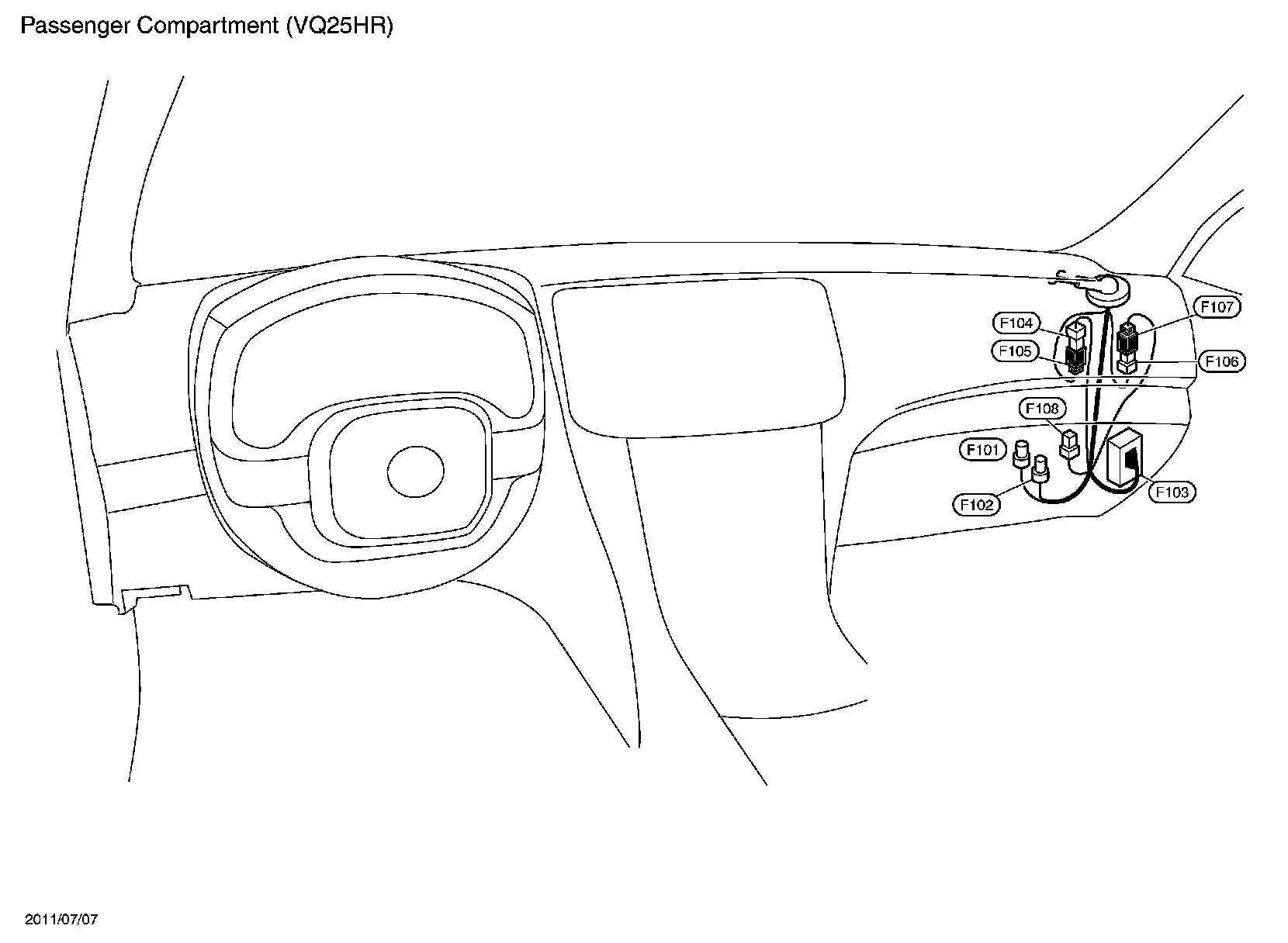

Passenger Compartment






VQ37VHR

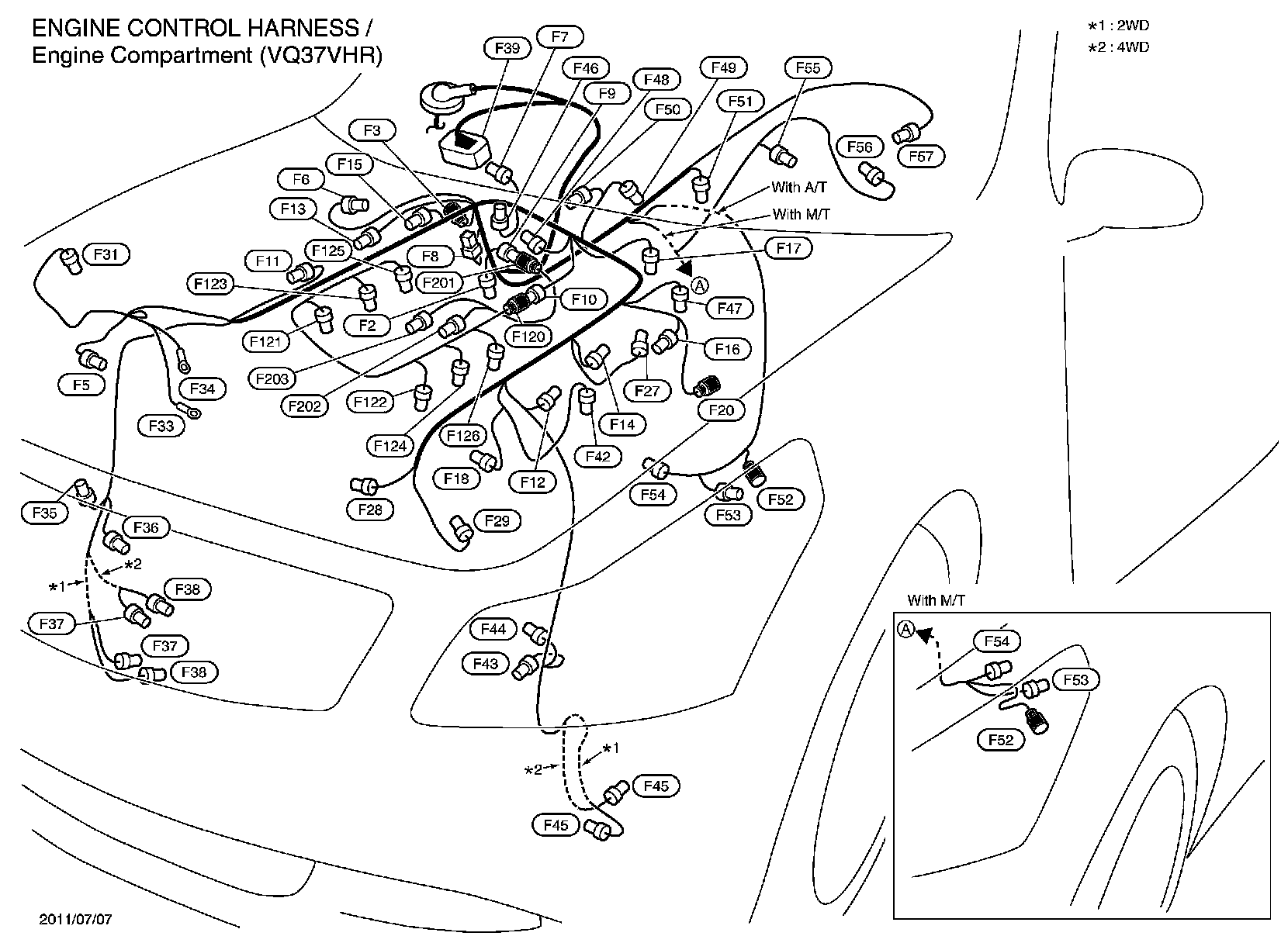

Engine Compartment





Passenger Compartment
