Timing Cover

Front timing chain case:

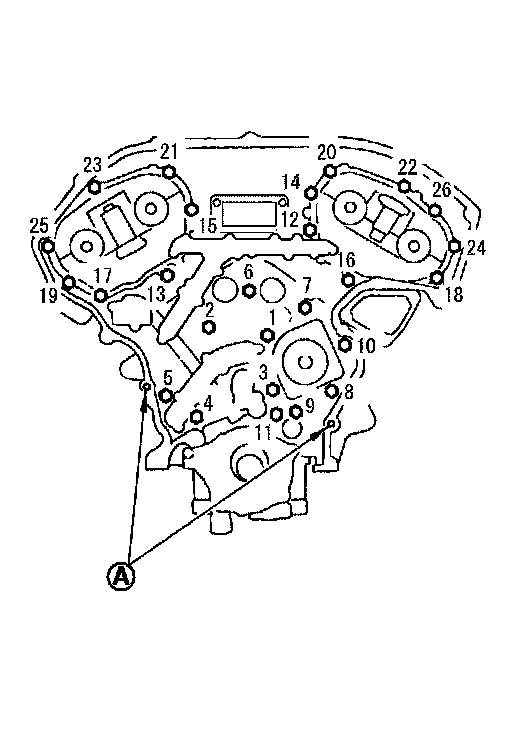

Tighten mounting bolts to the specified torque in numerical order as shown in the figure.

M8 bolts: 1, 2 28.4 Nm (2.8 kg-m, 20 ft-lb)
M6 bolts: Except the above 12.7 Nm (1.3 kg-m, 9 ft-lb)

After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.

Rear timing chain case:

Tighten mounting bolts in numerical order as shown in the figure.





After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.
