Compressor Clutch

COMPRESSOR

Inspection


CHECK DISC TO PULLEY CLEARANCE

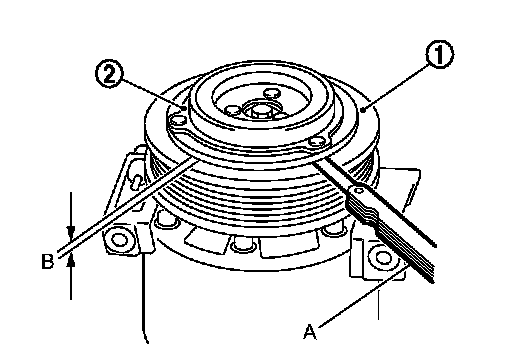

Check the clearance (B) between pulley assembly (1) and clutch disc (2) along the entire periphery with a feeler gauge (A).
Clearance: Compressor.

CAUTION:
Replace compressor if specified clearance is not obtained, replace adjusting spacer and readjust.
