Pinout Values and Diagnostic Parameters

AWD CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL







TERMINAL LAYOUT

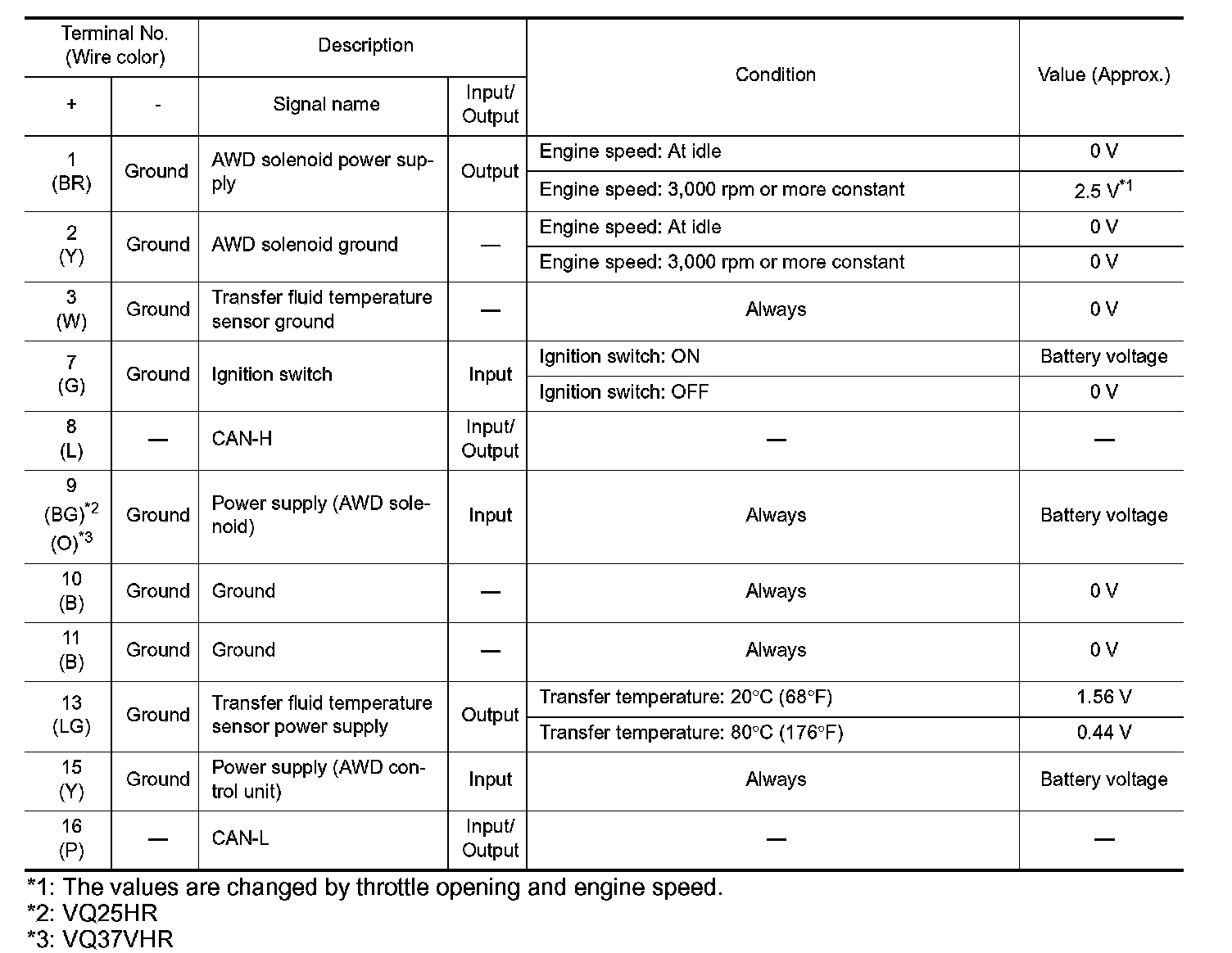

PHYSICAL VALUES






*1: The values are changed by throttle opening and engine speed.
*2: VQ-25HR
*3: VQ-37VHR

CAUTION:
When using circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
