Pinout Values and Diagnostic Parameters
DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
CONSULT MONITOR ITEM

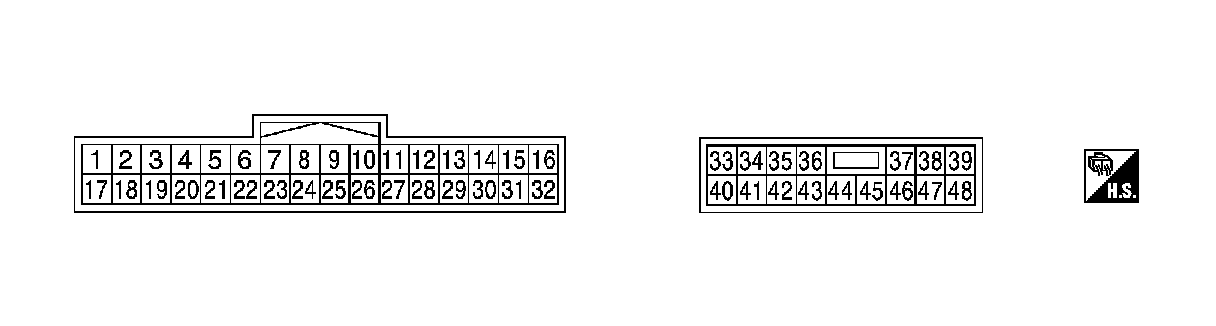

TERMINAL LAYOUT

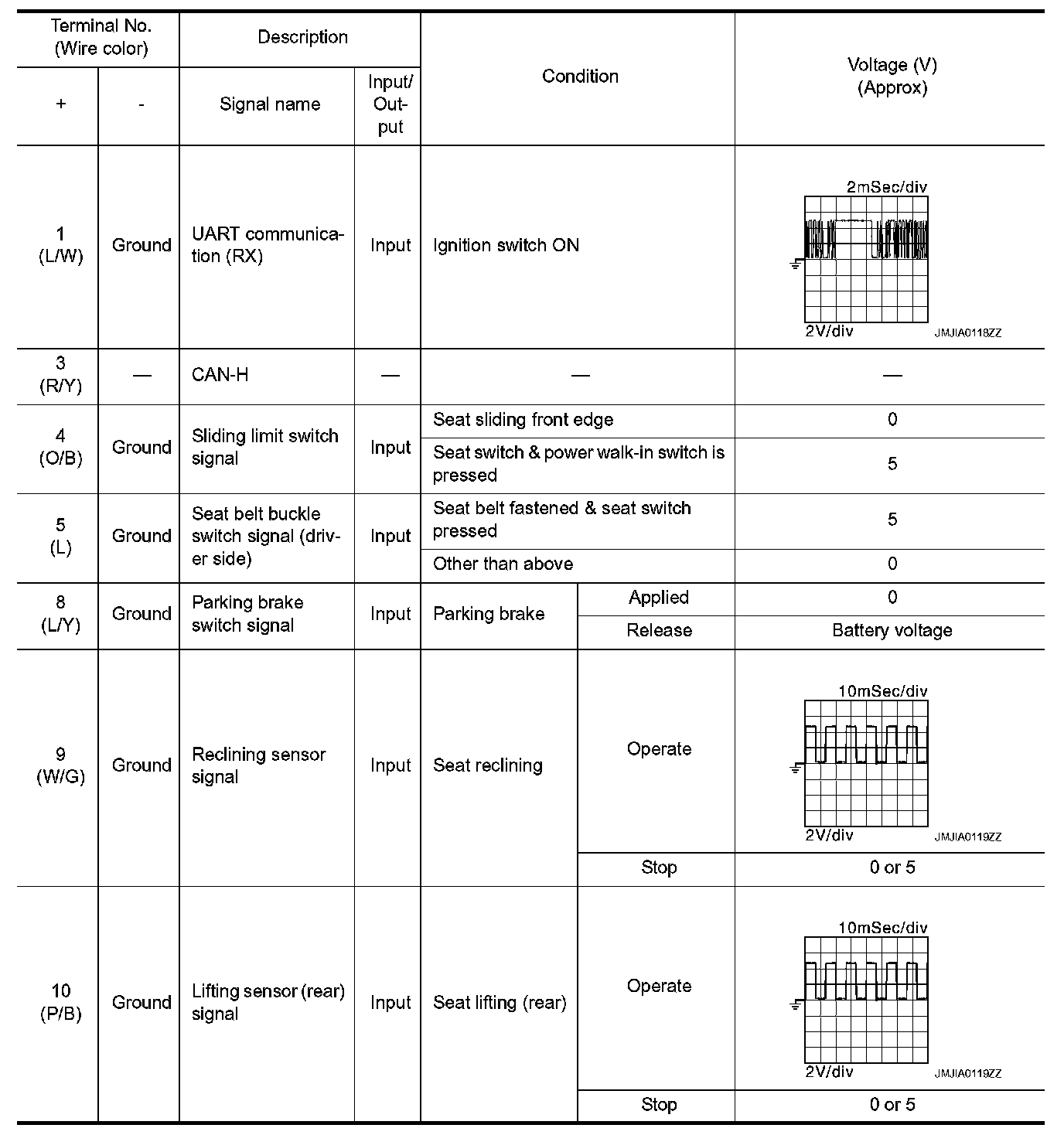

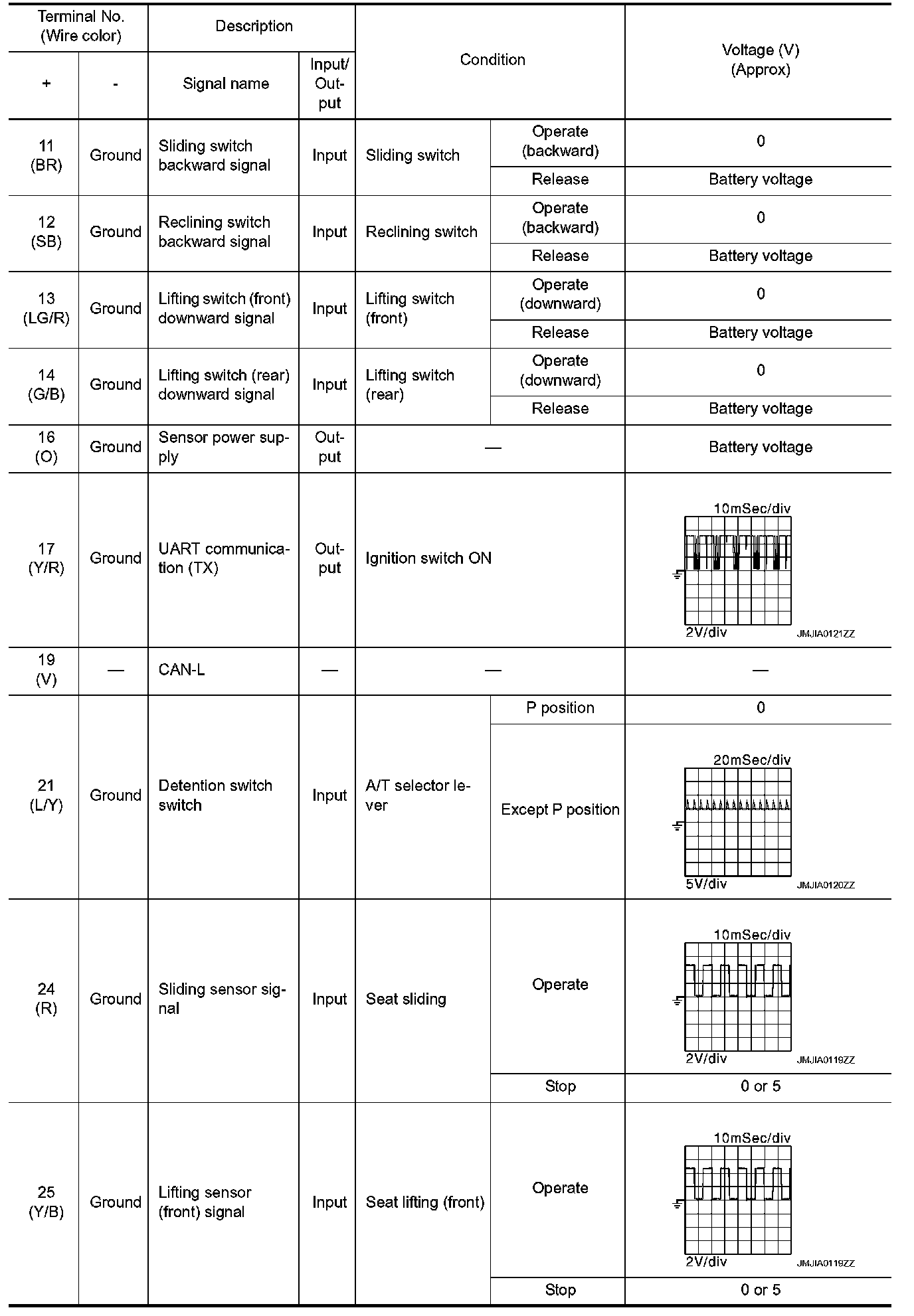

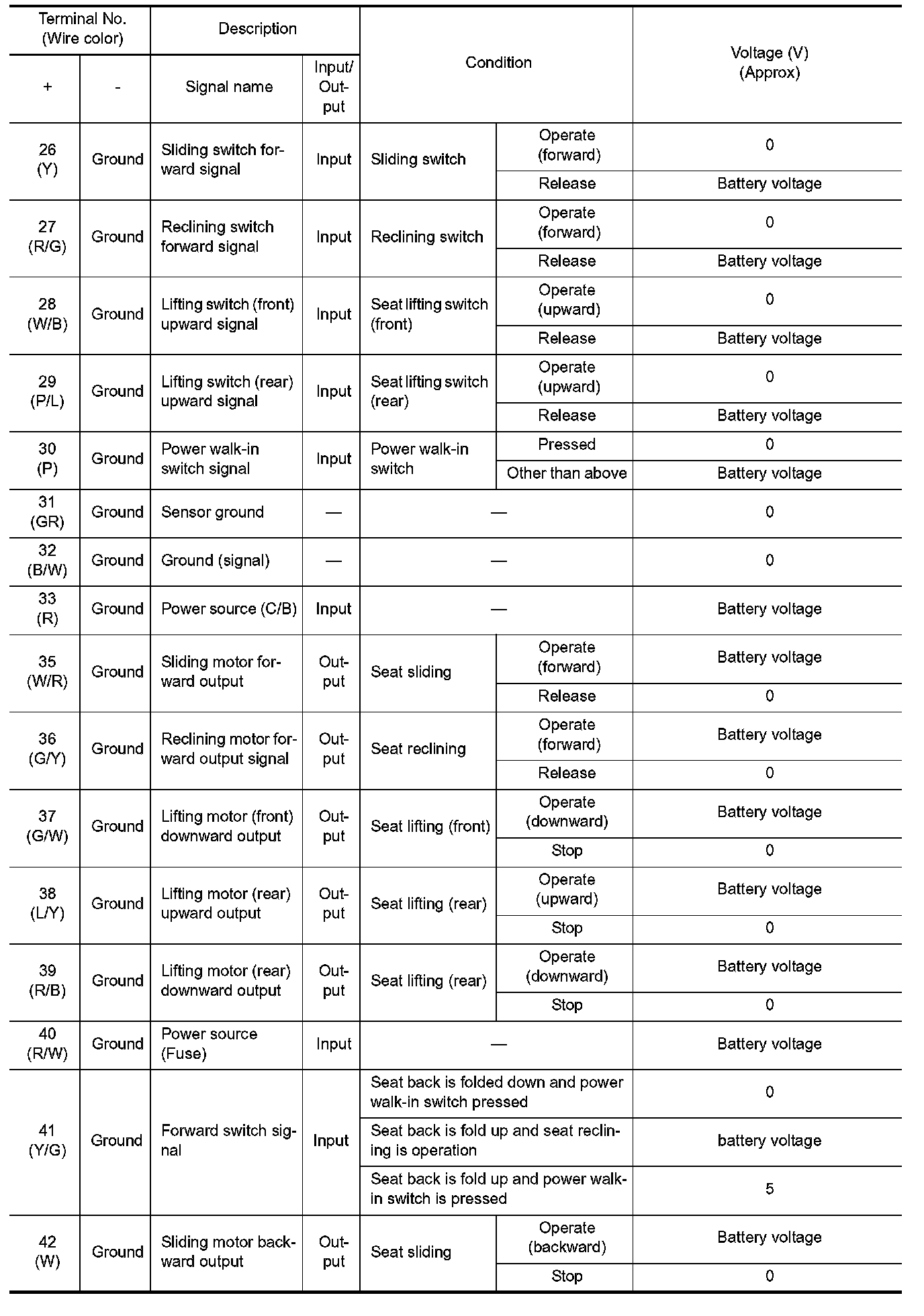

PHYSICAL VALUES
DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
CONSULT MONITOR ITEM
TERMINAL LAYOUT
PHYSICAL VALUES
