Pinout Values and Diagnostic Parameters




ICC SENSOR INTEGRATED UNIT

Reference Value

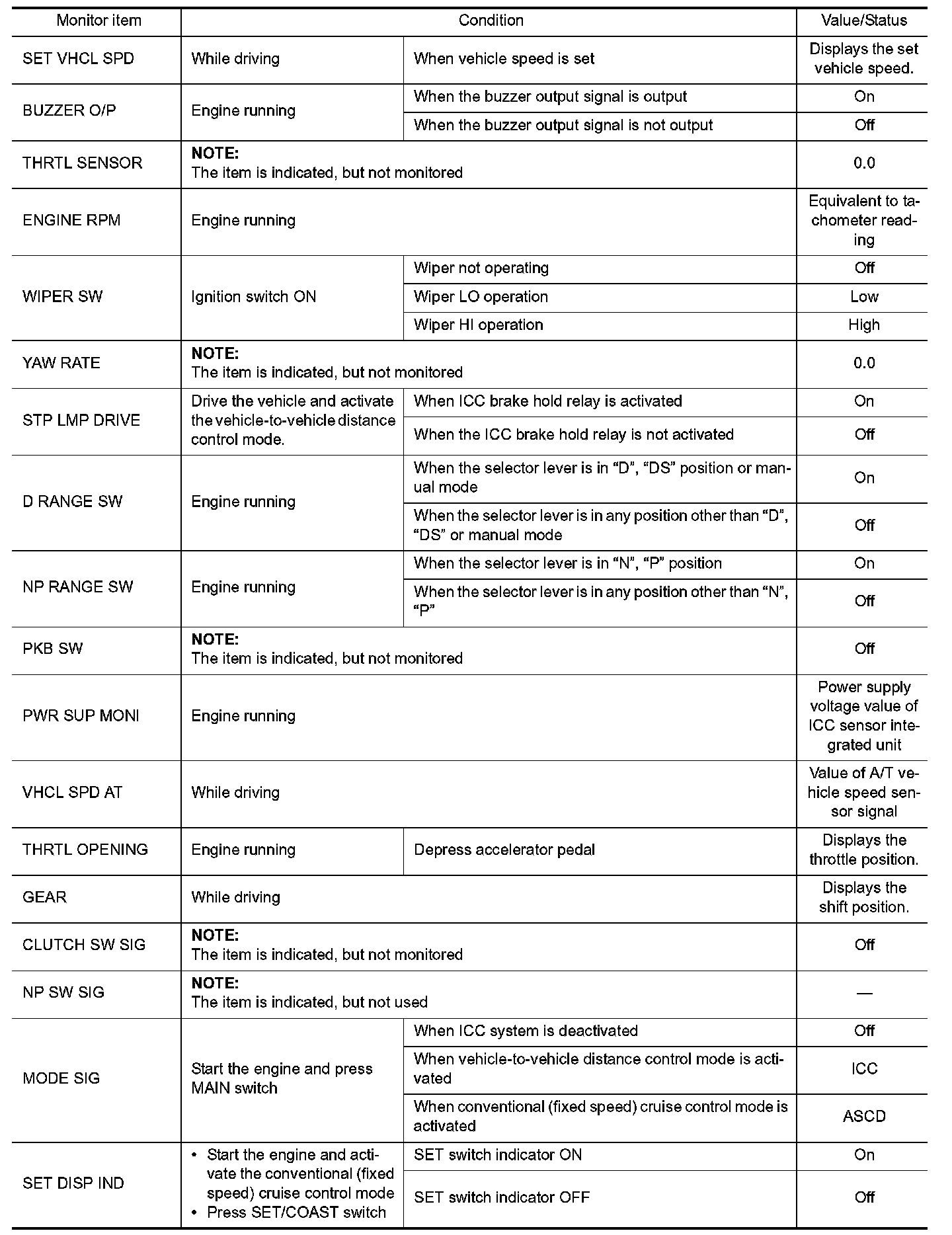

VALUES ON THE DIAGNOSIS TOOL

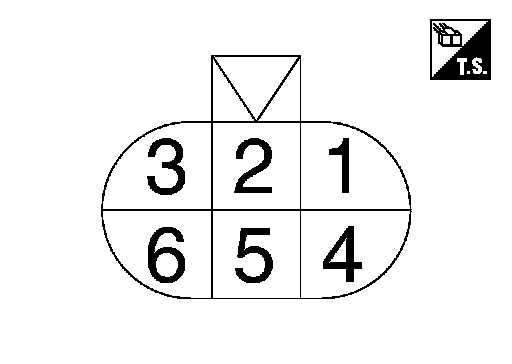

TERMINAL LAYOUT


PHYSICAL VALUES
