Fluid Pan, A/T

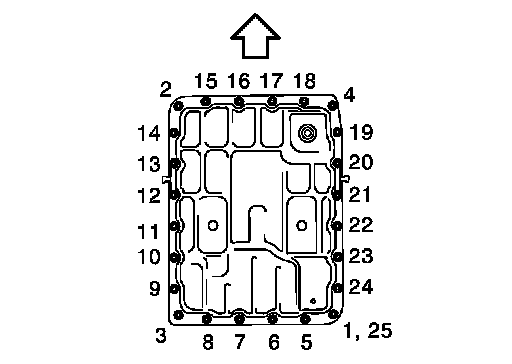

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.

Oil pan mounting bolt 7.9 Nm (0.81 kg-m, 70 in-lb)
