Shift Interlock, A/T
SHIFT LOCK SYSTEM

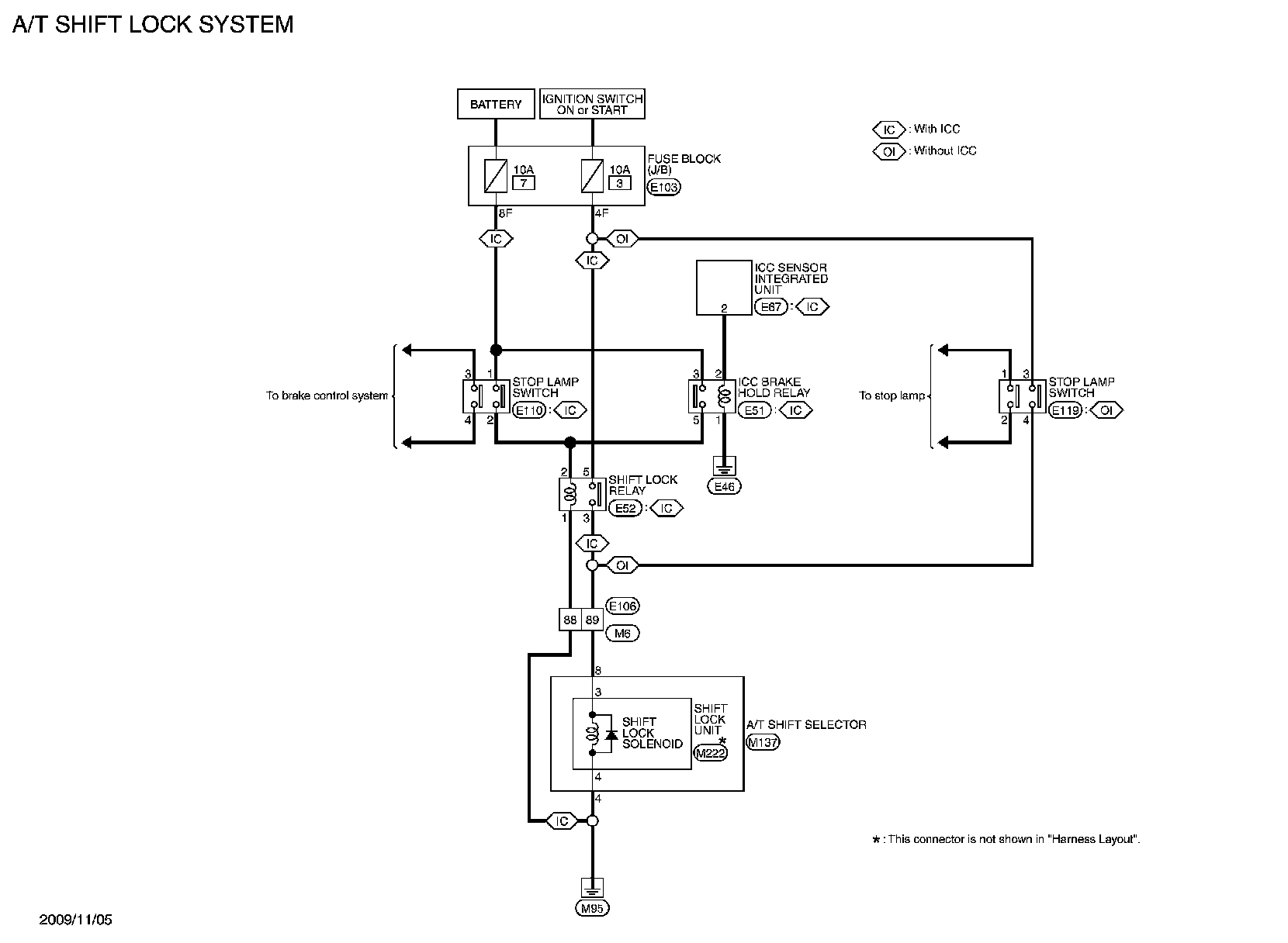

Wiring Diagram - A/T SHIFT LOCK SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
SHIFT LOCK SYSTEM
Wiring Diagram - A/T SHIFT LOCK SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
