BLOWER UNIT : Removal and Installation


REMOVAL

1.Remove instrument lower panel RH. Exploded View A/T Models.





2.Disconnect ECM (1) connectors.
3.Remove mounting nuts (A), and then remove ECM with bracket attached.
4.Remove power steering control unit (WITHOUT 4WAS). Refer to
Exploded View Without 4WAS.
5.Disconnect intake door motor (2) connector and blower motor (3) connector.
6.Remove mounting bolt (B) and fixing screw (C), and then blower unit (4).

CAUTION:
Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

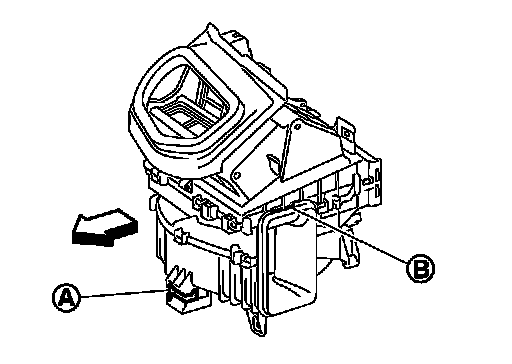

CAUTION:
Check locating pin (A) and joint (B) are securely inserted.
