B2267

Description

The engine speed signal is transmitted from ECM to the unified meter and A/C amp. with CAN communication.


DTC Logic

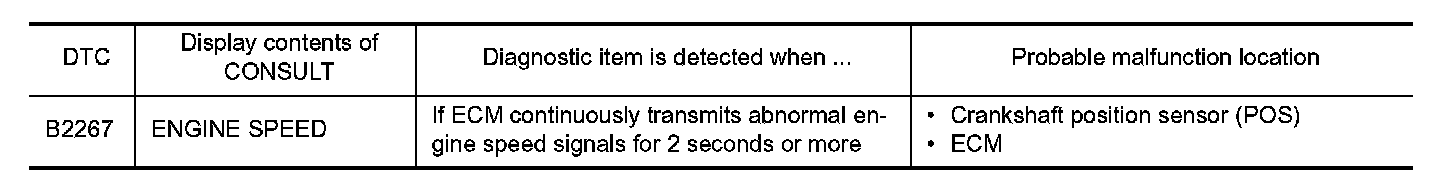

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS OF ECM

Perform "Self Diagnostic Result" of ECM, and repair or replace malfunctioning parts.
- Consult Function (VQ-37VHR), (VQ-25HR
FOR USA AND CANADA), or (VQ-25HR FOR MEXICO).
