Variable Valve Timing Control Module

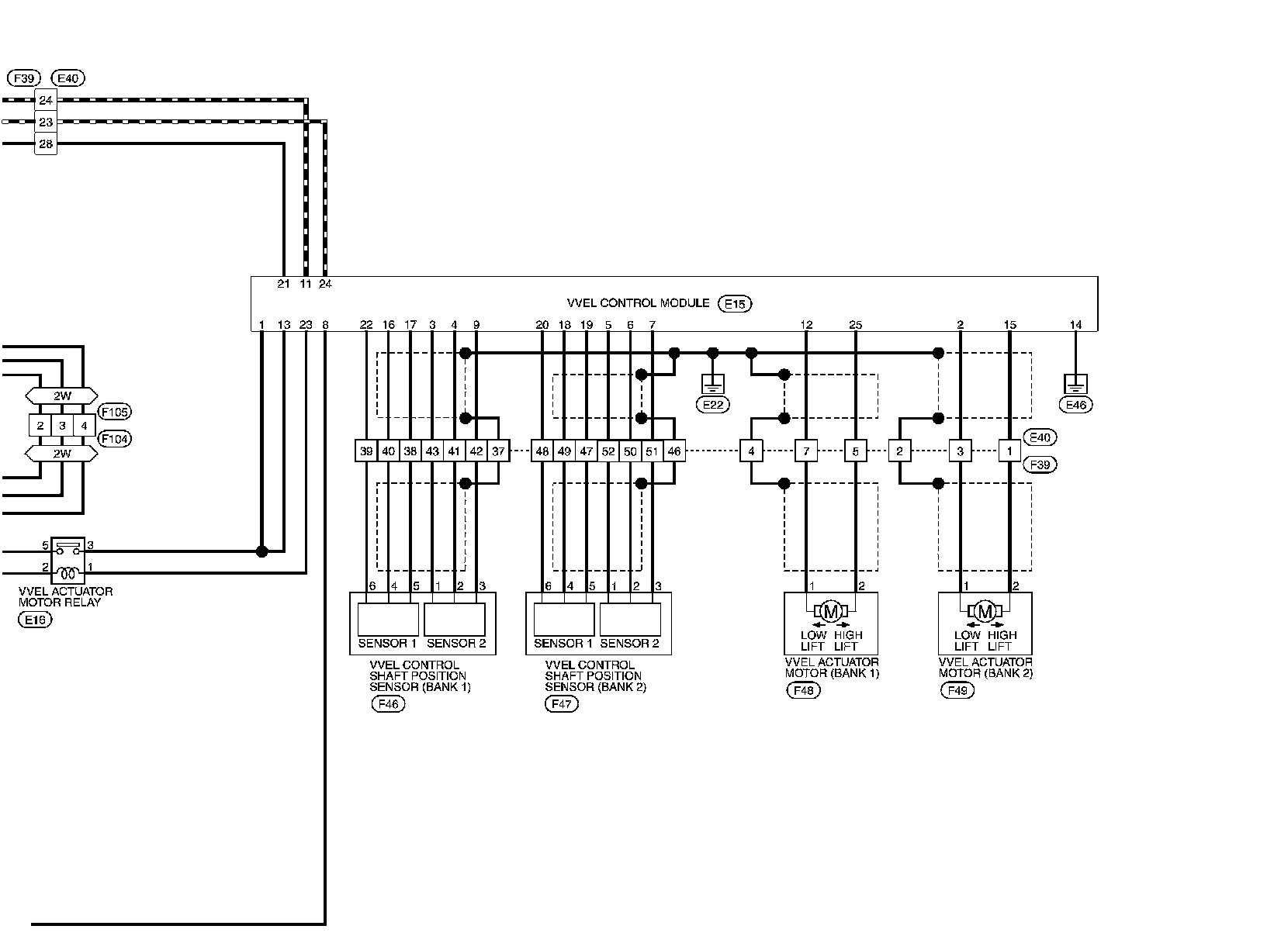

VVEL CONTROL MODULE

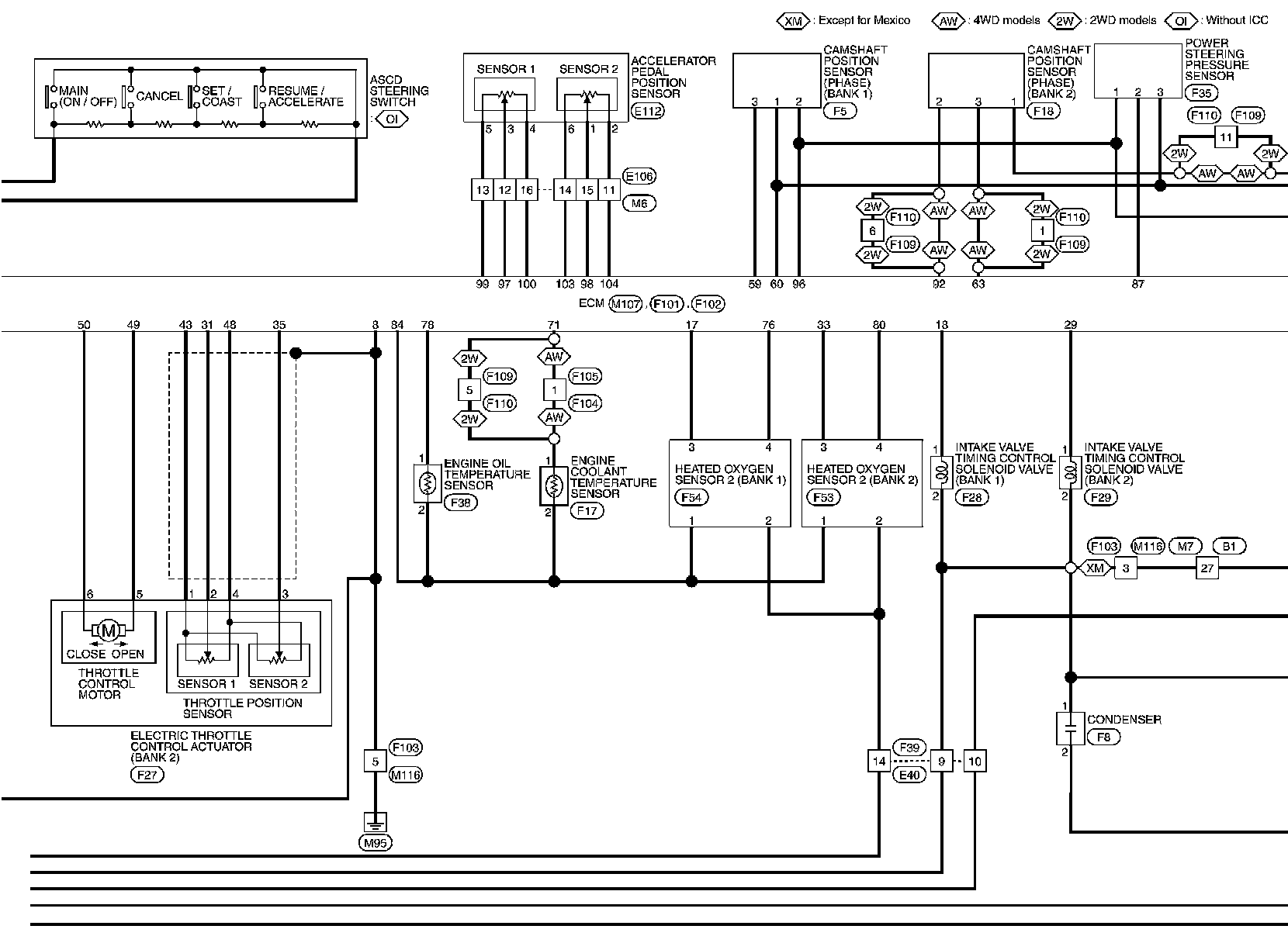

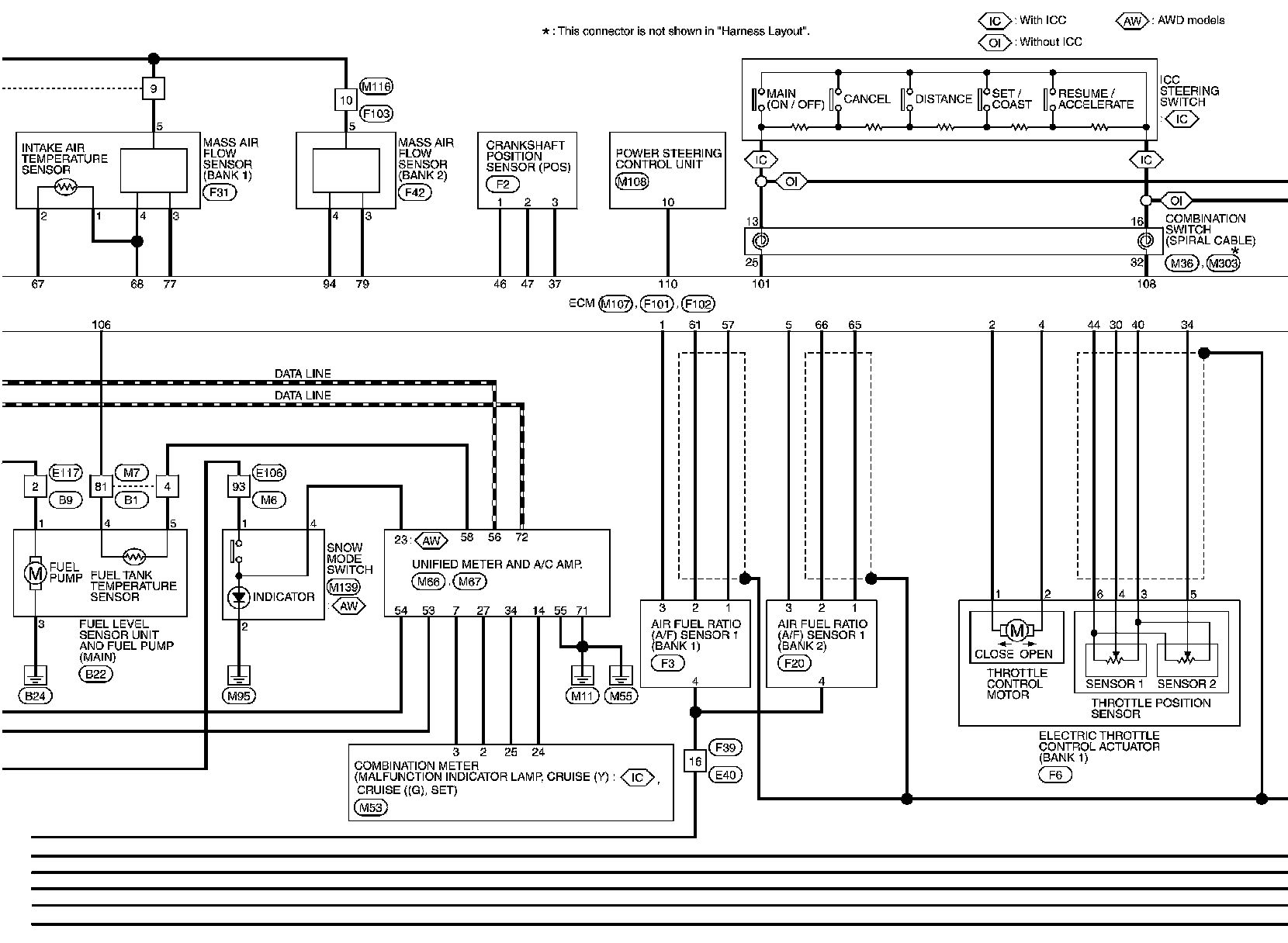

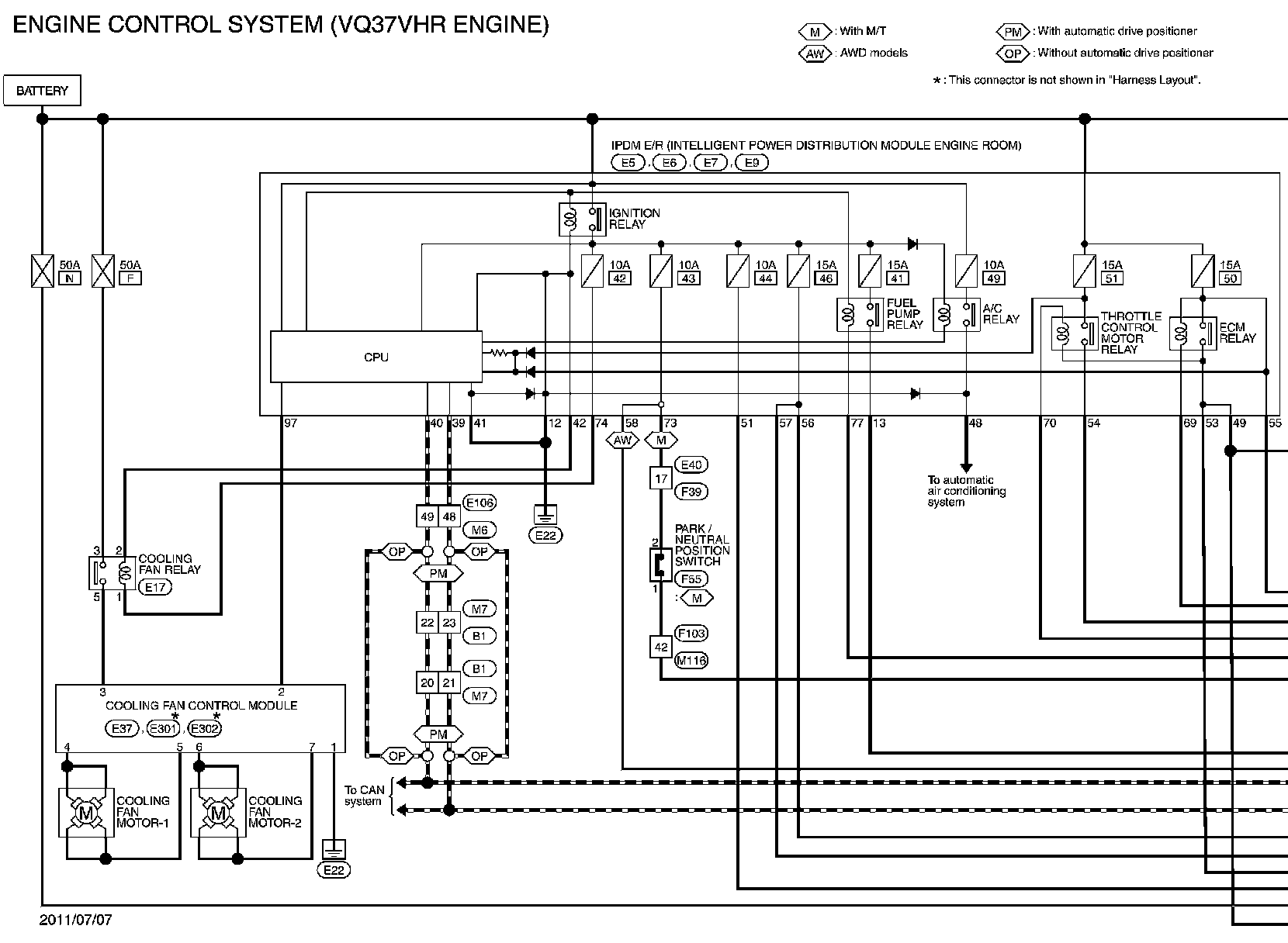

Wiring Diagram - ENGINE CONTROL SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not described in wiring diagram), Connector Information.
