Unibody

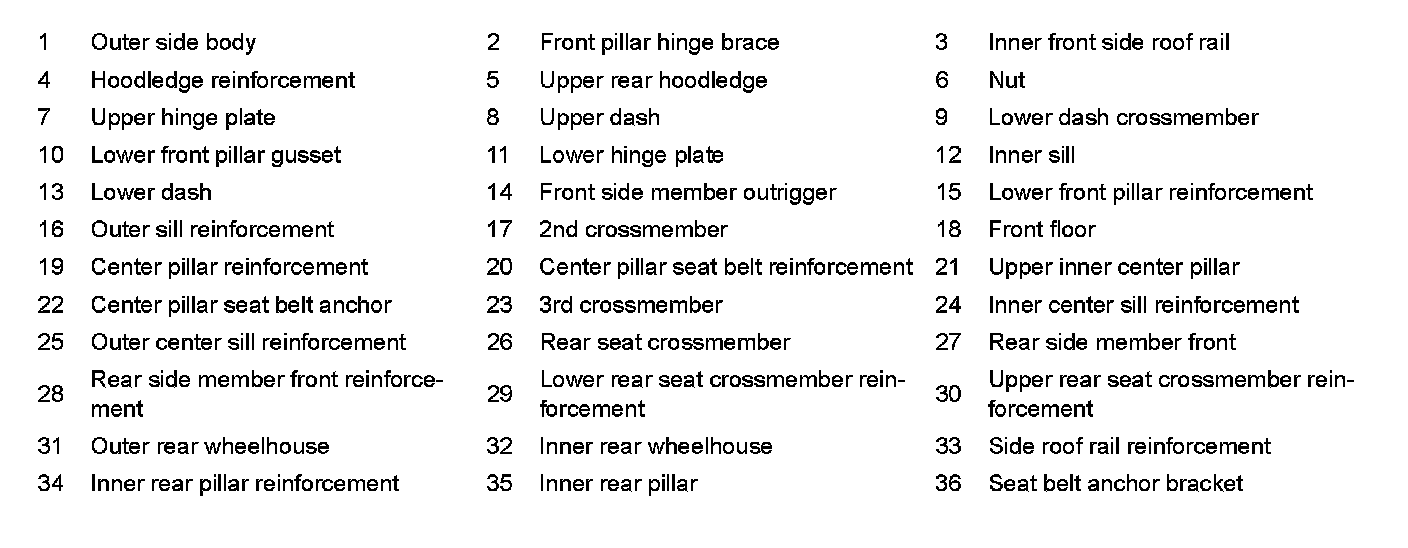

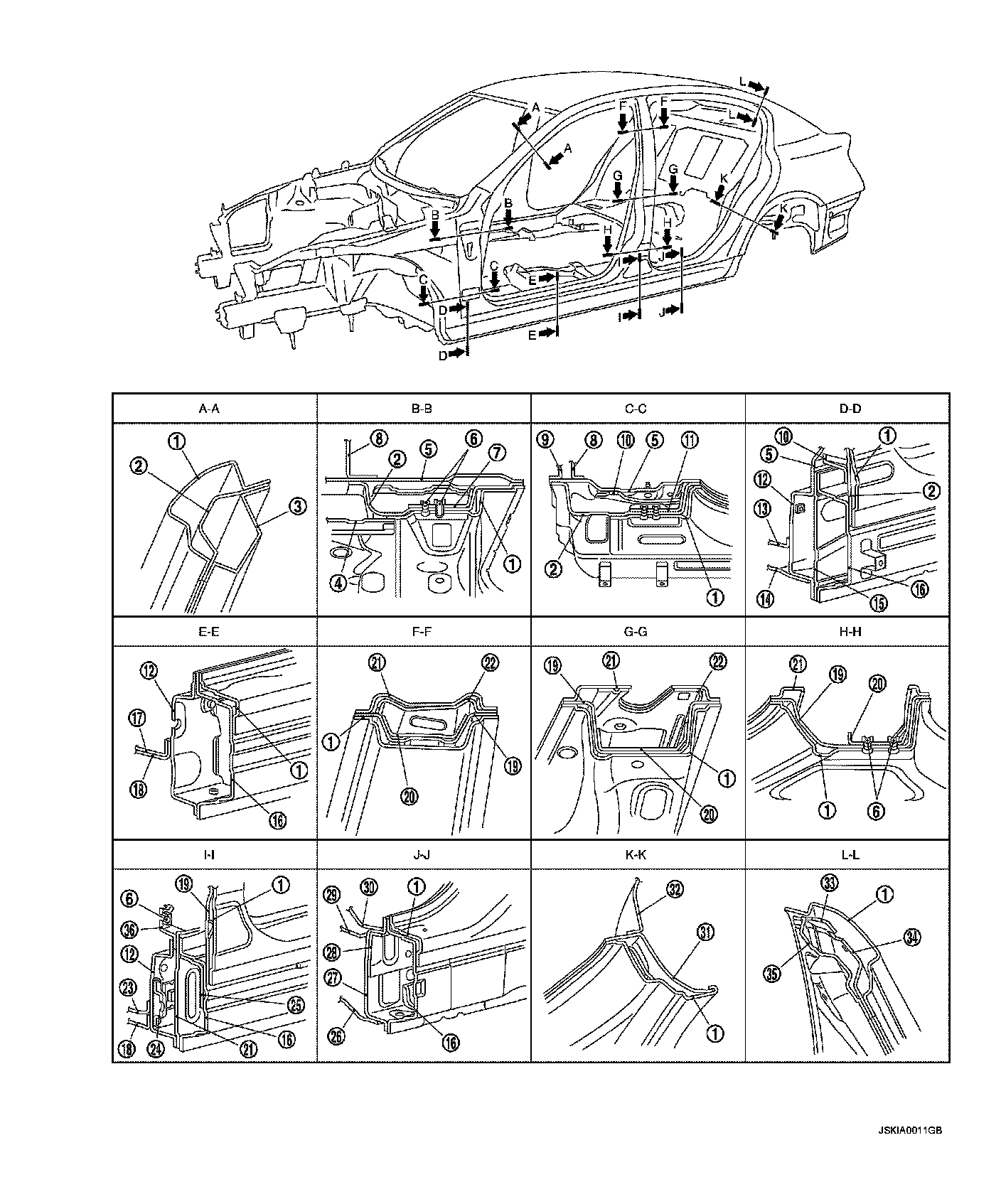

BODY CONSTRUCTION

Body Construction






Revision: 2011 July2012 G25/G37 Sedan





Revision: 2011 July2012 G25/G37 Sedan
