High Voltage System Disable / Enable: Description and Operation

COMPONENT PARTS

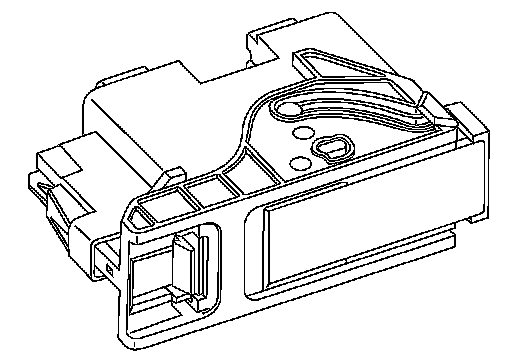

Service Plug






- A service plug is installed on the high-voltage battery in order to securely shut off the high-voltage circuit during inspection and servicing of high-voltage components.
- When the service plug cover is opened, the service plug can be removed.
- Be sure to use insulated protective gear when removing and installing the service plug.
