Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (ELECTRICALLY-DRIVEN INTELLIGENT BRAKE UNIT)

CONSULT Function


APPLICATION ITEM

CONSULT can display each diagnostic item using the diagnostic test modes as follows.





*
: The following diagnosis information is erased by erasing.

CAUTION:
Turn the ignition switch OFF and wait 5 minutes or more after erase self-diagnosis result.
- DTC
- Freeze frame data (FFD)

ECU IDENTIFICATION

Electrically-driven intelligent brake unit part number can be read.

SELF DIAGNOSTIC RESULT

Testing and Inspection.
- The system is presently malfunctioning.
- System malfunction in the past is detected, but the system is presently normal.

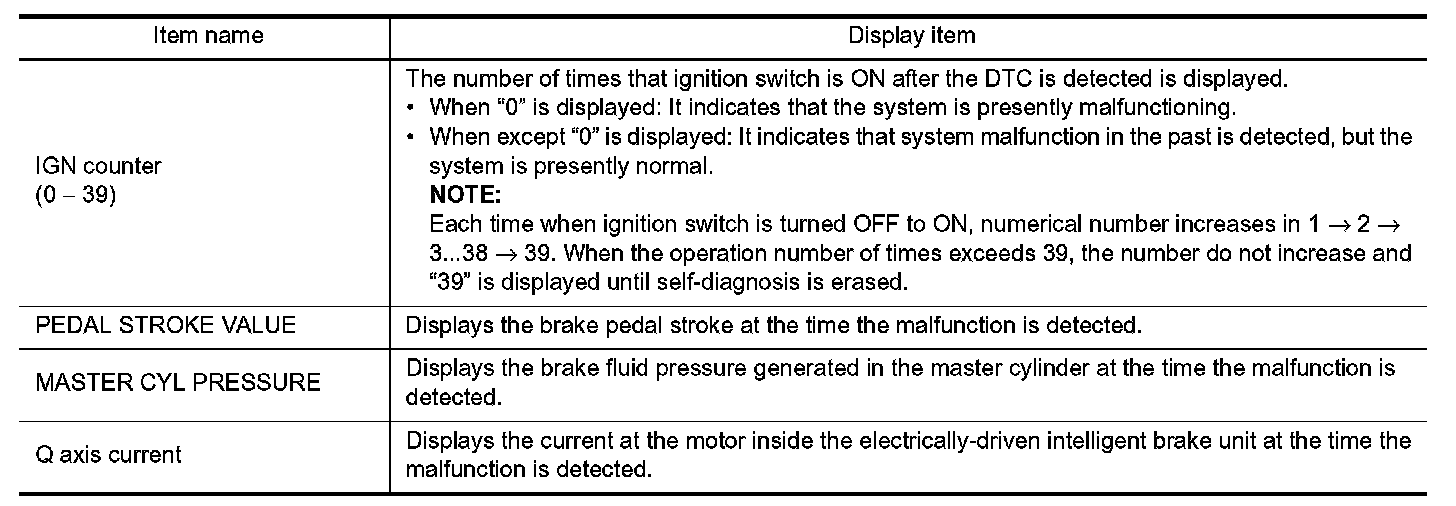

Freeze frame data (FFD)
When DTC is detected, a vehicle state shown below is recorded and displayed on CONSULT.

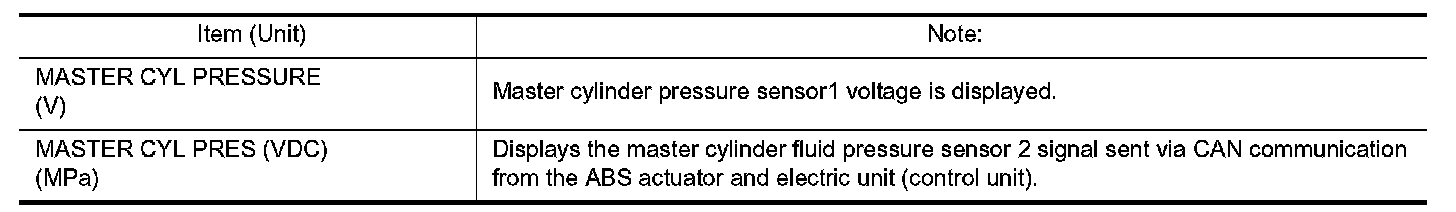

DATA MONITOR
















The stroke sensor is composed of two circuits: stroke sensor 1 and stroke sensor 2.

ACTIVE TEST

The active test is used to determine and identify details of a malfunction, based on self-diagnosis test results and data obtained in the DATA MONITOR. In response to instructions from CONSULT, instead of those from electrically-driven intelligent brake unit on the vehicle, a drive signal is sent to the actuator to check its operation.

CAUTION:
- Never perform ACTIVE TEST while driving the vehicle.
- Always bleed air from brake system before active test.
- Never perform active test when system is malfunctioning.
NOTE:
- When active test is performed while depressing the pedal, the pedal depressing stroke may change. This is not a malfunction.
- Brake warning lamp (red) and brake system warning lamp (yellow) turn ON during active test. This is not a malfunction.
Stop Lamp OFF Relay
When "On" or "Off" is selected on display screen, the following items are displayed when system is normal.






WORK SUPPORT
