Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2012
>>
M35h V6-3.5L (VQ35HR) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Clock
Clock

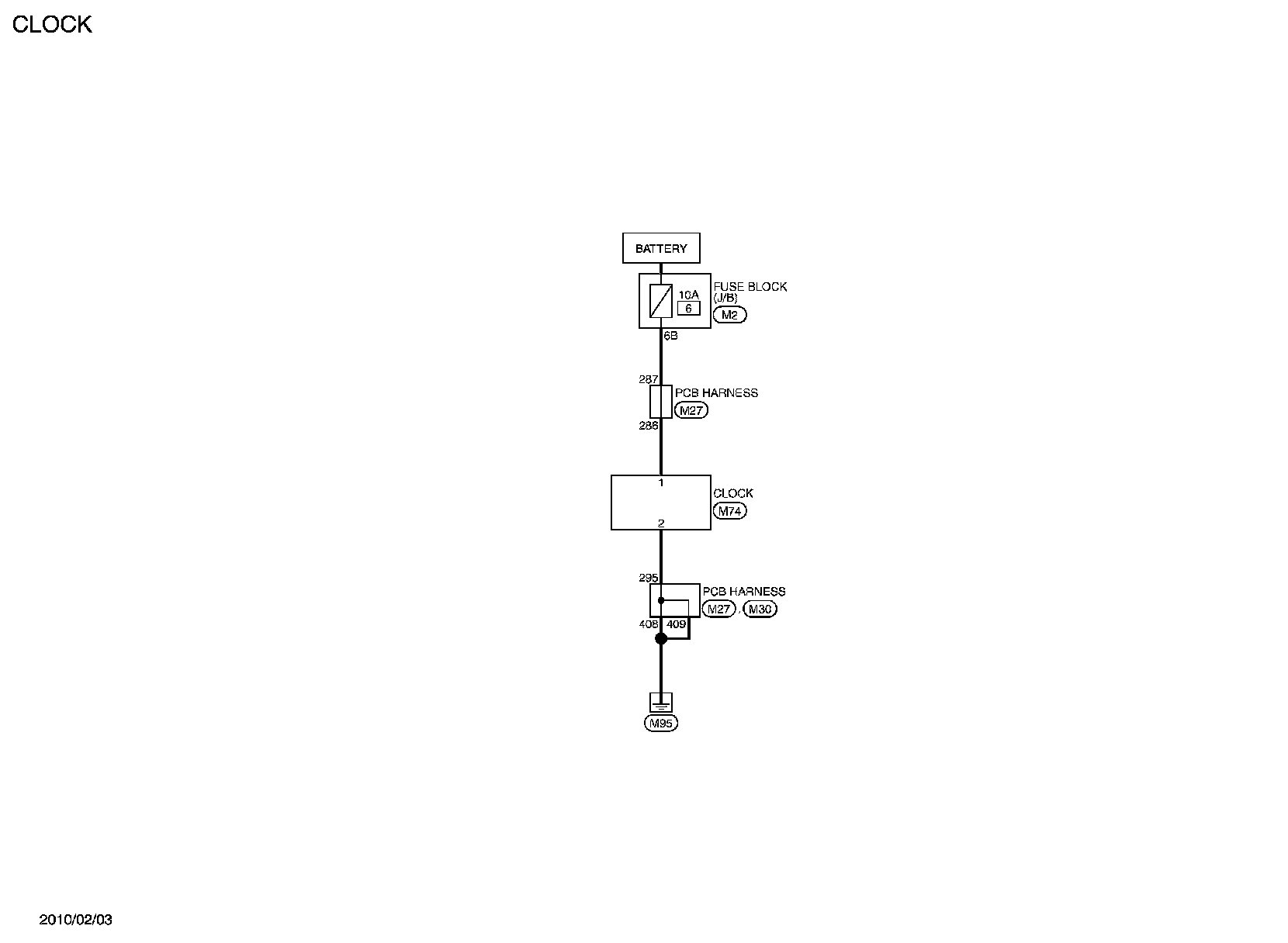

CLOCK
Wiring Diagram
