Reference Value

A/C AUTO AMP.

Reference Value(AUTOMATIC AIR CONDITIONING)


CONSULT DATA MONITOR REFERENCE VALUES











*: With Forest Air

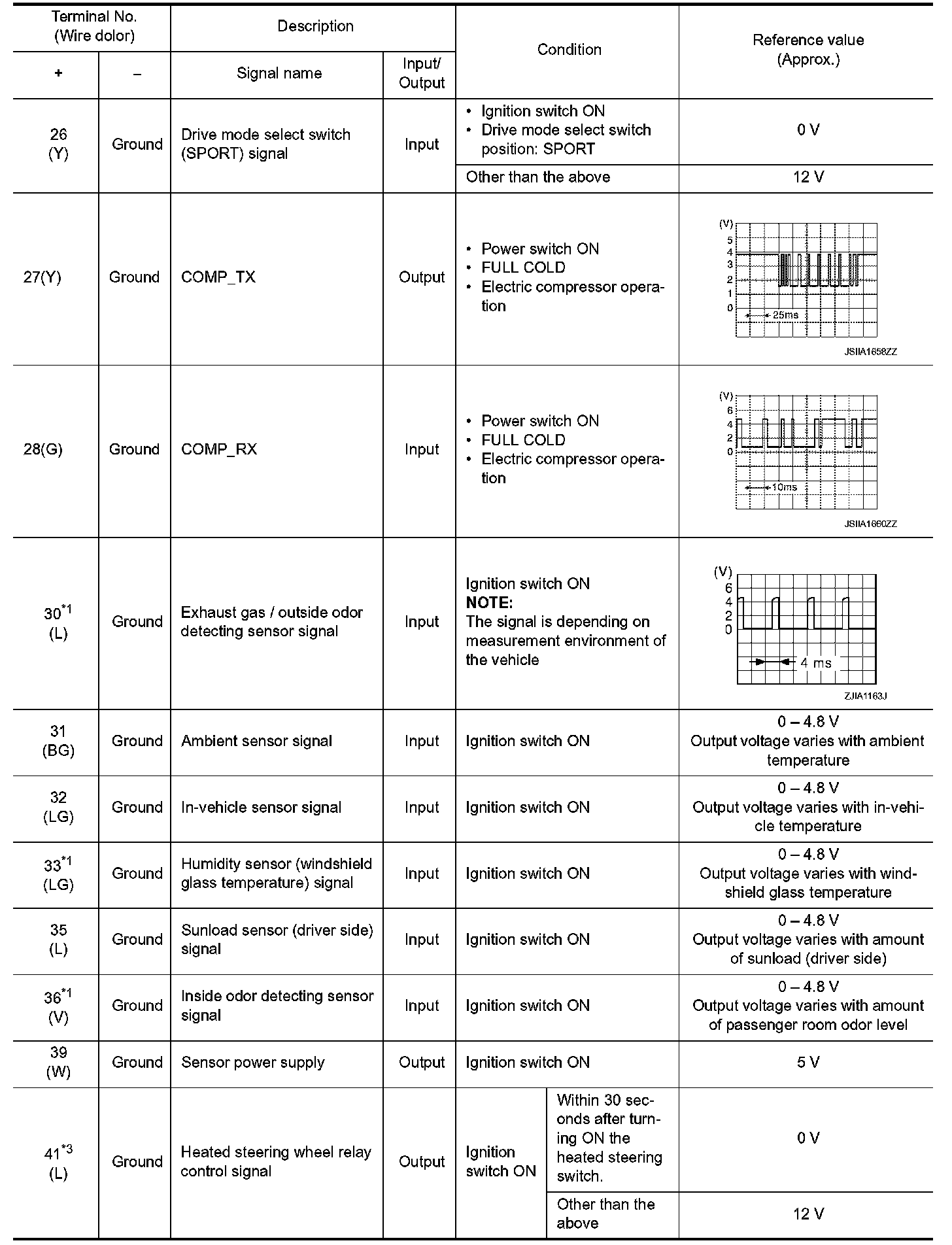

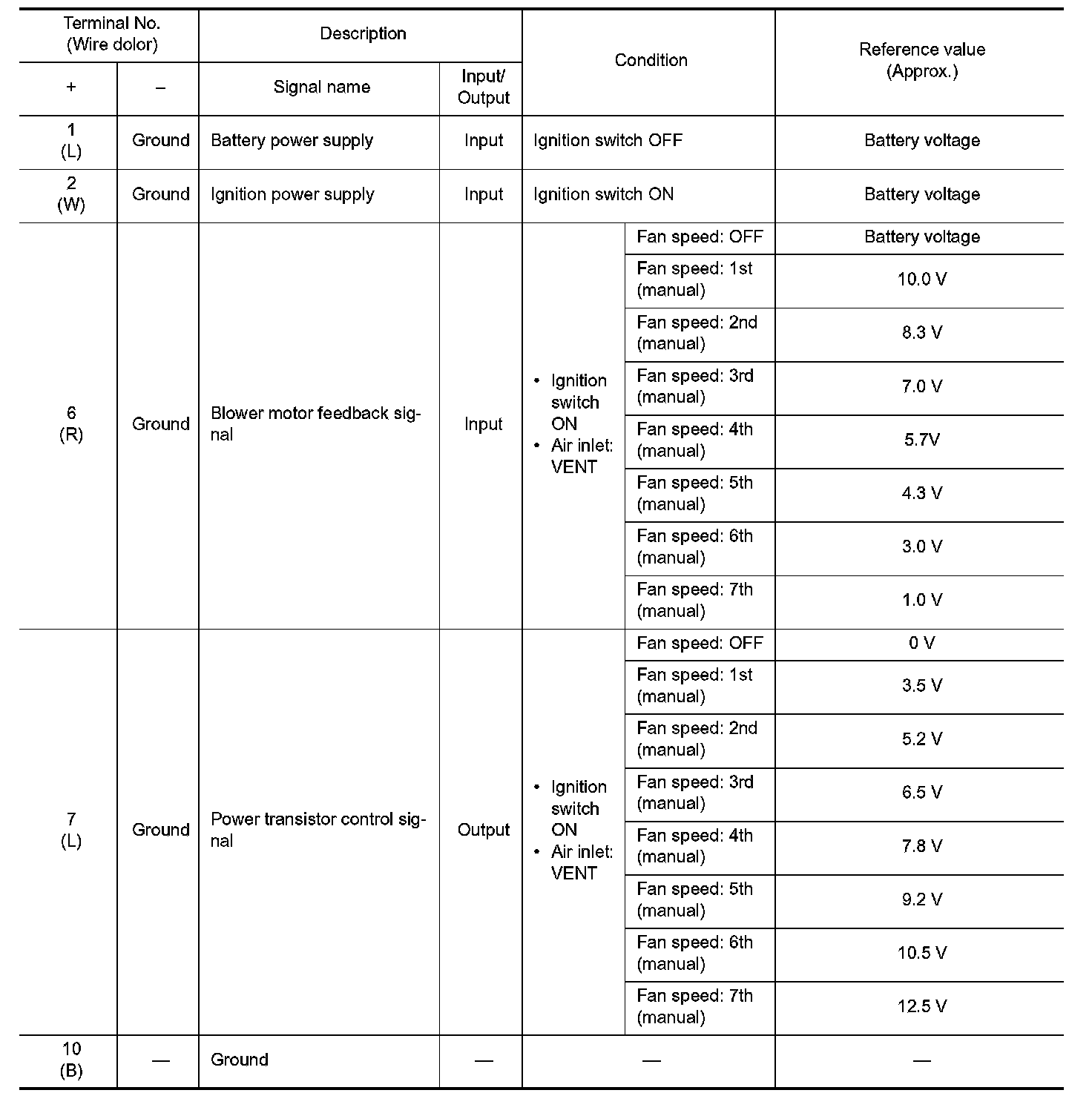

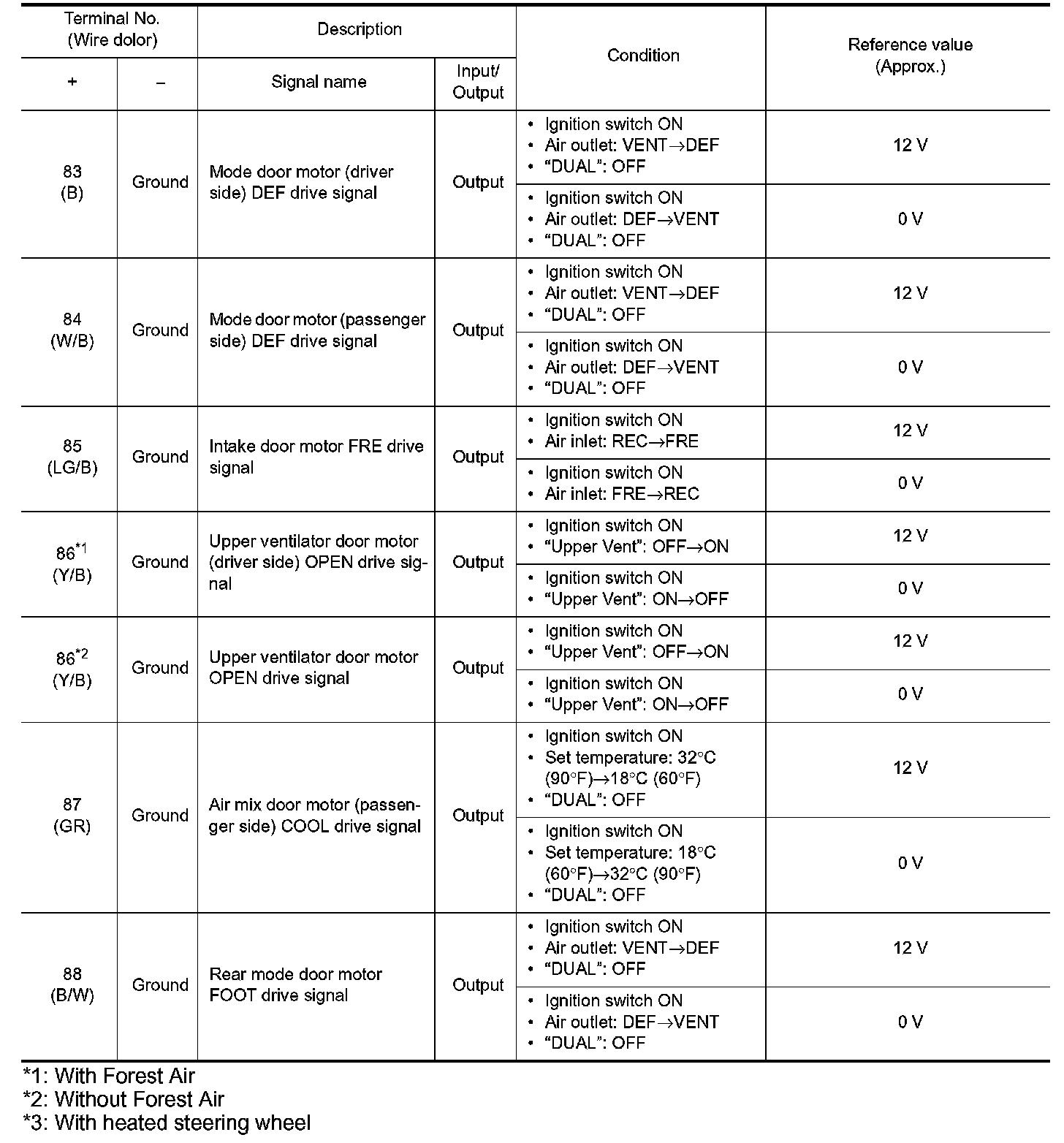

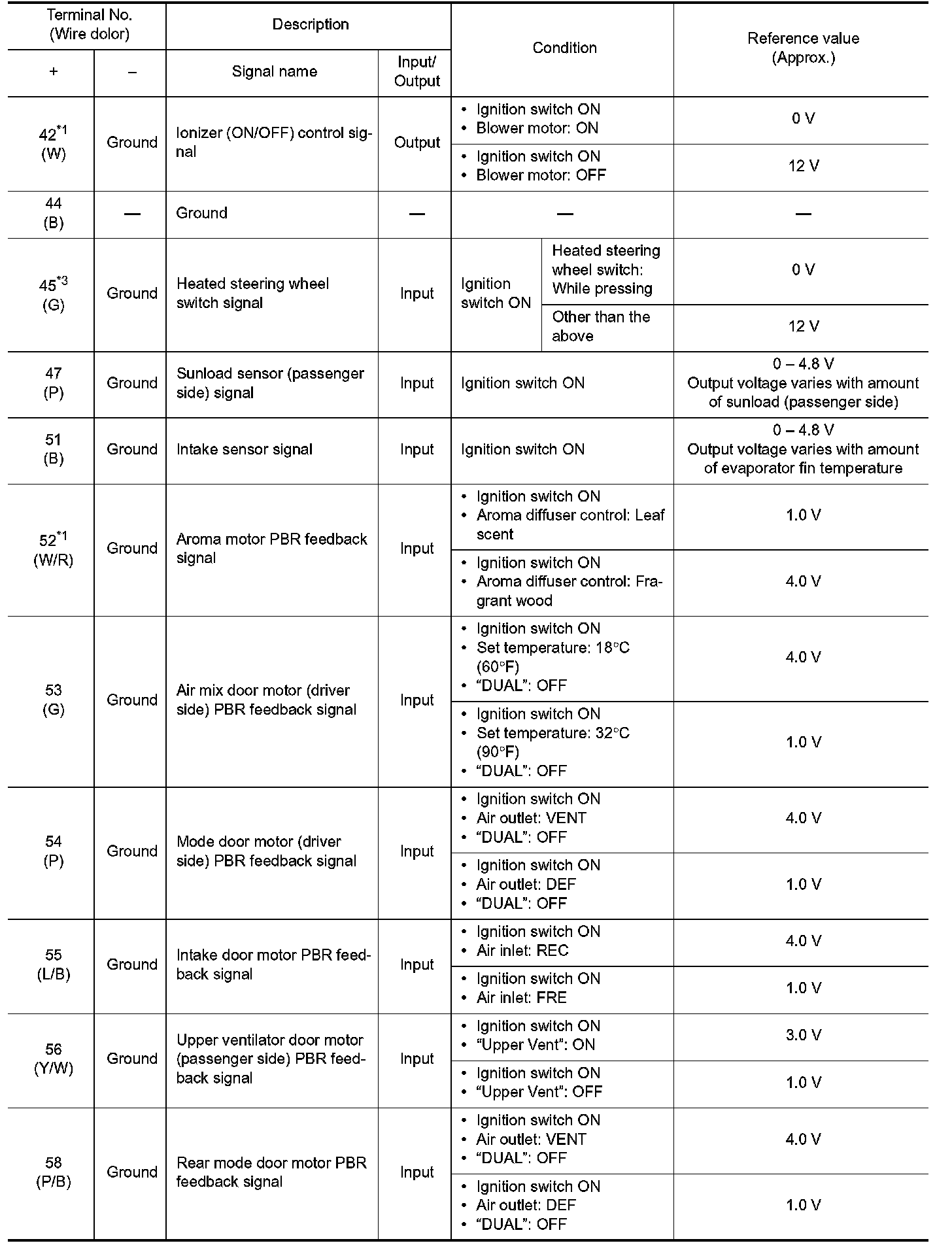

TERMINAL LAYOUT







PHYSICAL VALUES




































*1: With Forest Air
*2: Without Forest Air
*3: With heated steering wheel
