Hybrid Control System Fail-Safe

SYSTEM

HYBRID CONTROL SYSTEM : Fail-safe

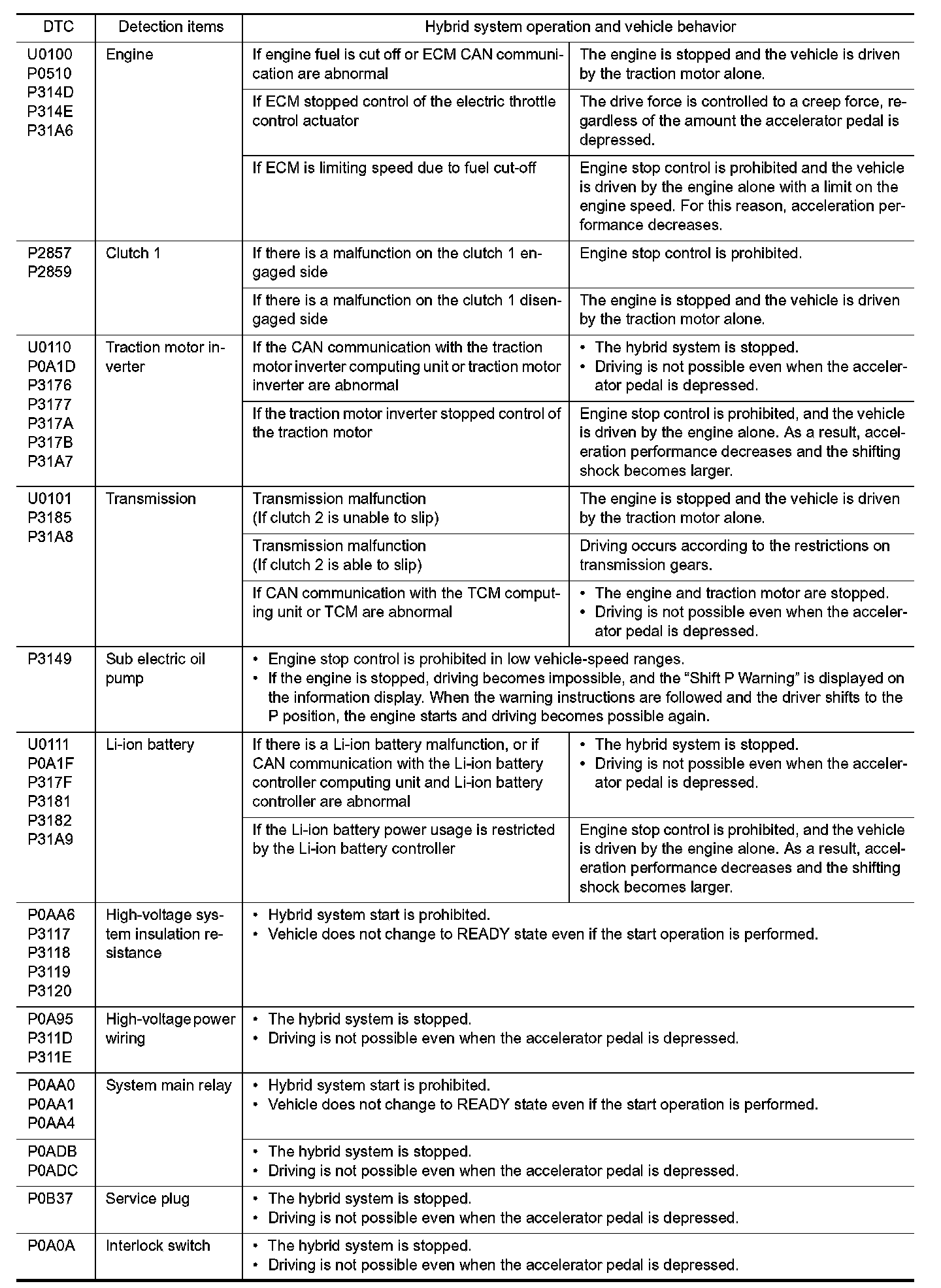

If a malfunction occurs in the hybrid system, HPCM performs fail-safe activation according to the detected malfunction, and activates the hybrid system warning lamp or 12-volt battery charge warning lamp.
