Information Display

COMPONENT PARTS

Information Display

Information necessary to control the information display is transmitted from each relevant control module and input into the combination meter. Based on this information, warnings or information appears on the information display.

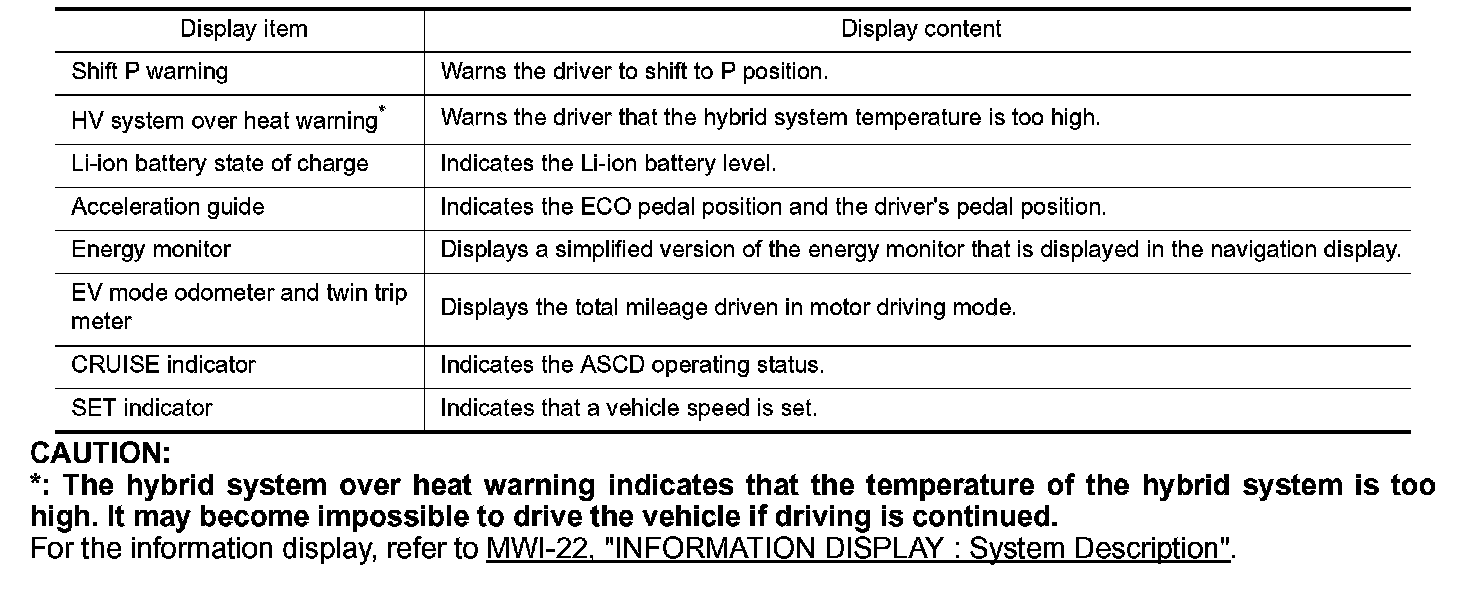

HPCM transmits signals for the following items to the combination meter via CAN communication in order to display them.






CAUTION:
*: The hybrid system over heat warning indicates that the temperature of the hybrid system is too high. It may become impossible to drive the vehicle if driving is continued.
For the information display, System Description.
