Operating Principle




SYSTEM

MOTOR REGENERATION CONTROL : Operating Principle

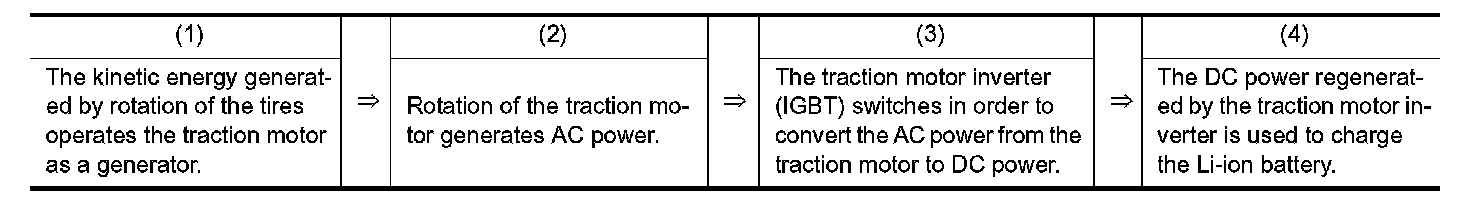

REGENERATIVE BRAKE ELECTRIC GENERATION

Flow of Energy

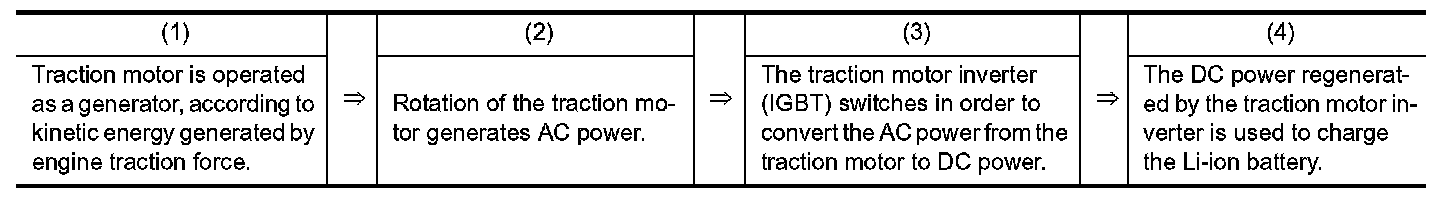

ENGINE ELECTRIC GENERATION

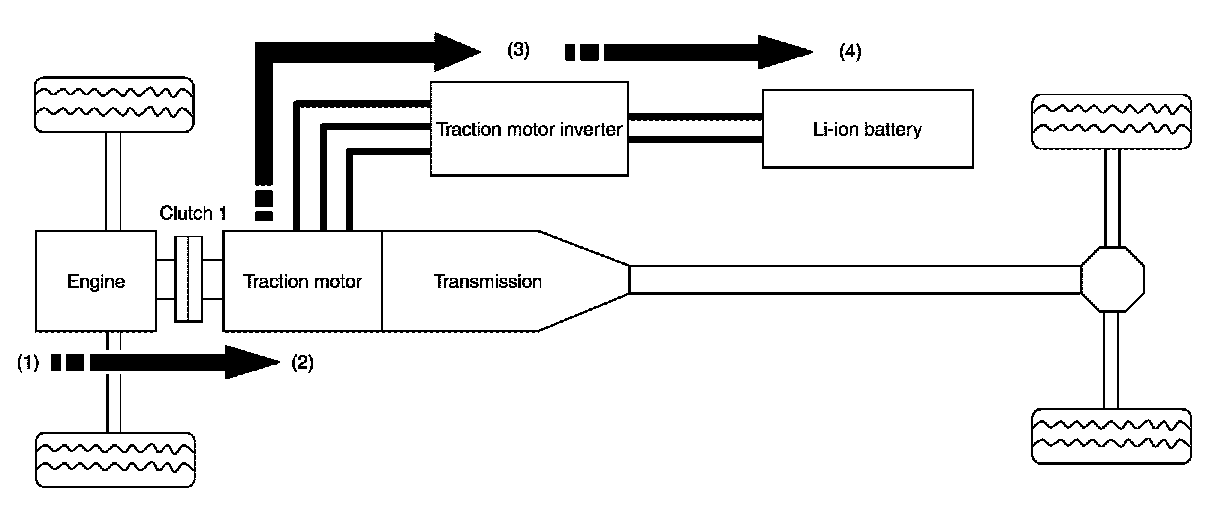

Flow of Energy
