High Voltage and 12V Components
High Voltage and 12V Components

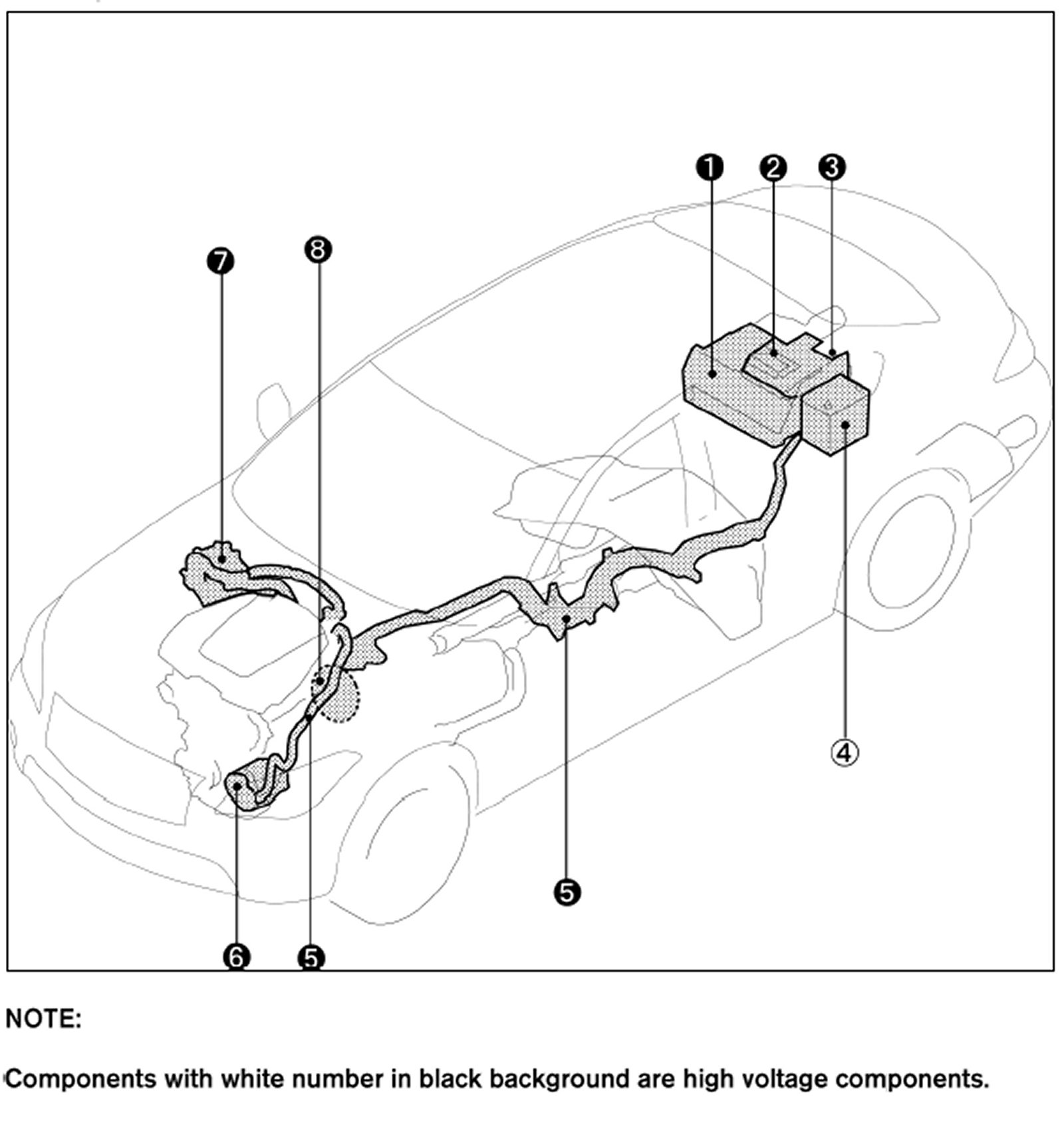

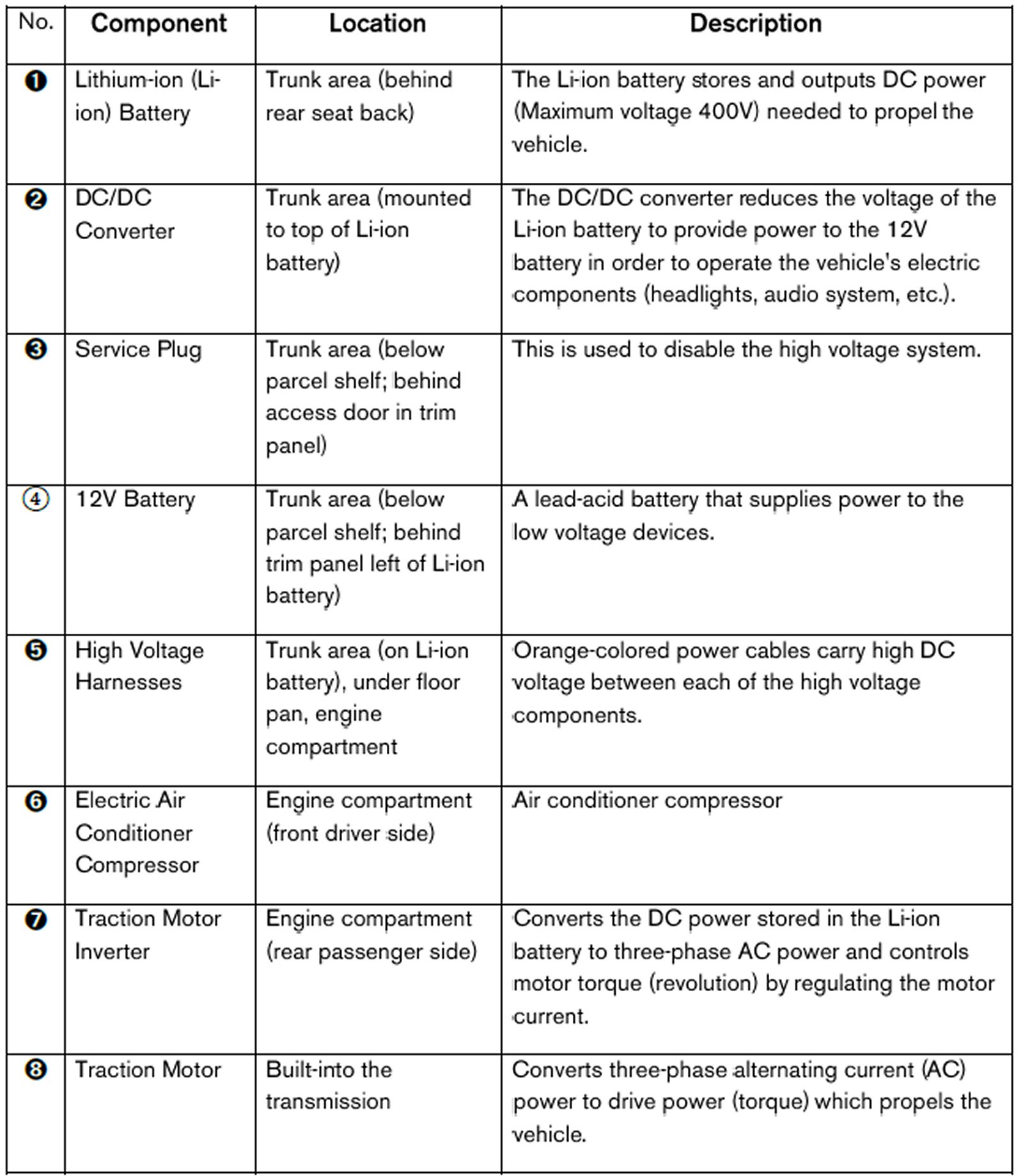

High Voltage Related and 12V Related Component Locations and Descriptions
