DIAGNOSIS AND REPAIR WORK FLOW

Question Sheet


DESCRIPTION






There are many operating conditions that may cause a malfunction of the hybrid system parts. By understanding those conditions properly, a quick and exact diagnosis can be achieved.

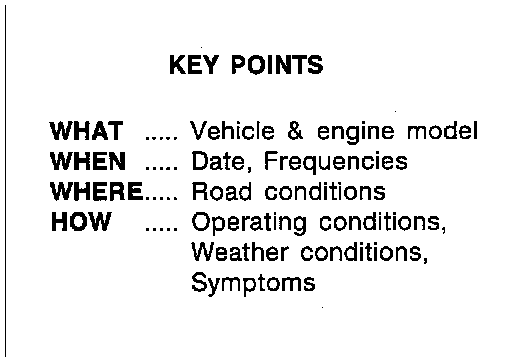

In general, customers have their own criteria for a problem. Therefore, it is important to understand the symptom and status well enough by asking the customer about his/her concerns carefully.
Use the diagnosis sheet to systemize all information related to malfunction diagnosis.
In some cases, multiple conditions that appear simultaneously may activate the hybrid system warning lamp, which causes a DTC to be detected.

EXAMPLE OF QUESTION SHEET
