Traction Motor Inverter




TRACTION MOTOR INVERTER

Reference Value


CONSULT DATA MONITOR STANDARD VALUE

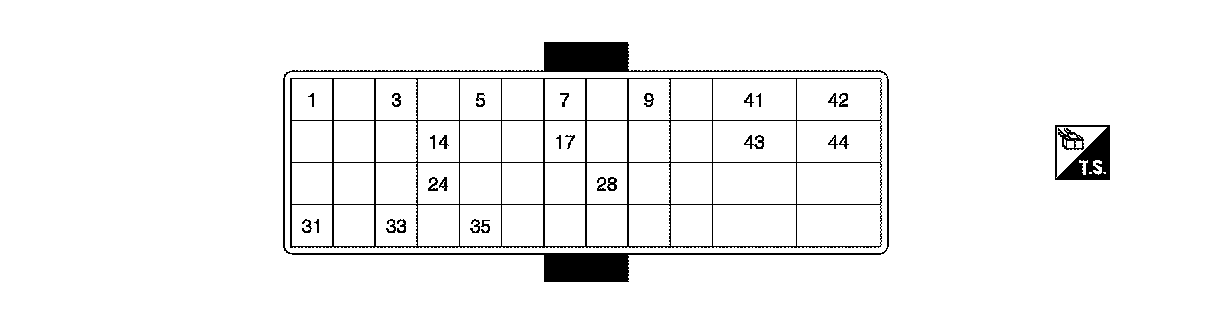

TERMINAL LAYOUT

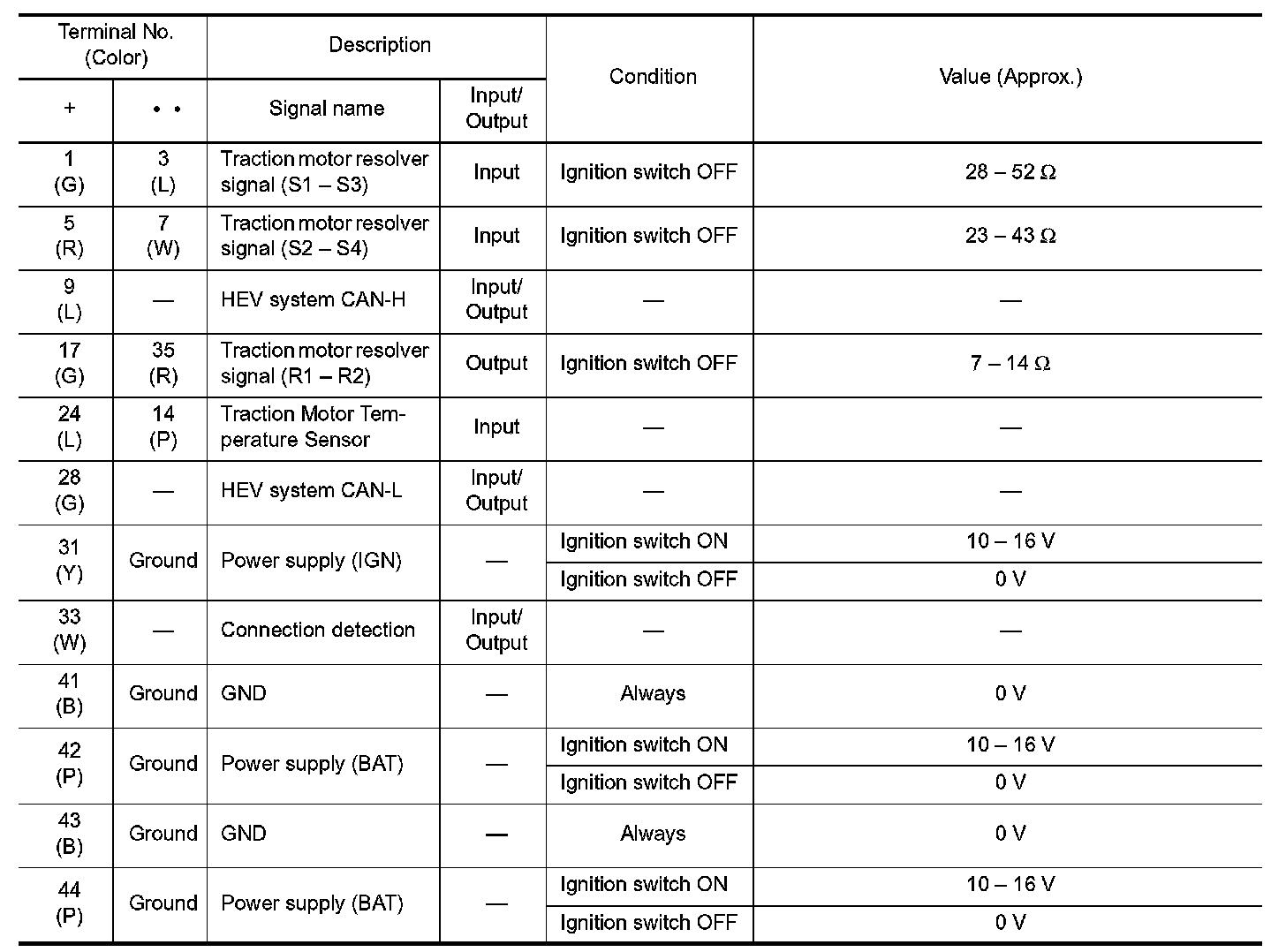

PHYSICAL VALUES
