System Description

SYSTEM

FRONT FOG LIGHT REMINDER WARNING CHIME : System Description

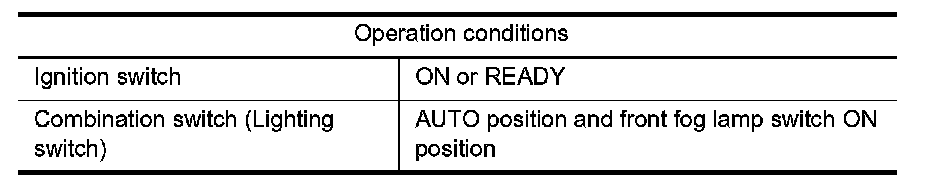

WARNING CHIME OPERATION CONDITIONS

Warning chime sounds for 2 seconds when the power switch is positioned at LOCK, OFF, or ACC if all the conditions described in the following table are satisfied.






SIGNAL PATH

1.BCM requires warning chime output to combination meter when it judges front fog light reminder warning chime is necessary from signals below.





2.Combination meter sounds integrated buzzer, following the warning chime output requirement (below signal) from BCM.






TIMING CHART
