Pinout Values and Diagnostic Parameters

COMBINATION METER

Reference Value

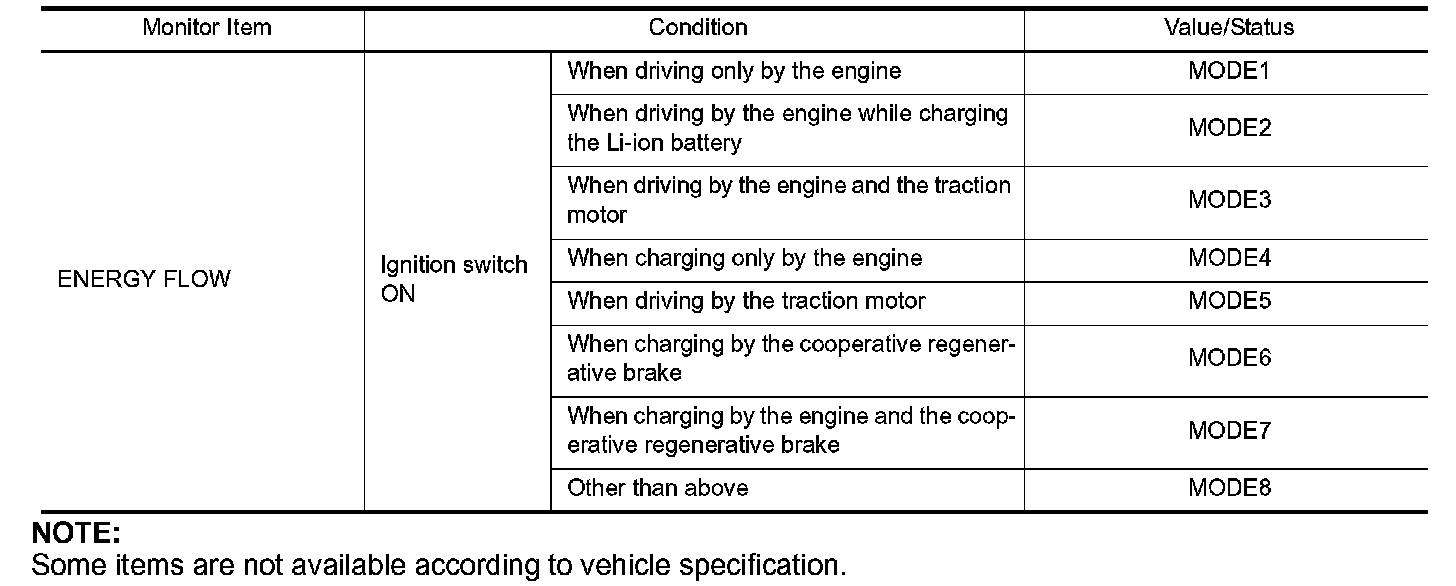

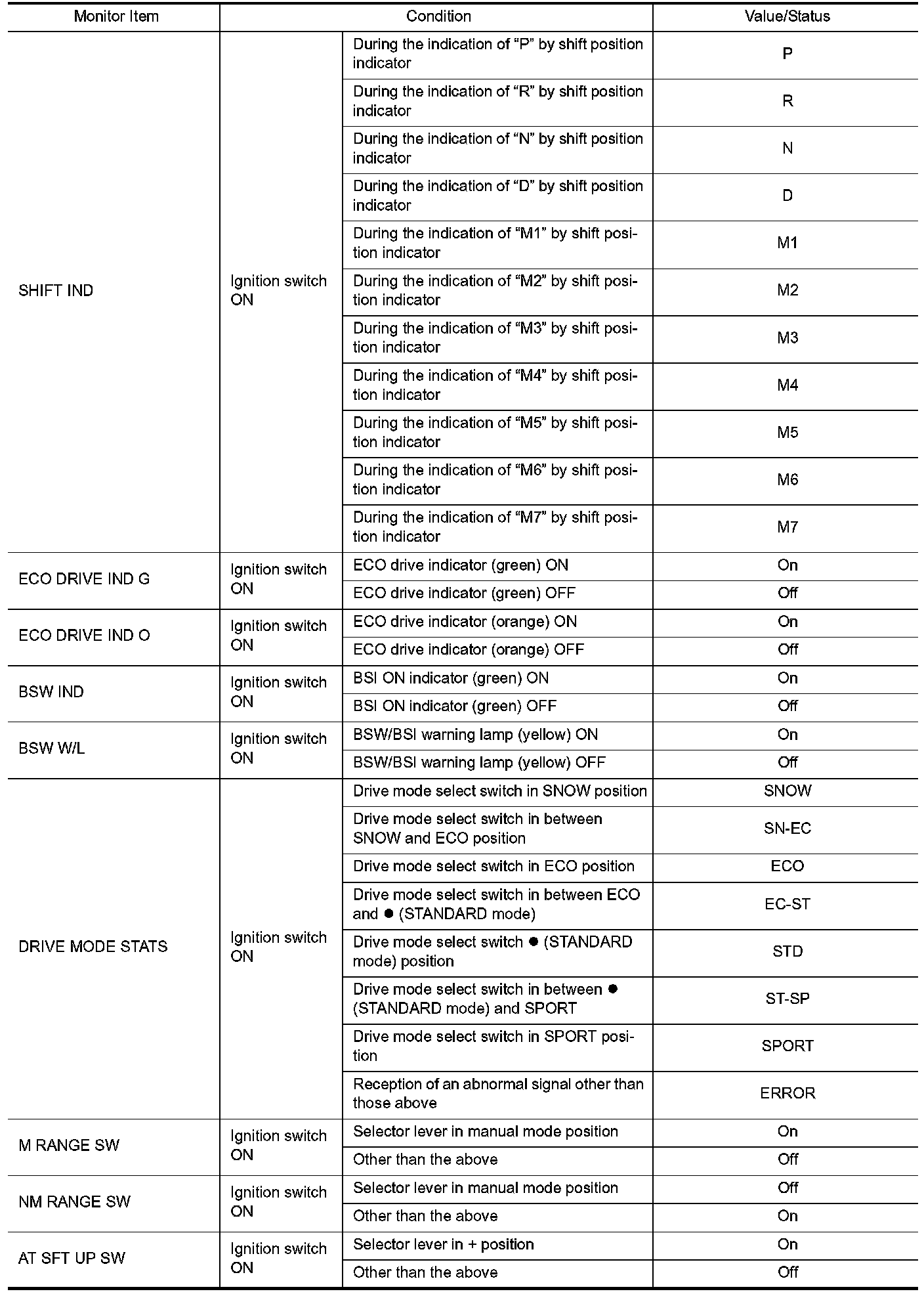

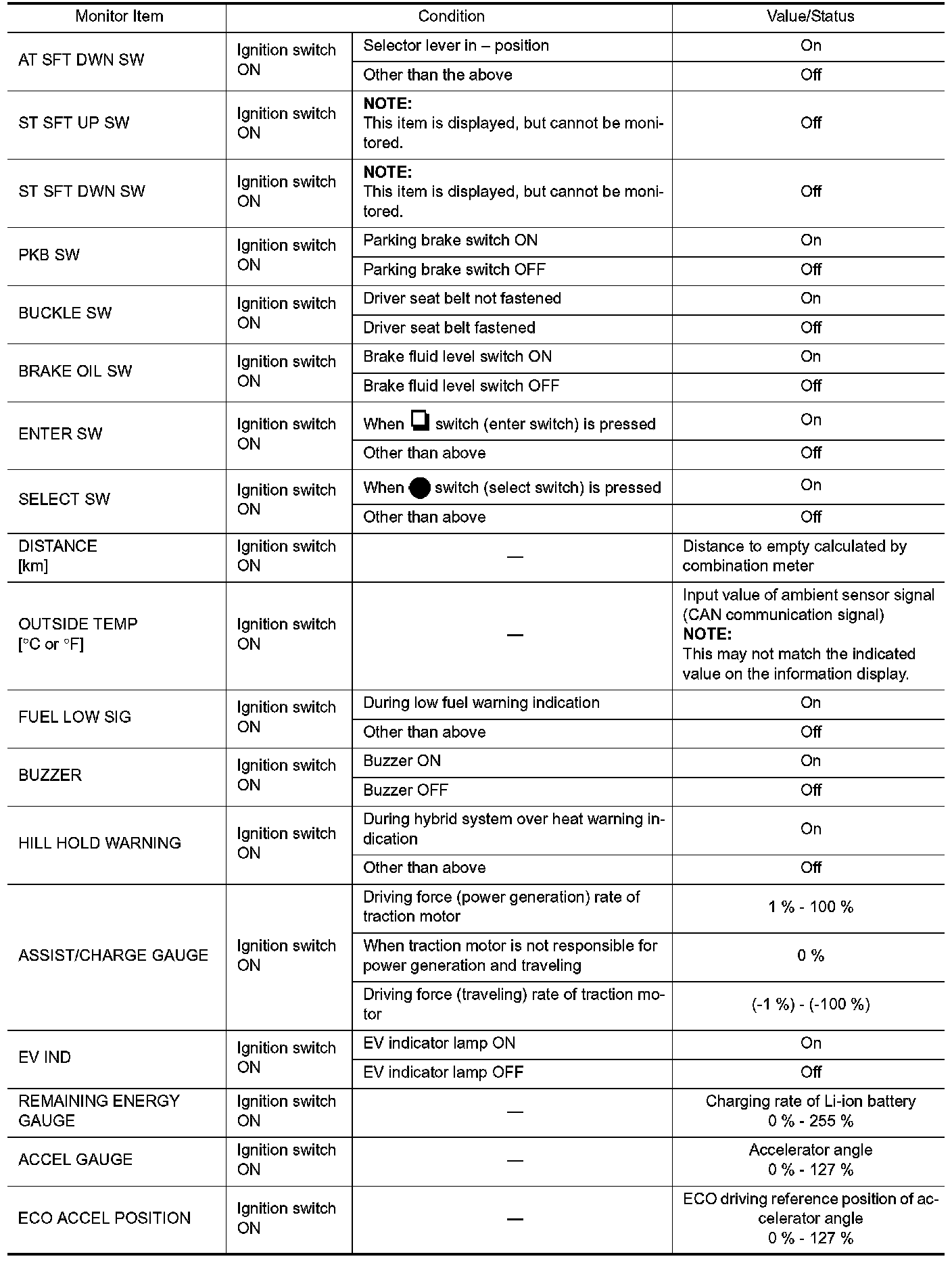

VALUES ON THE DIAGNOSIS TOOL































NOTE:
Some items are not available according to vehicle specification.

TERMINAL LAYOUT







PHYSICAL VALUES
