Active Adaptive Front-Lighting System
>>

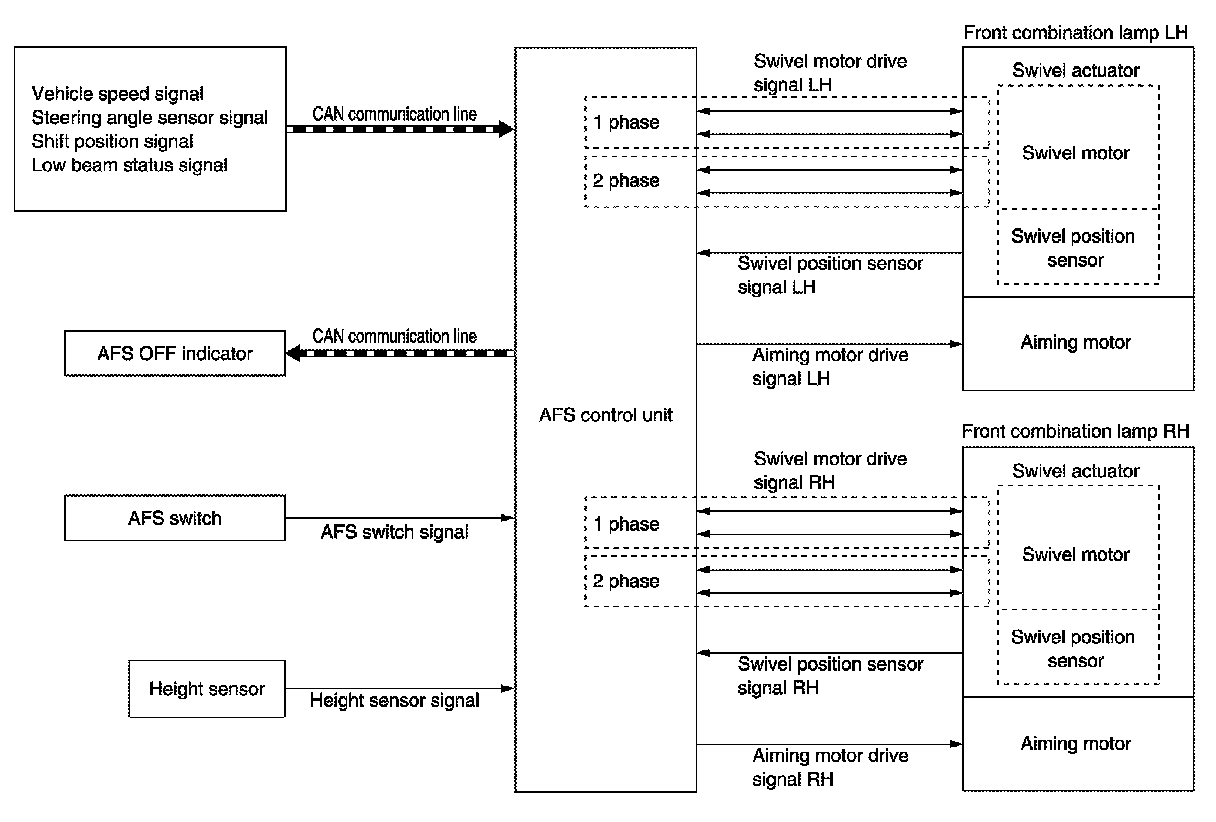

System Diagram
System Diagram
SYSTEM
ACTIVE ADAPTIVE FRONT-LIGHTING SYSTEM : System Diagram
