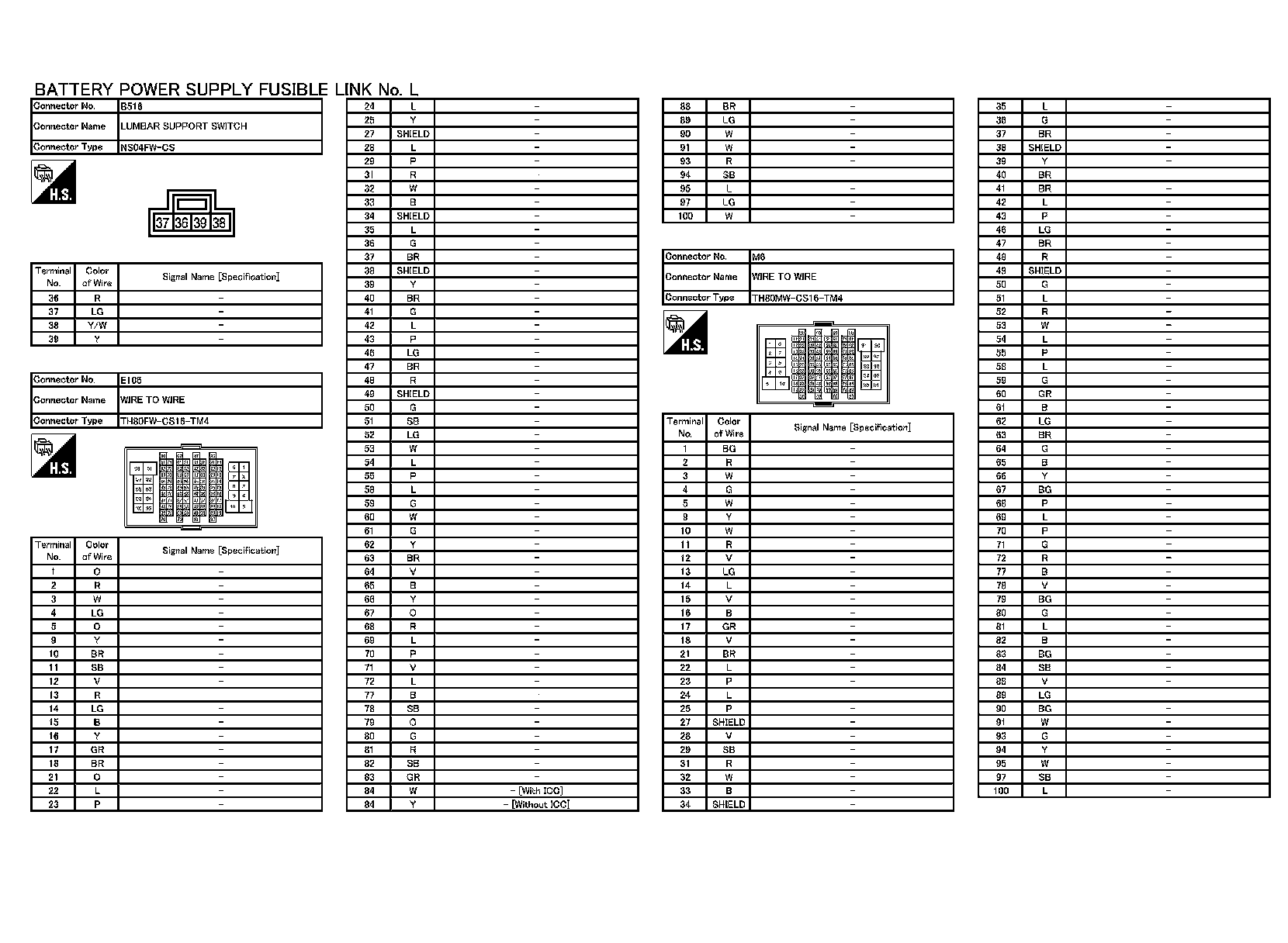

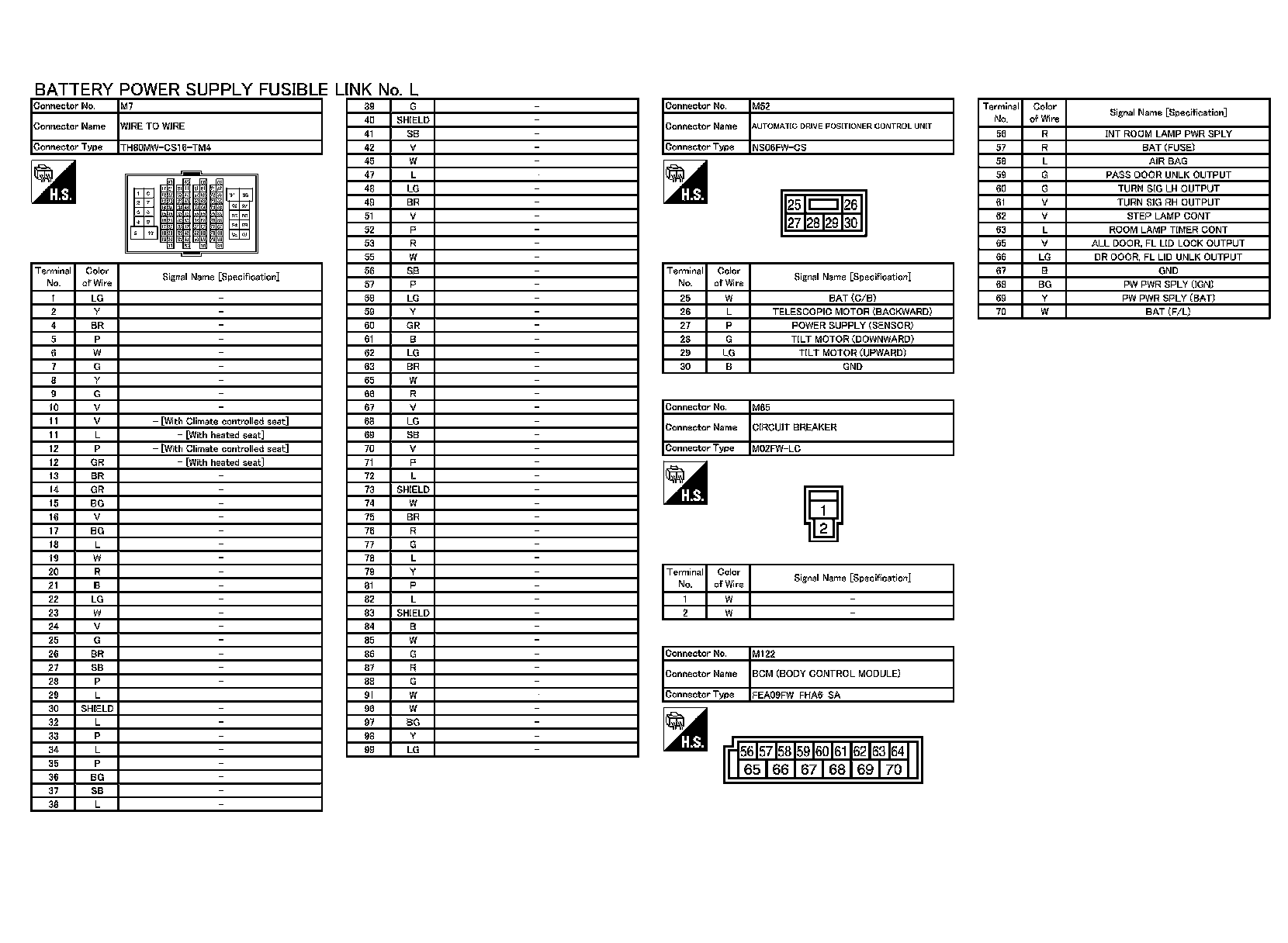

Battery Power Supply Fusible Link No. L
Battery Power Supply Fusible Link No. L
POWER SUPPLY ROUTING CIRCUIT

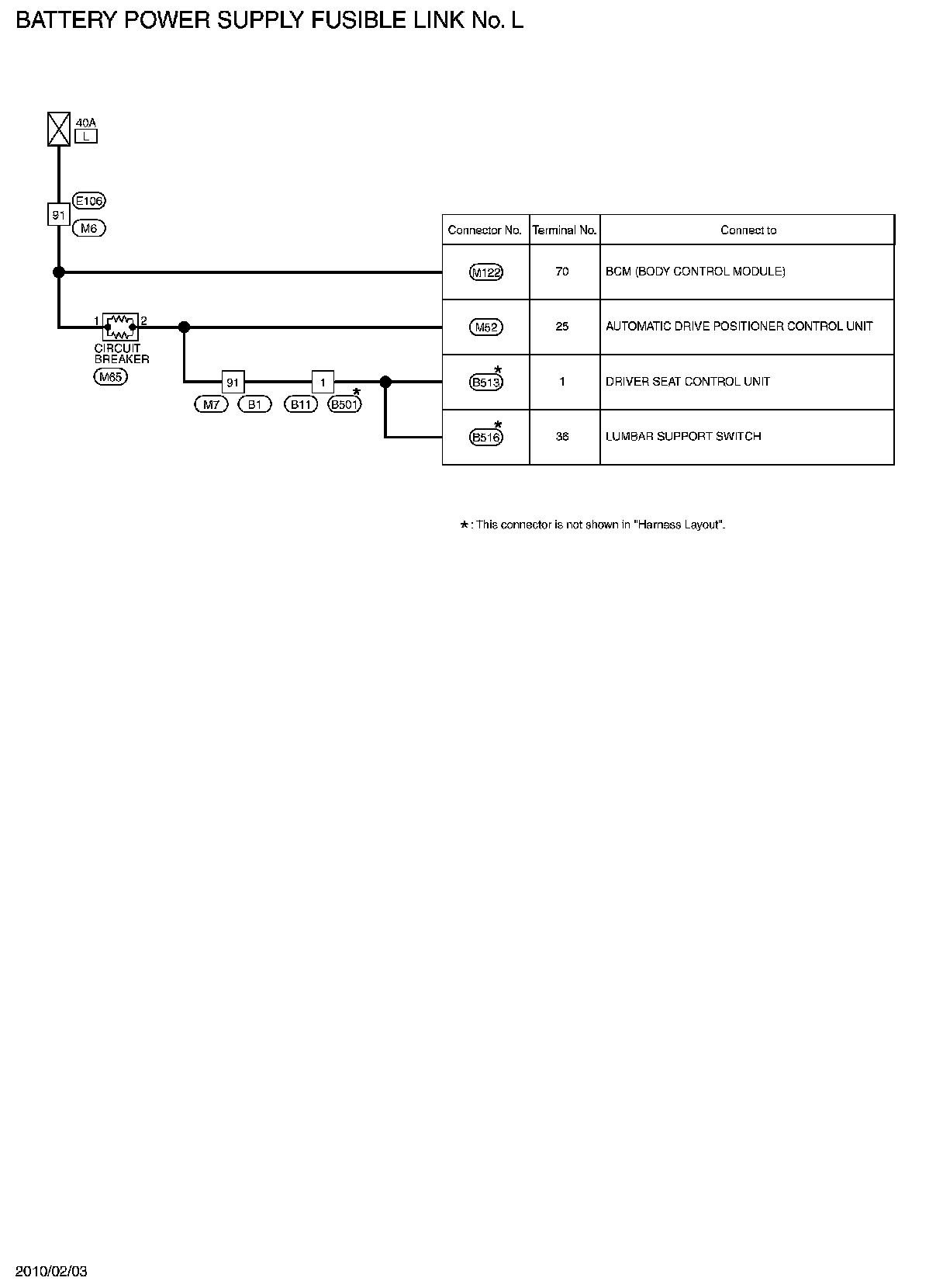

Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK
No. L
