Relay Box: Locations




IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

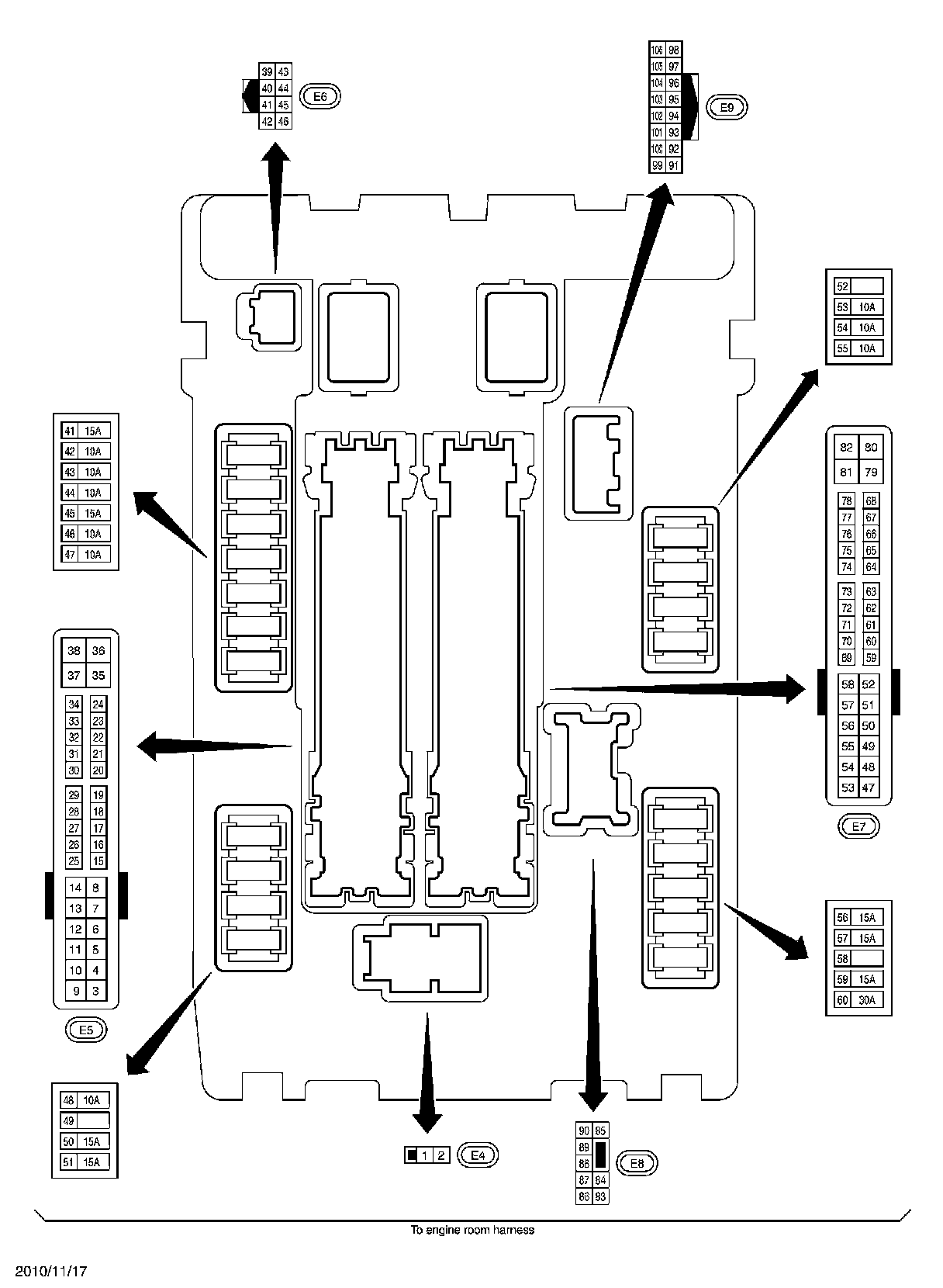

Fuse, Connector and Terminal Arrangement
