Pinout Values and Diagnostic Parameters

PRE-CRASH SEAT BELT SYSTEM

Reference Value

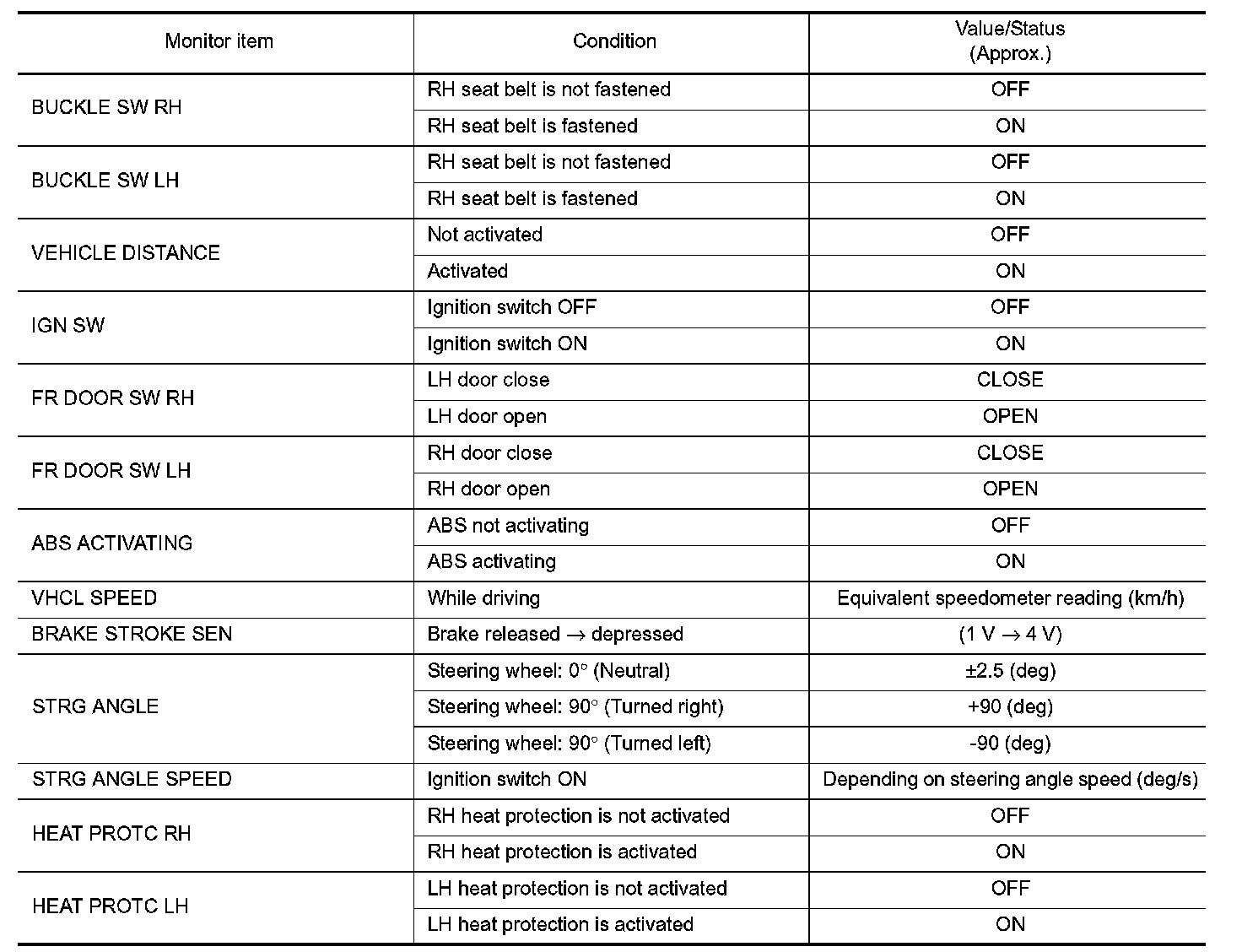

VALUES ON THE DIAGNOSIS TOOL

CONSULT MONITOR ITEM

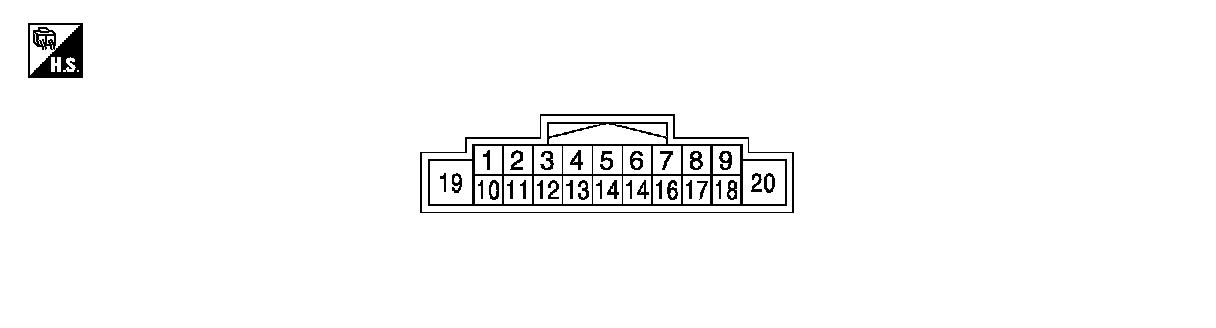

TERMINAL LAYOUT

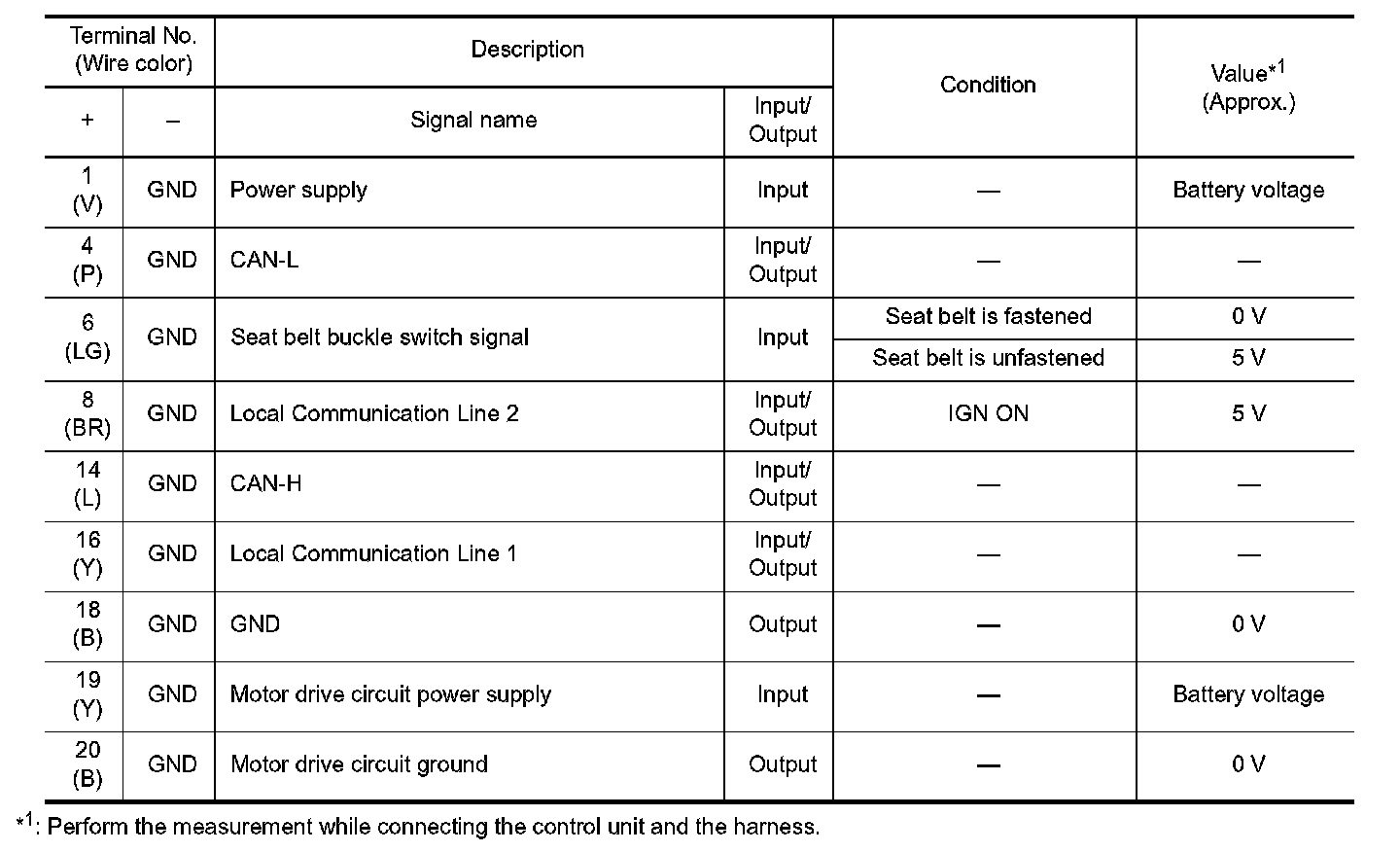

PHYSICAL VALUES (DRIVER SIDE)

PHYSICAL VALUES (PASSENGER SIDE)
