Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2012
>>
M37 V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sunroof / Moonroof
Sunroof / Moonroof
SUNROOF MOTOR ASSEMBLY

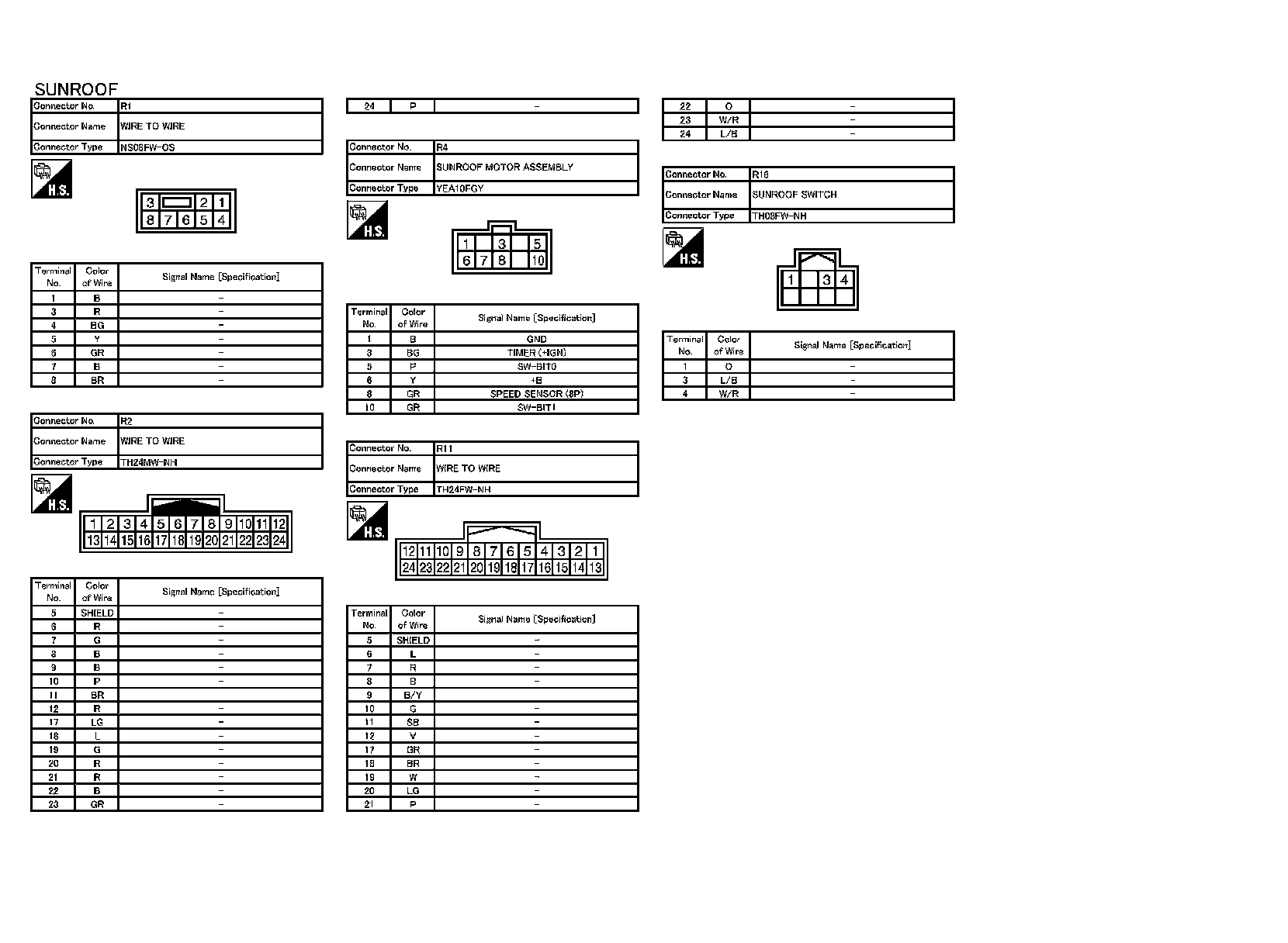

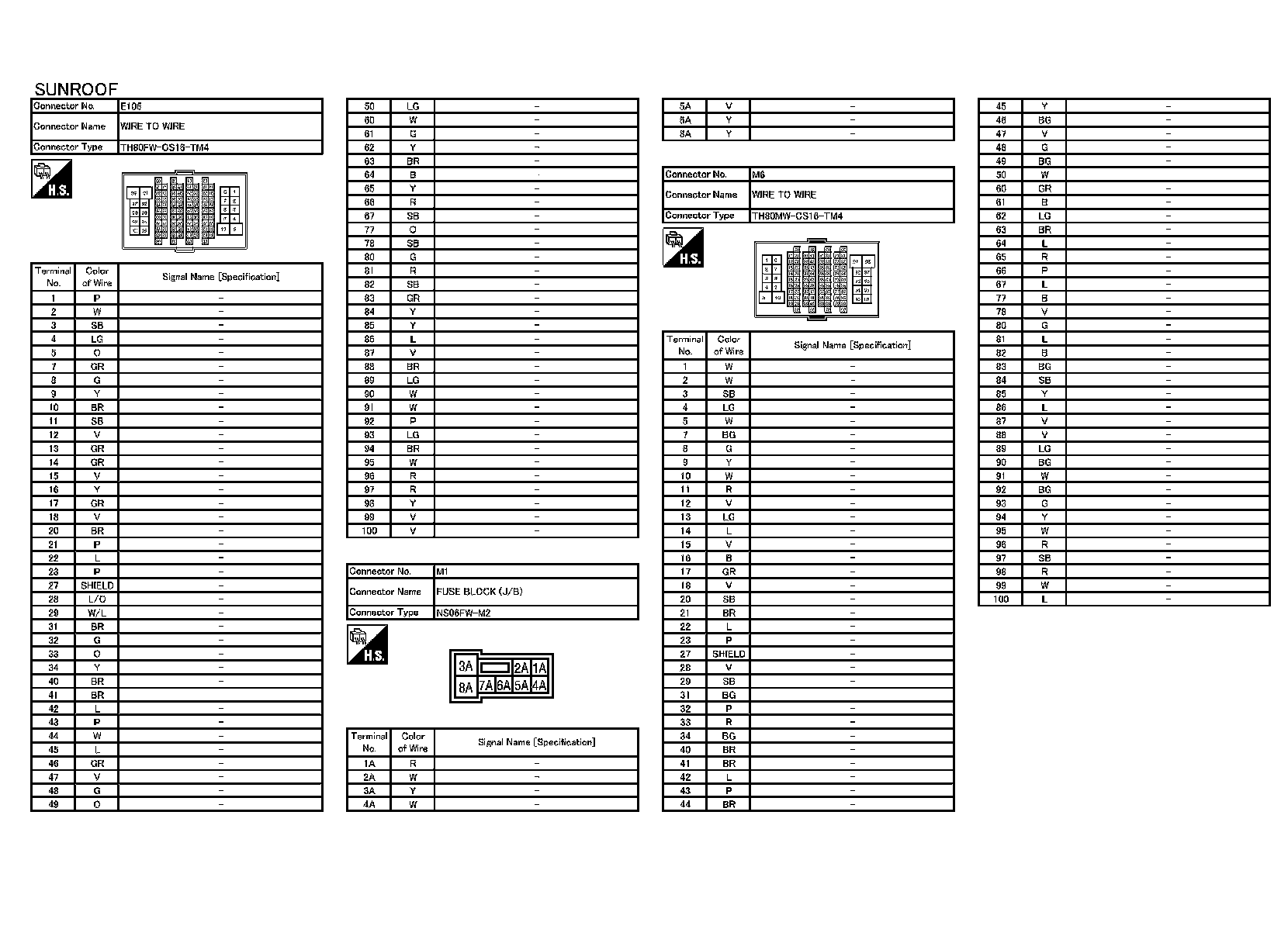

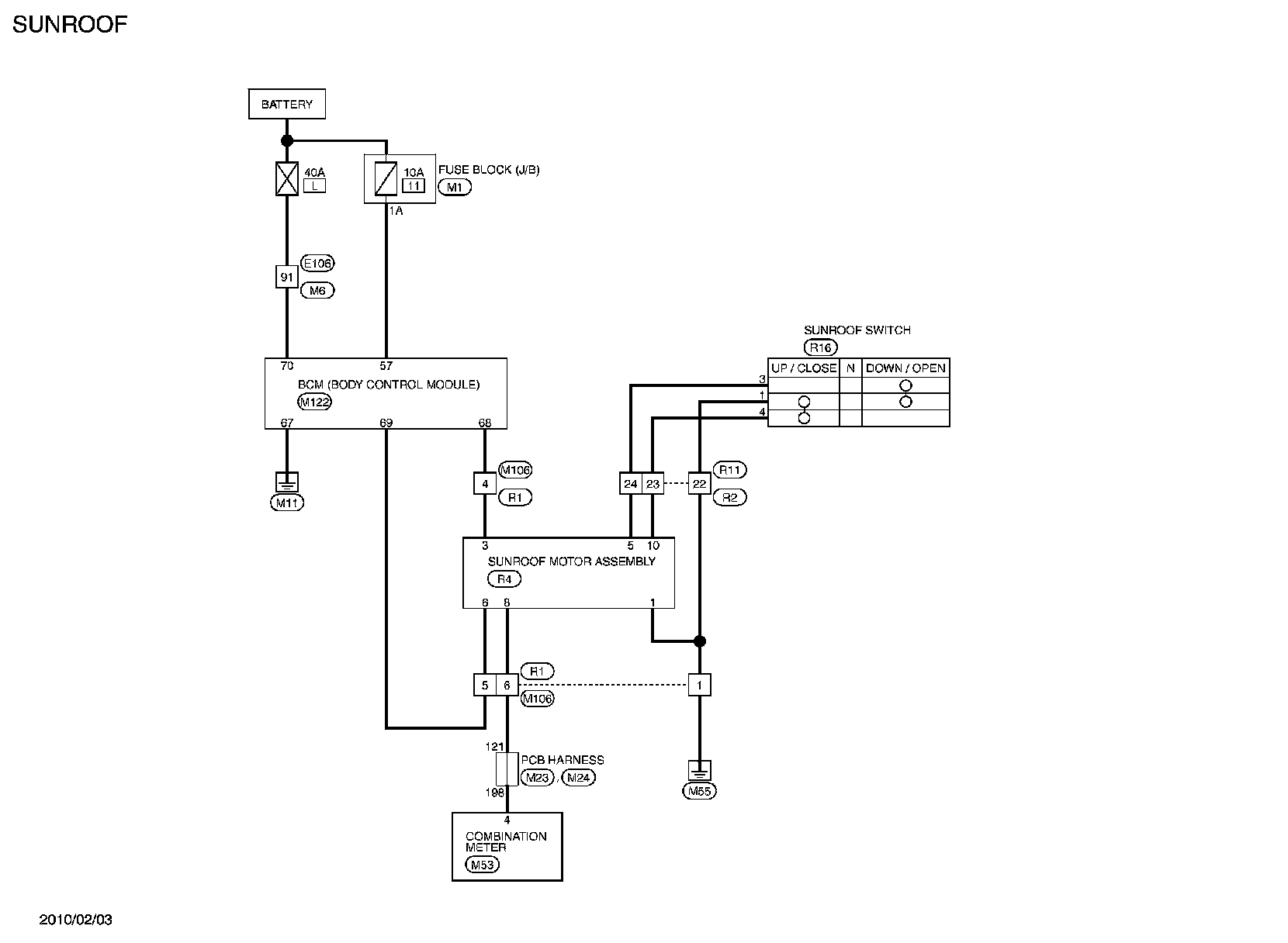

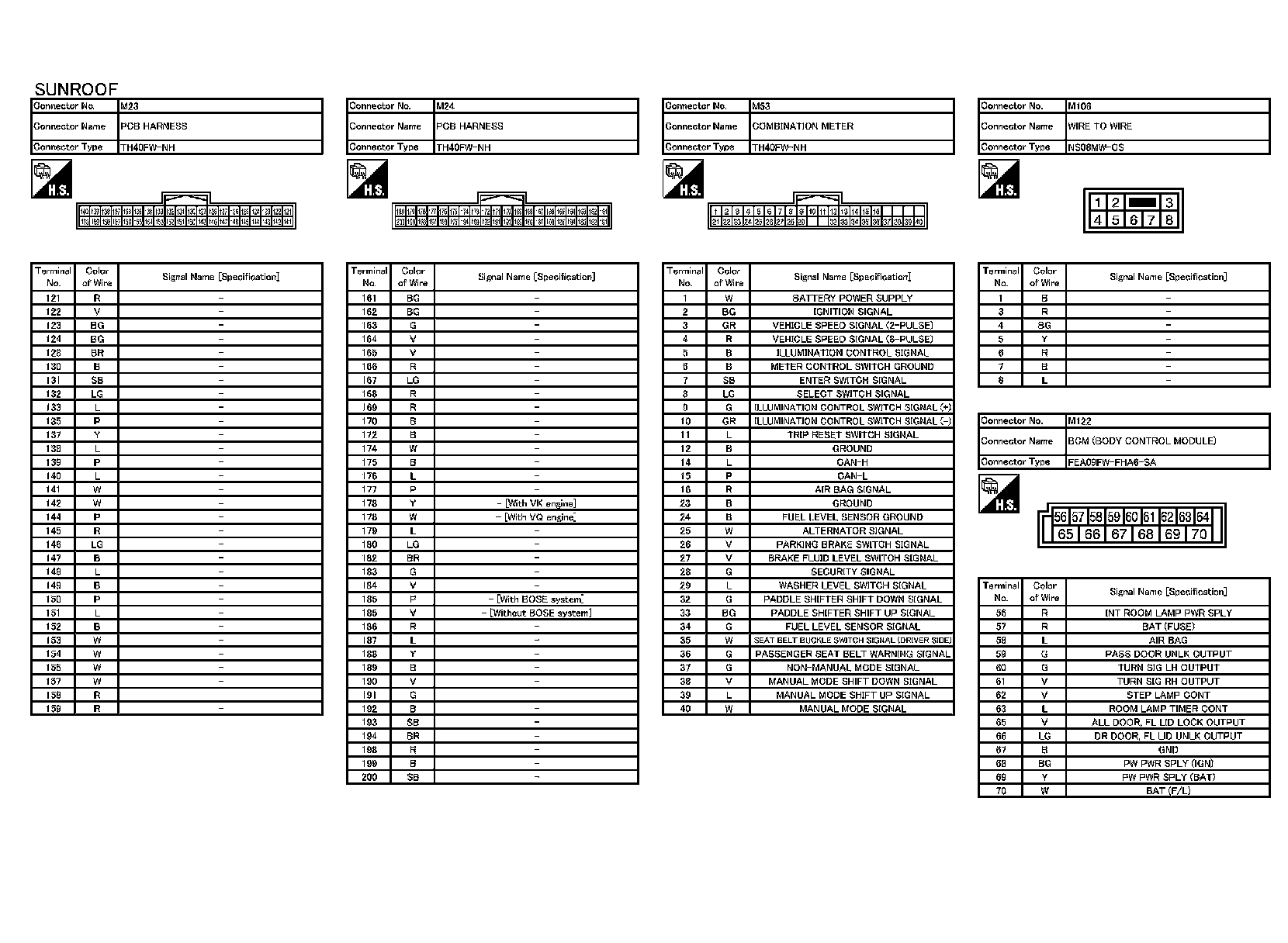

Wiring Diagram
