Exterior - Rear Wheel 'Wind Deflector' Loose

Classification: BT11-025

Reference: ITB11-044

Date: July 20, 2011

REAR WHEEL "WIND DEFLECTOR" LOOSE

APPLIED VEHICLE(S): 2011-2012M (Y51)

APPLIED VIN/DATE: 2011 ALL
2012 vehicle built before: M37 JN1BY1AP(*)CM332302/July 4, 2011
M37x JN1BY1AR(*)CM392701/July 4, 2011
M56 JN1AY1AP(*)CM530169/July 4, 2011
M56x JN1AY1AR(*)CM580161/July 4, 2011
MHybrid JN1EY1AP(*)CM910548/July 4, 2011

SERVICE INFORMATION

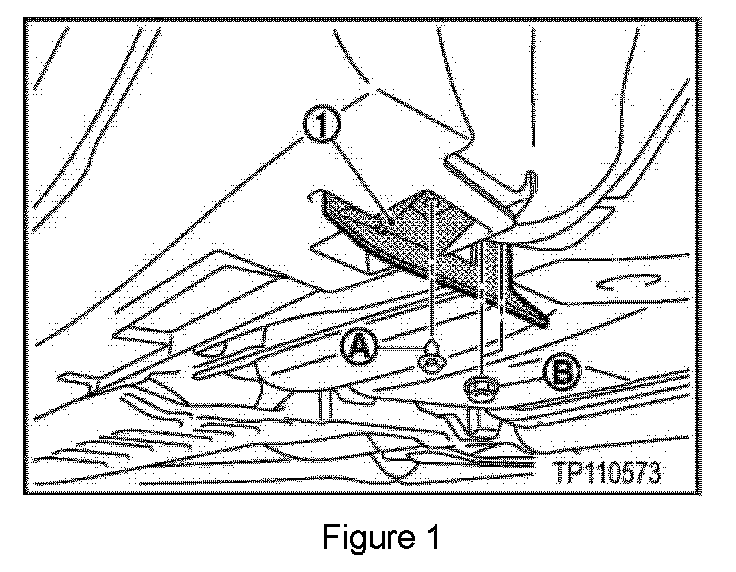

If Wind Deflector (part 1 in figure 1) is found to be loose replace Fixing Clip (part A Figure 1) with new number listed under parts information.

SERVICE PROCEDURE

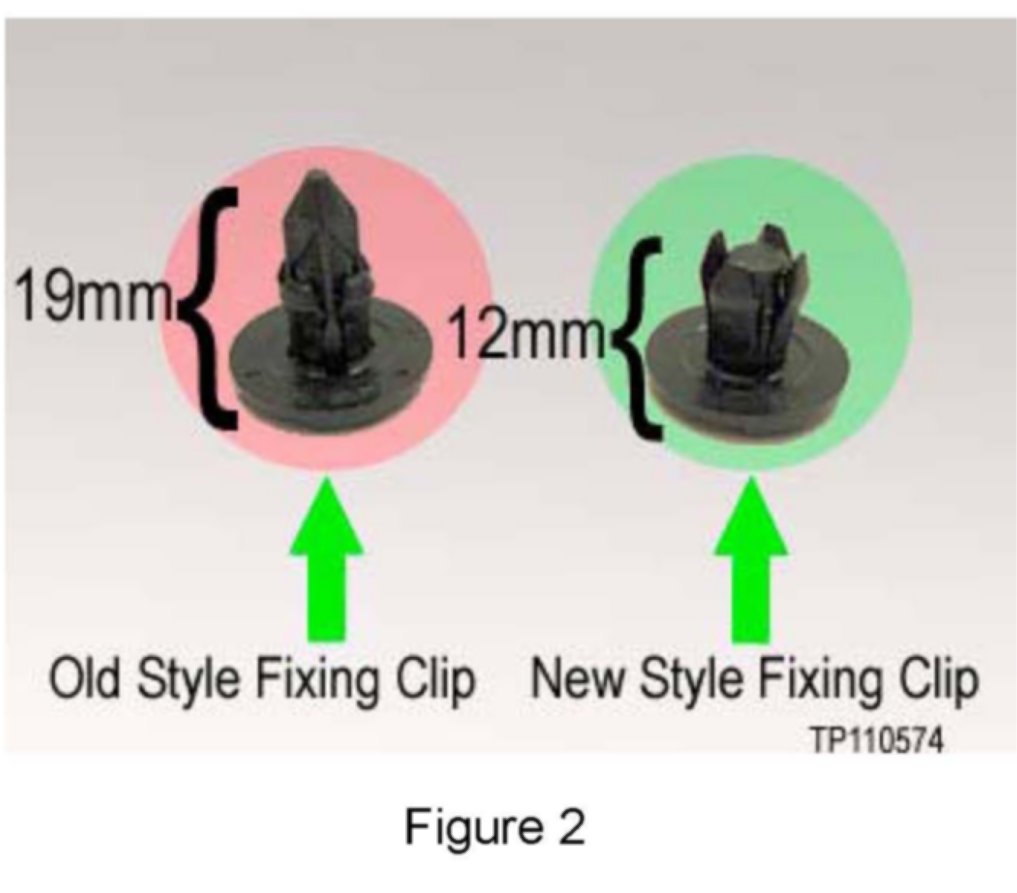

If one or both deflectors are either being replaced or are loose replace both Fixing Clips with shorter style shown in Figure 2.

Left rear Wind Deflector shown as part Number 1.

Fixing Clip shown as part "A".

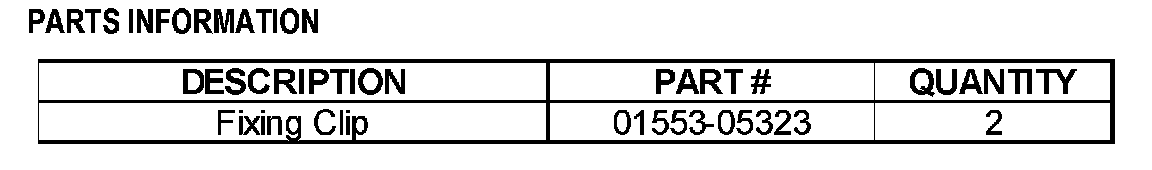

PARTS INFORMATION
