Wiper Arm: Adjustments

FRONT WIPER ARM

Adjustment

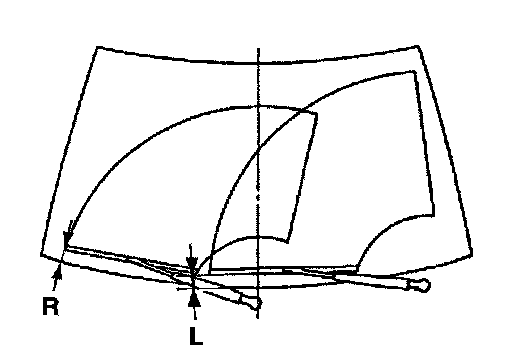

WIPER BLADE POSITION ADJUSTMENT

- Driver side (L): Clearance between the end of cowl top cover and the wiper blade tip (top of wiper blade center)
- Passenger side (R): Clearance between the end of front fender cover and the wiper blade tip (top of wiper blade center)

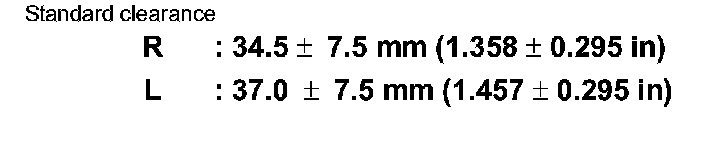

Standard clearance
