Door Mirror

DOOR MIRROR

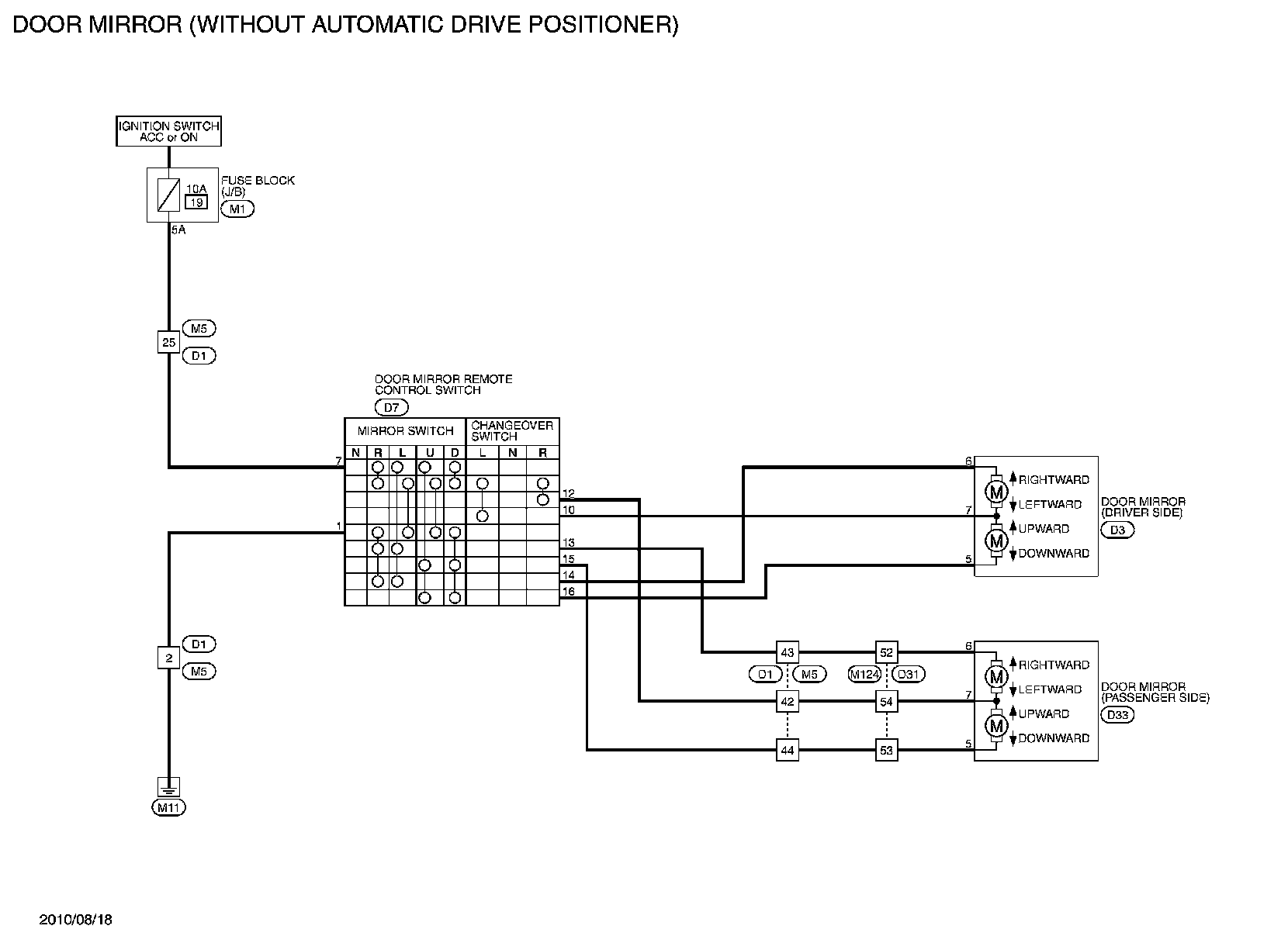

Wiring Diagram - DOOR MIRROR SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
