Intake Manifold

SERVICE DATA AND SPECIFICATIONS (SDS)

Intake Manifold


INTAKE MANIFOLD

Unit: mm (in)





Stud Bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)

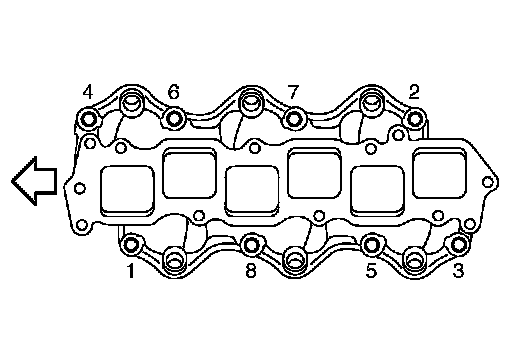

Tighten all mounting bolts to the specified torque in two or more steps in numerical order as shown in the figure.

CAUTION:
Install intake manifold with the marks (put on the intake manifold and the cylinder head before removal) aligned.

Step 1 7.4 Nm (0.75 kg-m, 5 ft-lb)
Step 2 25.5 Nm (2.6 kg-m, 19 ft-lb)


Intake Manifold Collector:

Stud Bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)





Tighten mounting bolts and nuts in numerical order as shown in the figure.

Intake Manifold Collector Bolts 19.6 Nm (2.0 kg-m, 14 ft-lb)

Intake Manifold Collector Nuts 19.6 Nm (2.0 kg-m, 14 ft-lb)
