Tightening Torque Table (New Standard Included)

TIGHTENING TORQUE OF STANDARD BOLTS

Tightening Torque Table (New Standard Included)

CAUTION:
- The special parts are excluded.
- The bolts/nuts in these tables have a strength (discrimination) number/symbol assigned to the head or the like. As to the relation between the strength grade in these tables and the strength (discrimination) number/symbol, refer to "DISCRIMINATION OF BOLTS AND NUTS".

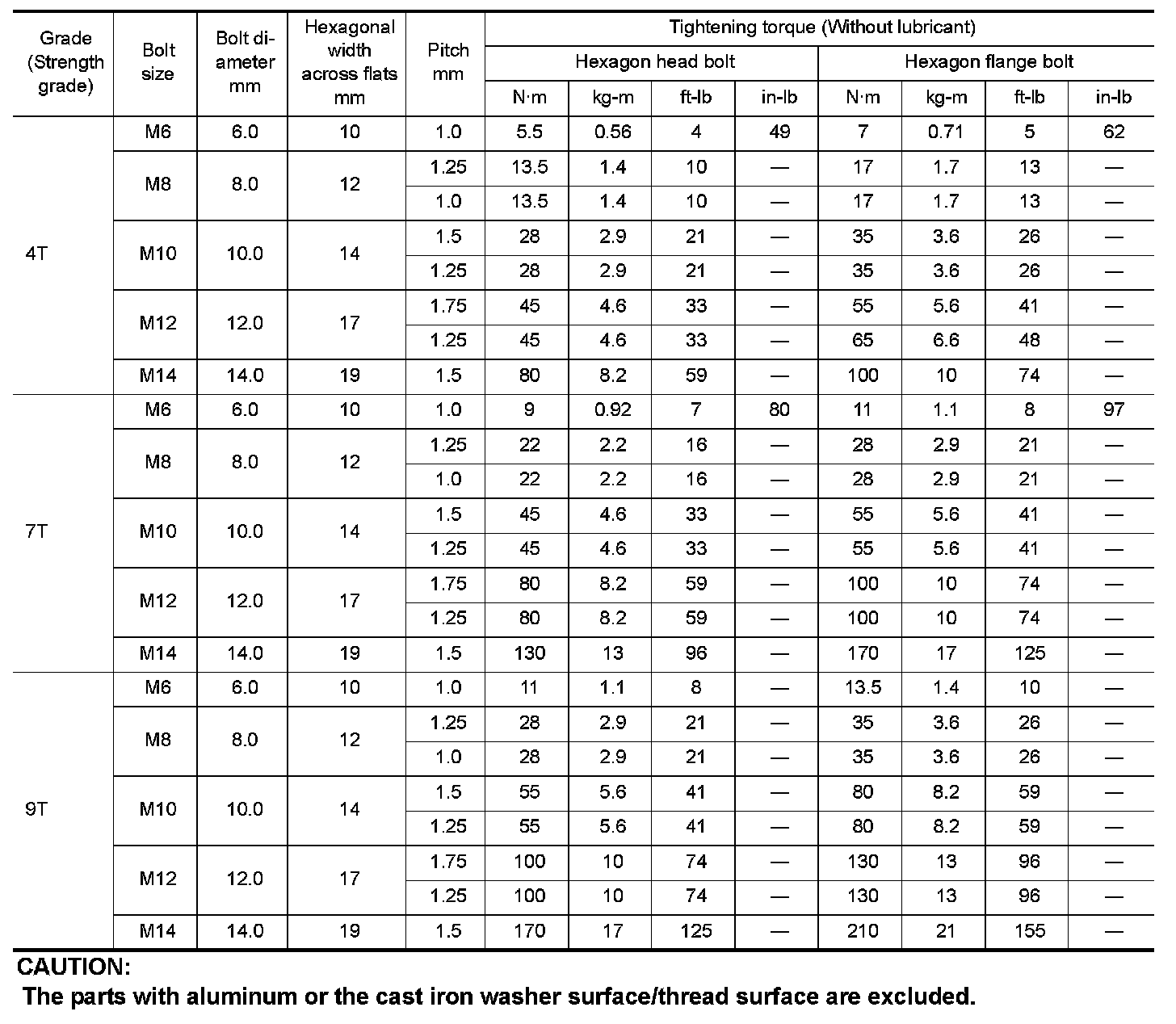

PREVIOUS STANDARD

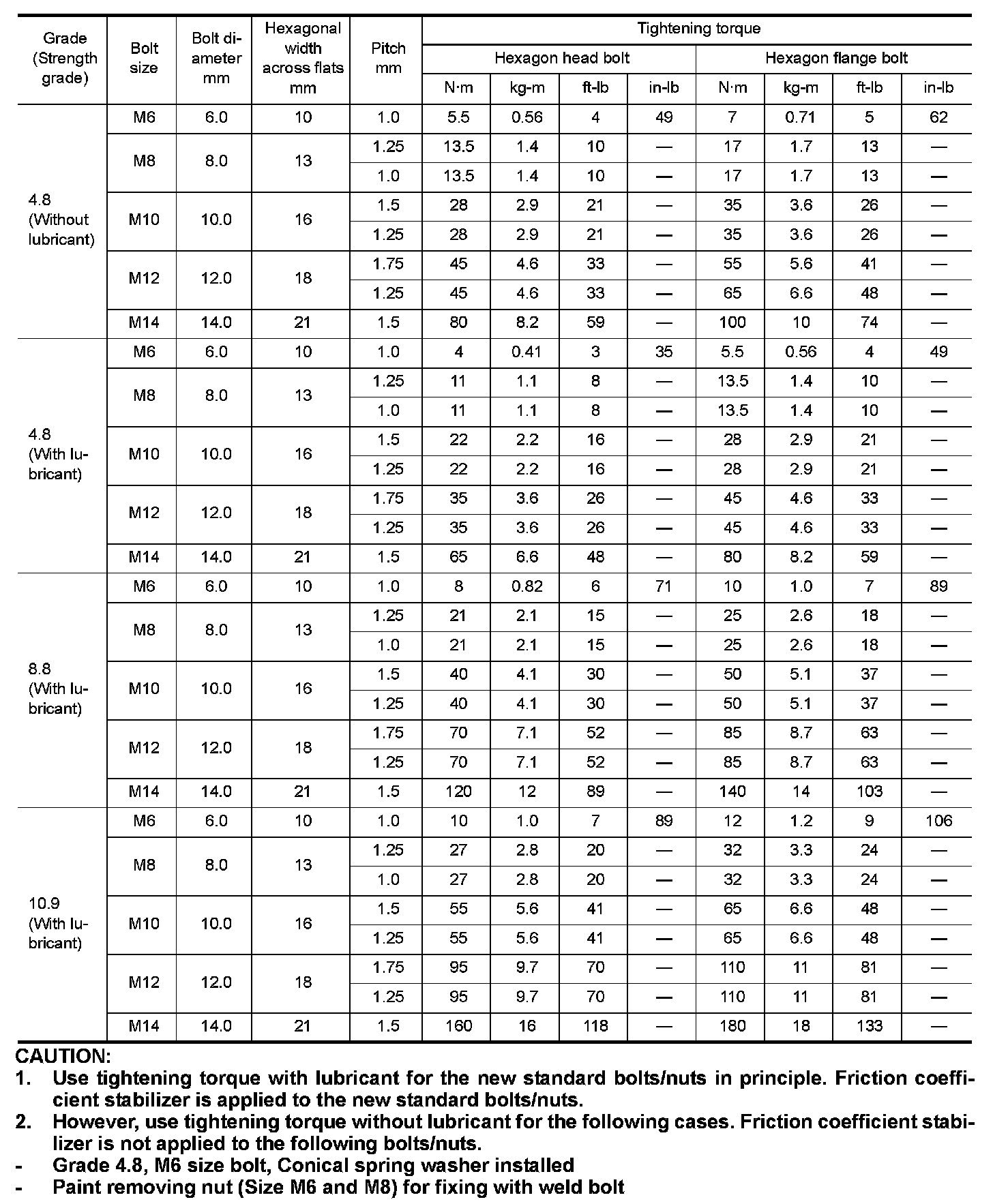

NEW STANDARD BASED ON ISO

DISCRIMINATION OF BOLTS AND NUTS
