Unit Disassembly and Assembly




TRANSMISSION ASSEMBLY

Exploded View

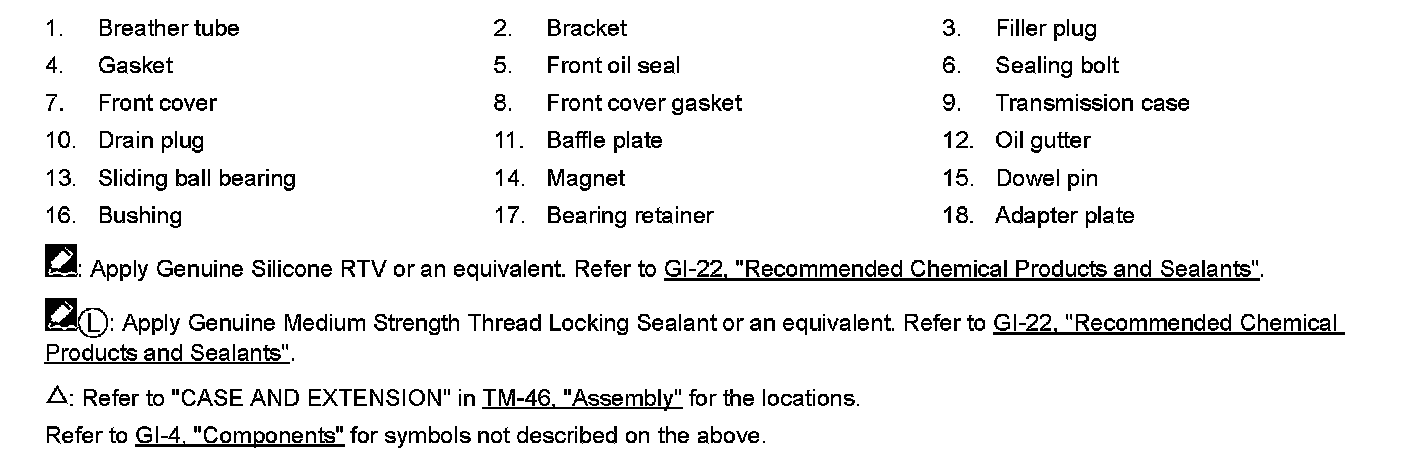

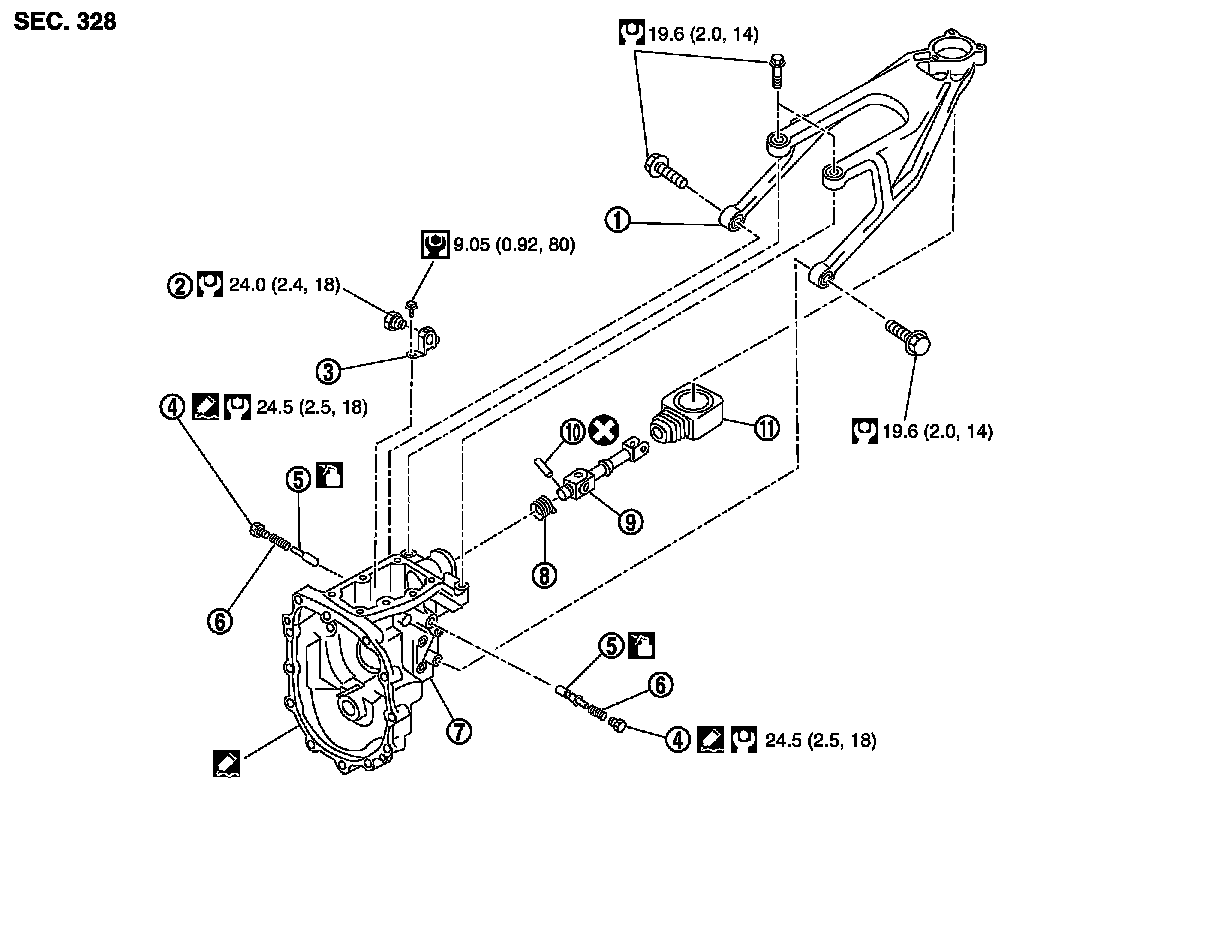

CASE AND EXTENSION

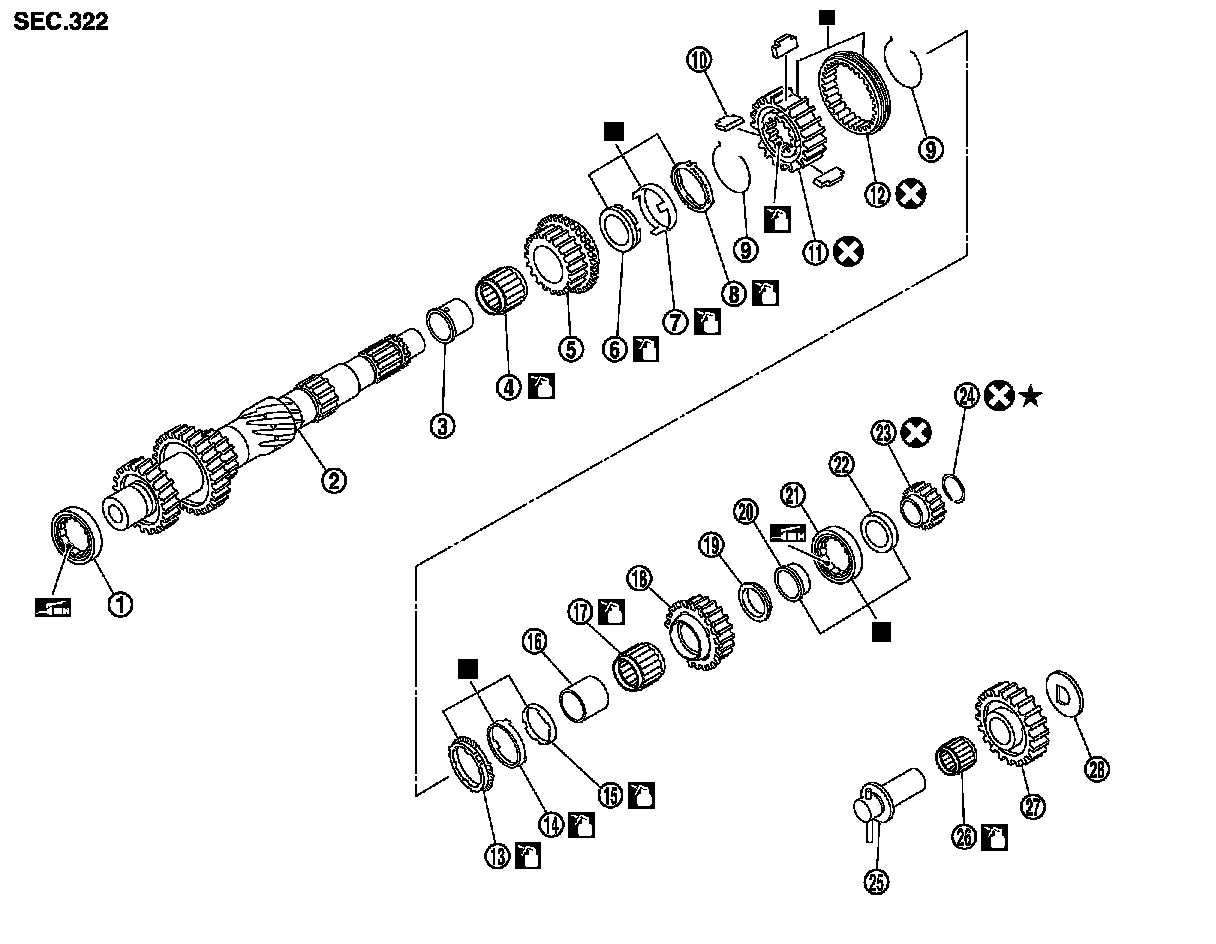

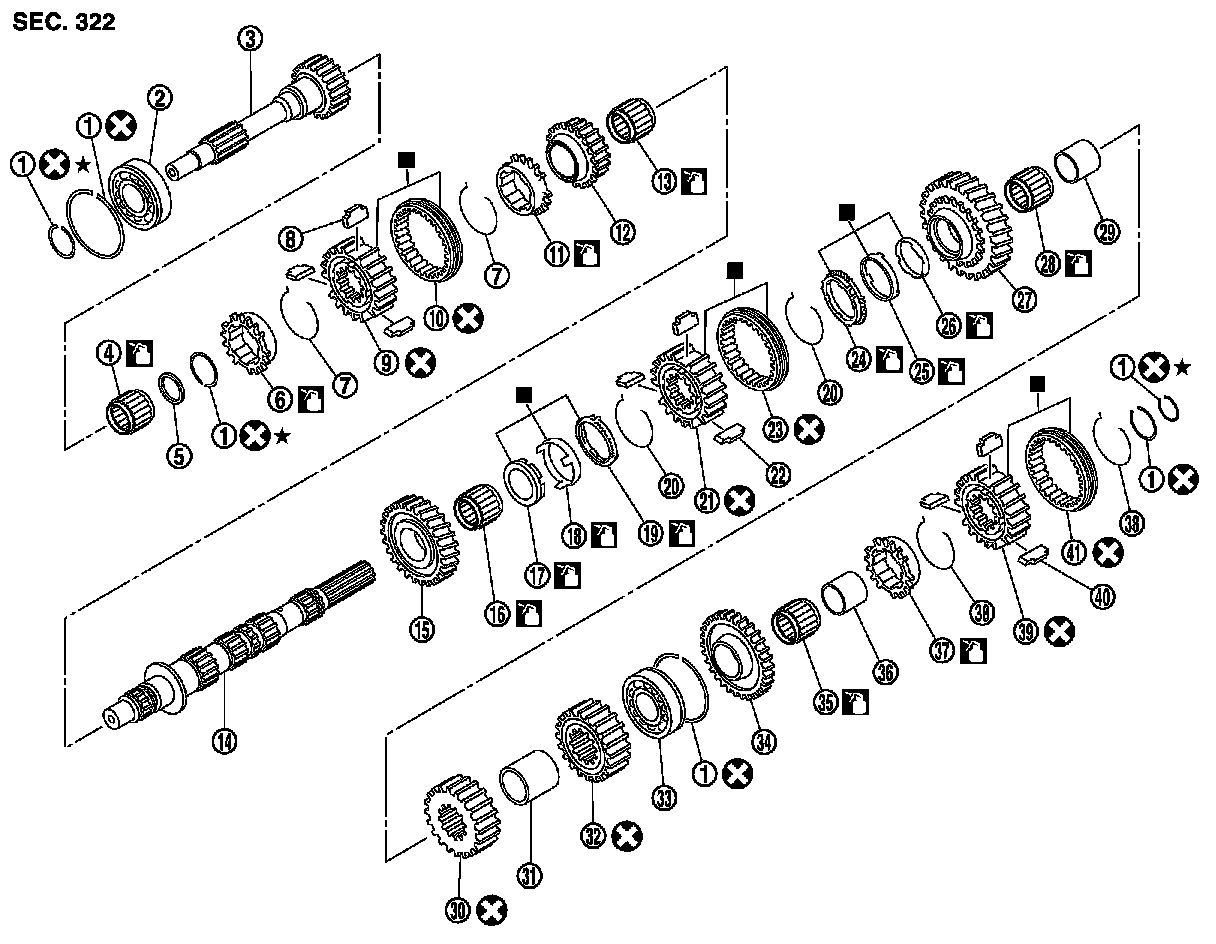

SHAFT AND GEAR

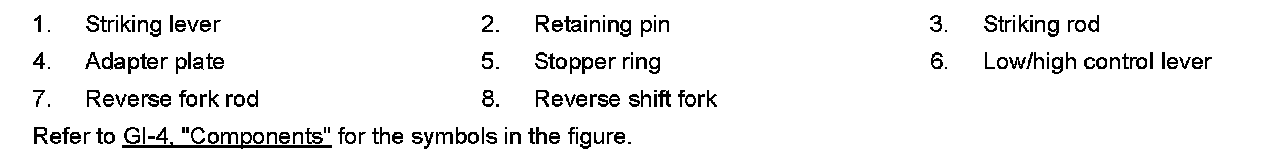

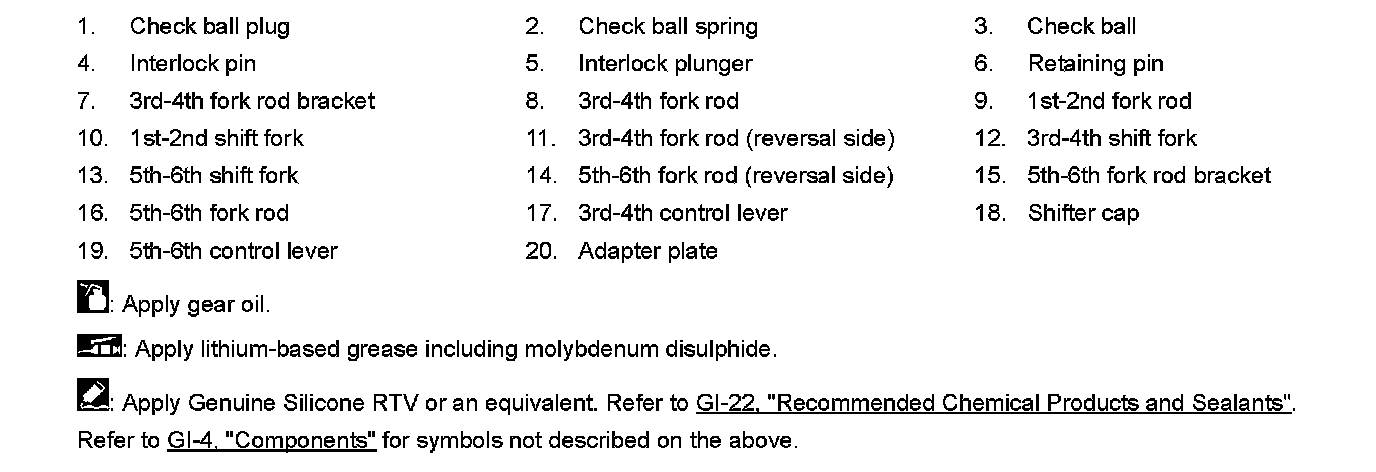

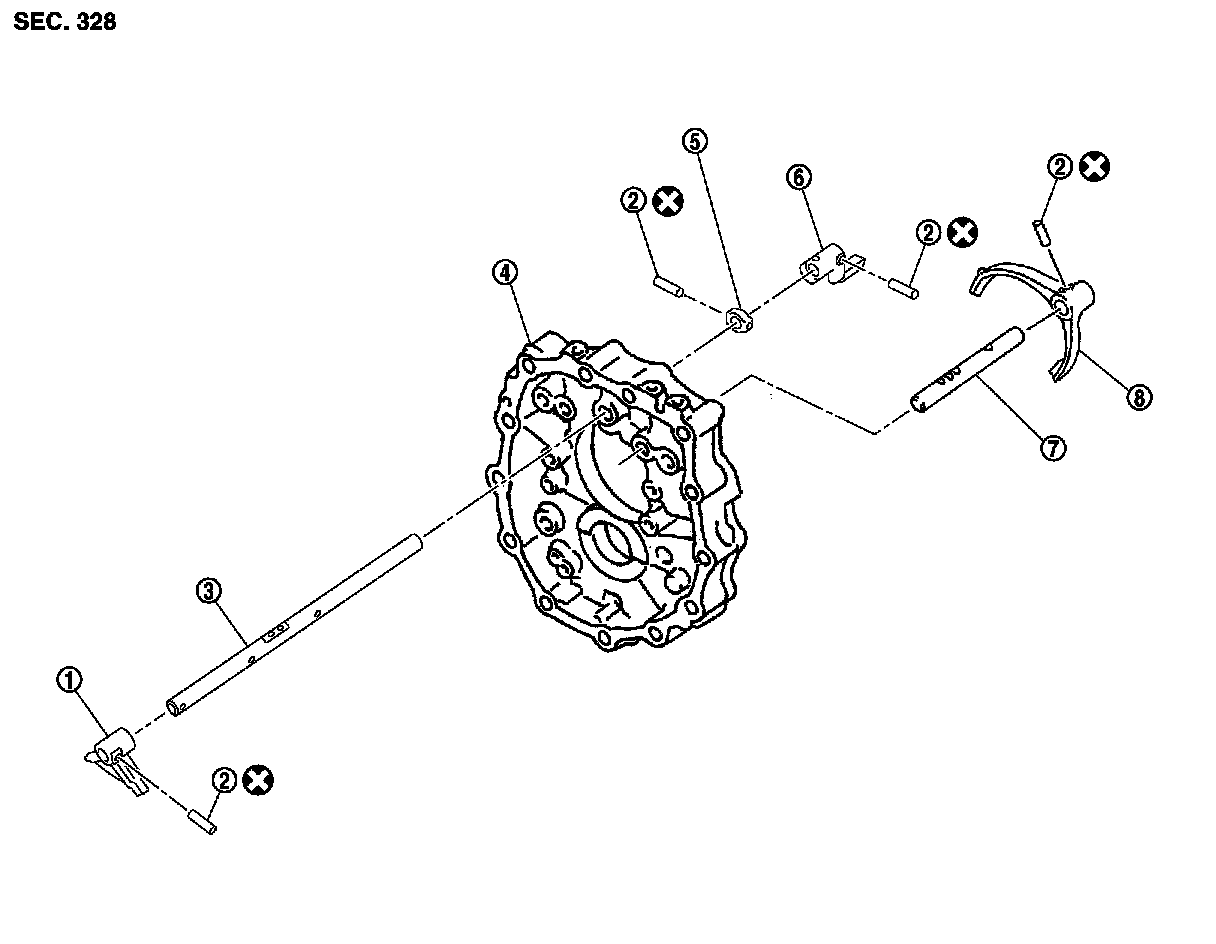

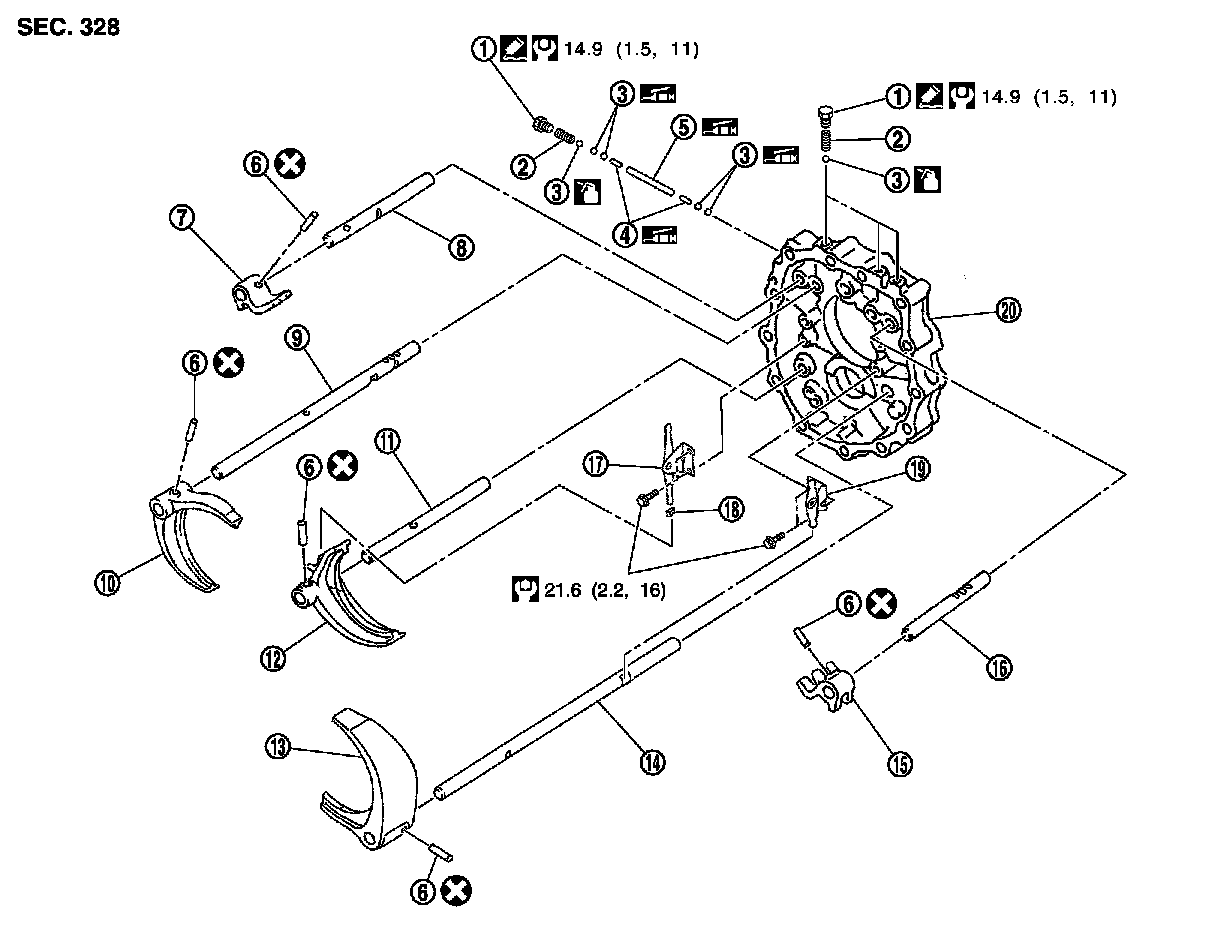

SHIFT FORK AND FORK ROD
