Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu Truck
>>
1993
>>
Pickup 2WD V6-3137cc 3.1L (CPC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
Computers and Control Systems

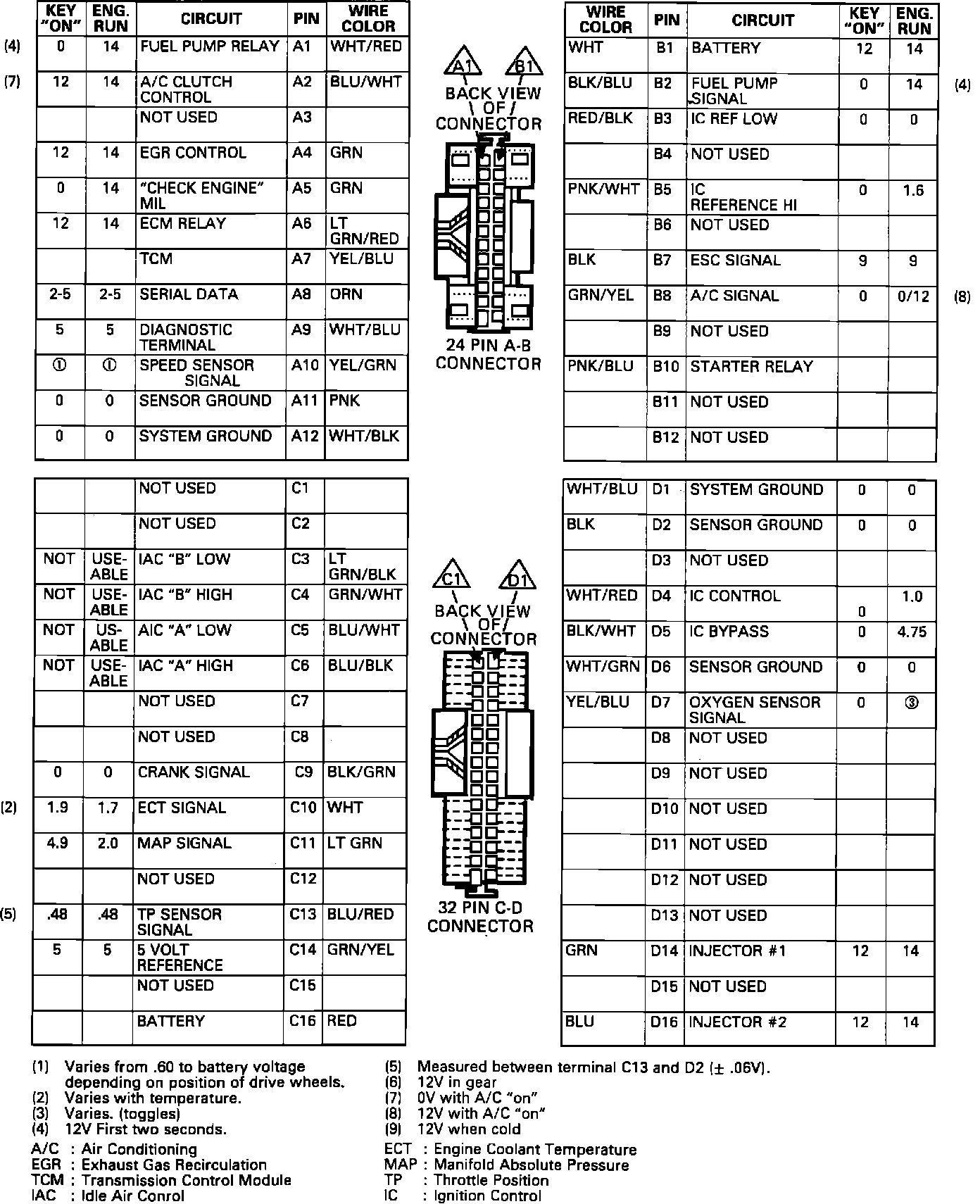

ECM Harness Connector Data:
