Isuzu Truck
>>
1993
>>
Pickup 2WD V6-3137cc 3.1L (CPC)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
Power Distribution Relay: Locations

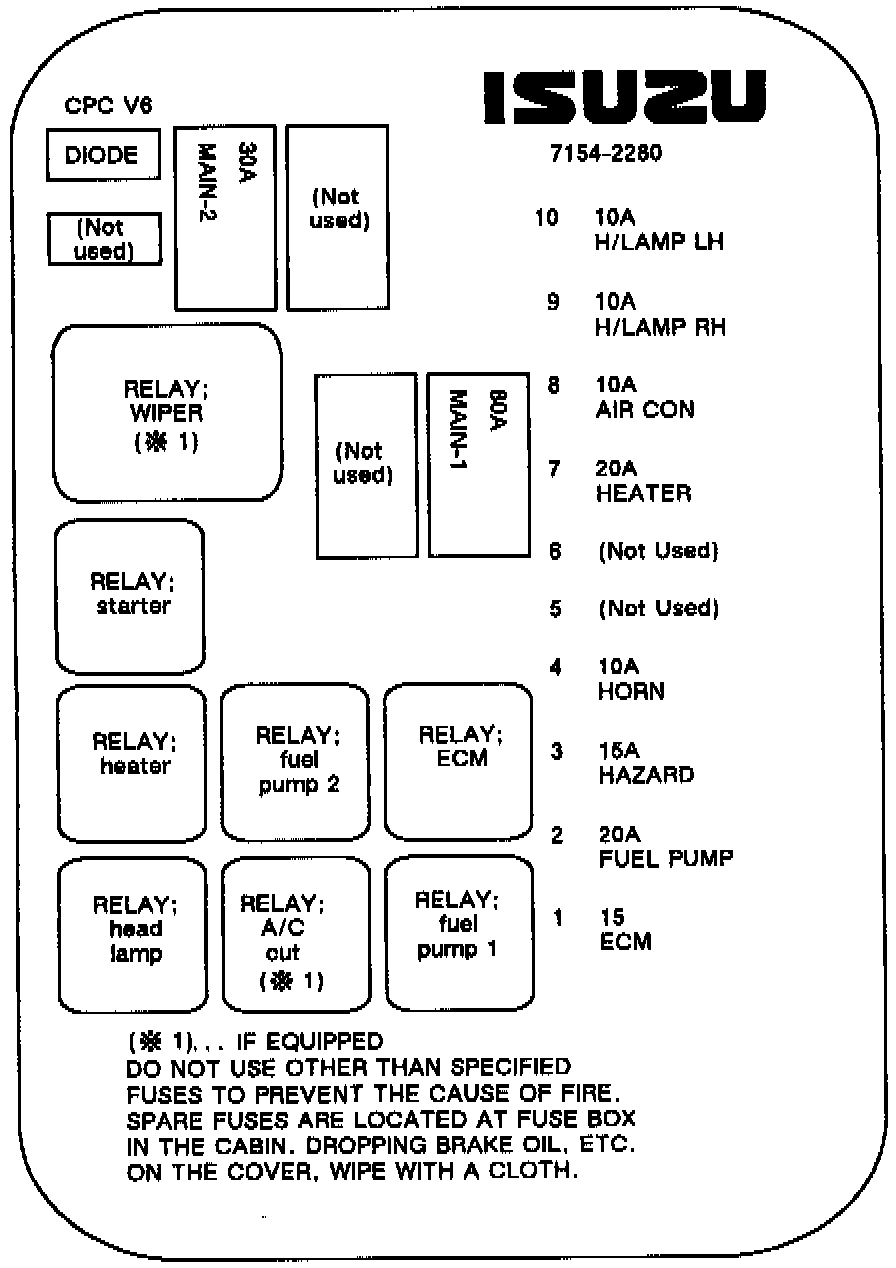

Fuse/Relay Box:
