Electrical Diagrams

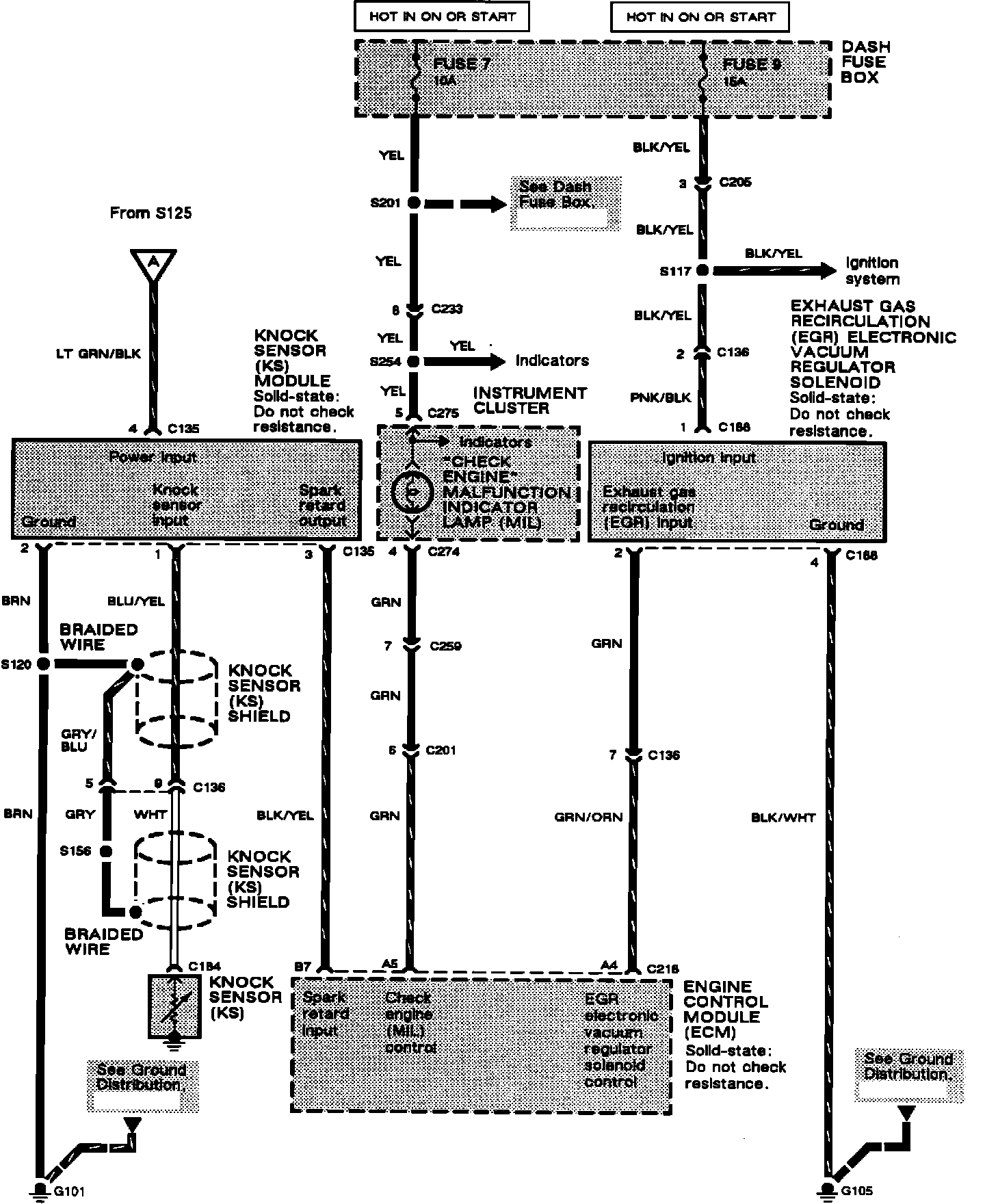

Engine Control Wiring Diagram (1 Of 5):

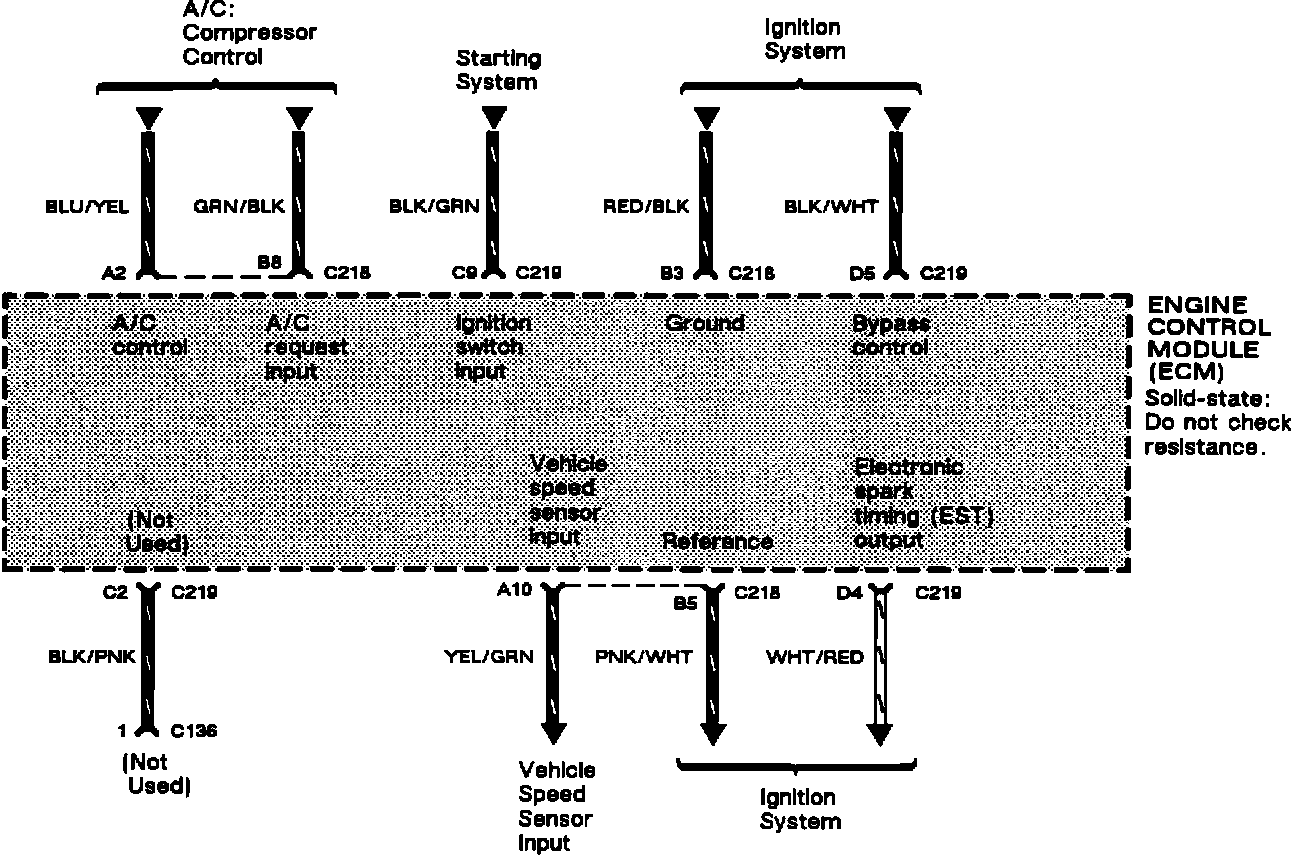

Engine Control Wiring Diagram (2 Of 5):



Engine Control Wiring Diagram (3 Of 5):



Engine Control Wiring Diagram (4 Of 5):



Engine Control Wiring Diagram (5 Of 5):
