A/C Recycling Equipment - Service Valve Operation

BULLETIN NUMBER
SB93-12-004

ISSUE DATE
July 1993

GROUP
AIR CONDITIONING

R-134A A/C SERVICE VALVE OPERATION
(WORKSHOP MANUAL CORRECTION)

AFFECTED VEHICLES

1993-on Trooper (UX), Pickup (TF), Amigo (TC) and Rodeo (UC) models equipped with R-134a air conditioning system.

SERVICE INFORMATION





Operation of the service valve on R-134a A/C refrigerant recovery and recyling equipment is incorrectly described in the Workshop Manual.

The knob at the top of the valve must be turned clockwise to open the service port. Turn knob counter-clockwise to close the port.

NOTE
Valve operation instructions are marked on Kent Moore A/C service equipment. Always check the service equipment manufacturer's operating instructions before use.

SERVICE PROCEDURE

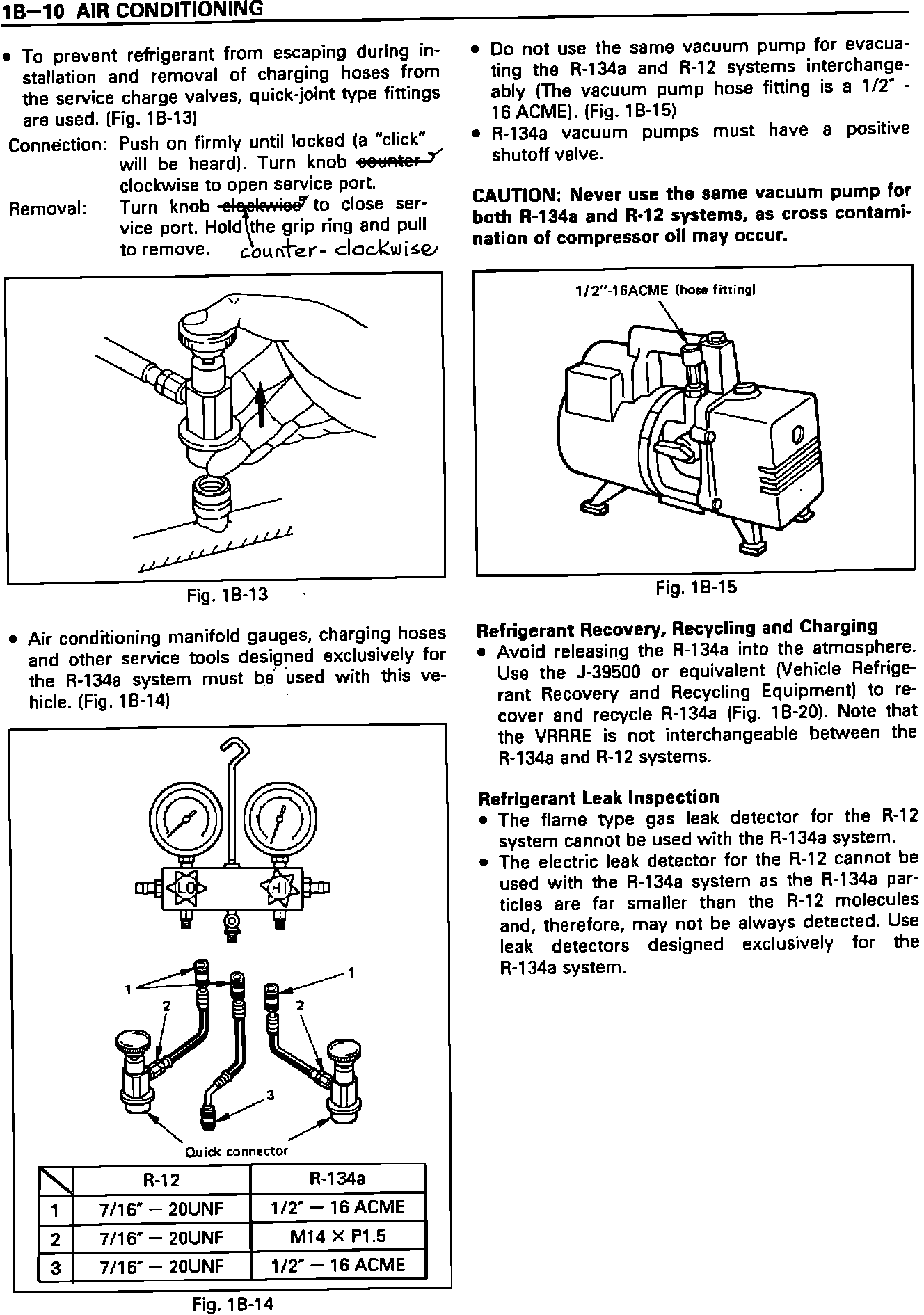

Make the pen-and-ink correction on page 1B-10 of the referenced Workshop Manual.
